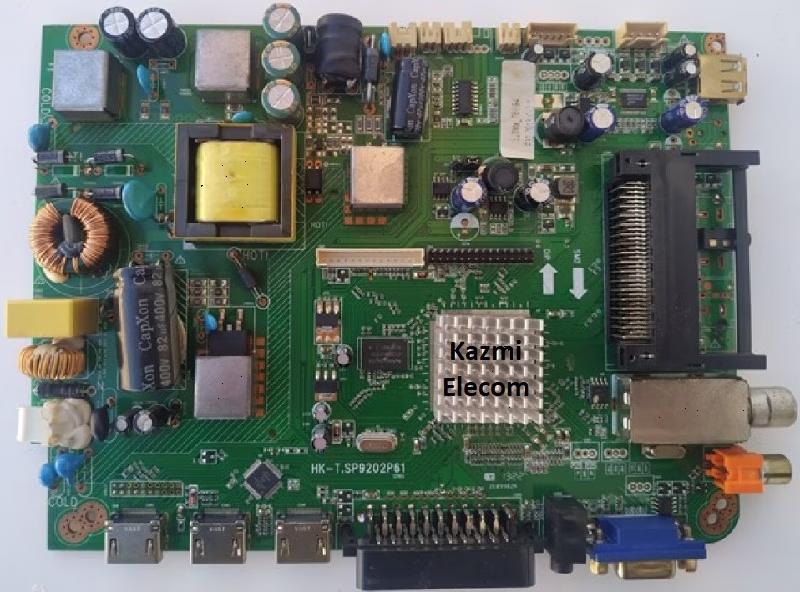

HK-T.SP9202P61 LED TV Board
HK-T.SP9202V02 is a simple ATV&DTV (DVB-T, DVB-C) Driver Motherboard for LCD/LED TVs. This board is suitable for the Asia Pacific and Middle East markets. It is a Three-in-one Combo Board. The main power module, LED Backlight Inverter Circuit module, and TV tuner card are built into this motherboard.
The HK-T.SP9202P61 LCD LED TV board has all connectivity interfaces and features as per the latest requirements, such as three HDMI inputs, USB interface, VGA PC input with Audio, CI+ Interface, RF TV tuner, Coaxial Out and Scart.HK-T.SP9202V02 firmware files are given below for the technician’s support.
Technical Specifications:
Brand/Mark: Universal Board
Model: HK-T-SP9202P61
Main Chip:
Product: LED TV
LED Backlight: mA
Flash IC: 4 Mb
Sound Chip: R2A15122FP
Tuner IC: DVB-T, DVB-C
Screen supported: 26-42 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: AC 220V
Service Code:
Source/Input 2580 or Menu 1147
Note: The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
HK-T.SP9202V02 firmware for free download:
