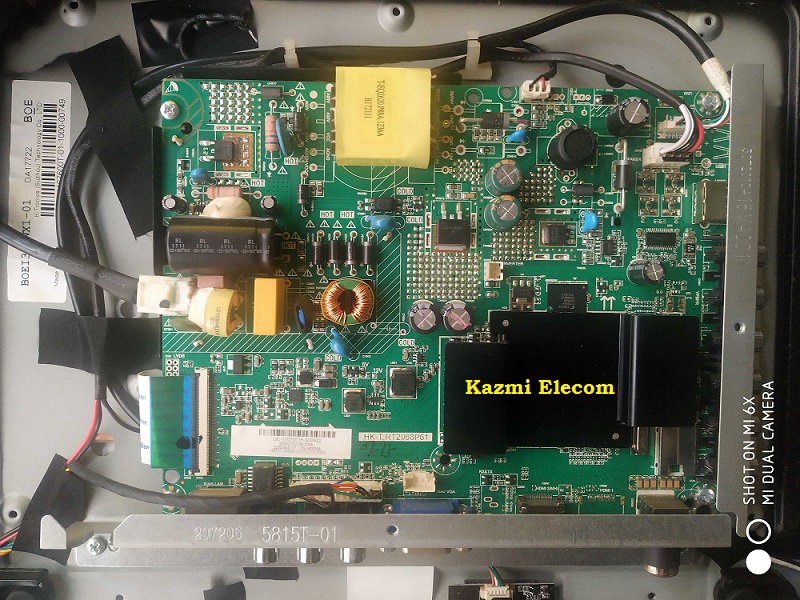

HK-T.RT2968P61 Intelligent Network TV Card
HK-T.RT2968P61 is a smart android Intelligent Network LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 32-46 inches LED panels, with maximum resolution up to 1920*1080. HK_T_RT2986P61 is a three-in-one (combo) board i.e power card, backlight driver module, and ATV board built-in into it. HK-T-RT2986P61 has multiple input interface ports like USB, HDMI, AV, VGA port, and LAN ports for wired internet connectivity. It is also built in a Wireless interface.
HK T RT2986P61 came with some brand LED TVs like FUJICOM FJ-50ST SMART TV, Skyworth 32k3, Haier H32E07, Huike HKC K403, etc. Its USB interface can be used for loading software as well as for playing multimedia files. HK-T.RT2968P61 support analog TV signals, and digital TV (DTMB’s new national standard). HK-T.RT2968P61 firmware file is given below for the technician’s support.
General Specifications:
Model: HK-T.RT2986P61
Main Chipset: VX628B / RT2984D
Resolution Supported: 1920×1080
CPU: Quad-core ARM core processor
OS: Android 4.4
Ram: 512Mb
Rom: 4Gb
Audio Output Power: 2X8 W (8Ω)
Backlight: 30 V to 94 V, 600mA
Backlight Power: 45 W
Service Code: Menu 1147
Mirror Mode: No
Multi-Language: Yes
Firmware File: Install.img
Firmware Type: USB upgradeable Firmware, HK-T.RT2968P61 program data USB
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
HK-T.RT2986P61 Firmware file for Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | HK-T.RT2968P61_Firmware.part1 | Download |
| HK-T.RT2968P61_Firmware.part2 | Download | |
| HK-T.RT2968P61_Firmware.part3 | Download | |
| HK-T.RT2968P61_Firmware.part4 | Download | |
| HK-T.RT2968P61_Firmware.part5 | Download | |
| 2 | HK-T.RT2968P61-ELEKTA-ELED32SMART-EMMC.part1 | Download |
| HK-T.RT2968P61-ELEKTA-ELED32SMART-EMMC.part2 | Download | |
| 3 | HK-T.RT2968P61_1366x768_ELEKTA_Firmware.part1 | Download |
| HK-T.RT2968P61_1366x768_ELEKTA_Firmware.part2 | Download | |
| HK-T.RT2968P61_1366x768_ELEKTA_Firmware.part3 | Download | |
| HK-T.RT2968P61_1366x768_ELEKTA_Firmware.part4 | Download | |
| HK-T.RT2968P61_1366x768_ELEKTA_Firmware.part5 | Download | |
| 4 | HK-T.RT2968P61_1920x1080_Konka_LED43G300.part01 | Download |
| HK-T.RT2968P61_1920x1080_Konka_LED43G300.part02 | Download | |
| HK-T.RT2968P61_1920x1080_Konka_LED43G300.part03 | Download | |
| HK-T.RT2968P61_1920x1080_Konka_LED43G300.part04 | Download | |
| HK-T.RT2968P61_1920x1080_Konka_LED43G300.part05 | Download | |
| 5 | HK-T.RT2968P61_1920x1080_Revolution Galaxy.part01 | Download |
| HK-T.RT2968P61_1920x1080_Revolution Galaxy.part02 | Download | |
| HK-T.RT2968P61_1920x1080_Revolution Galaxy.part03 | Download | |
| HK-T.RT2968P61_1920x1080_Revolution Galaxy.part04 | Download | |
| HK-T.RT2968P61_1920x1080_Revolution Galaxy.part05 | Download | |
| 6 | HK-T.RT2968P61_1366x768_Revolution Galaxy.part1 | Download |
| HK-T.RT2968P61_1366x768_Revolution Galaxy.part2 | Download | |
| HK-T.RT2968P61_1366x768_Revolution Galaxy.part3 | Download | |
| HK-T.RT2968P61_1366x768_Revolution Galaxy.part4 | Download | |
| HK-T.RT2968P61_1366x768_Revolution Galaxy.part5 | Download | |
| 7 | HK-T.RT2968P61_1366x768_Skyworth.part1 | Download |
| HK-T.RT2968P61_1366x768_Skyworth.part2 | Download | |
| HK-T.RT2968P61_1366x768_Skyworth.part3 | Download | |
| HK-T.RT2968P61_1366x768_Skyworth.part4 | Download | |
| HK-T.RT2968P61_1366x768_Skyworth.part5 | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
aoa
sir softwere not instal in led 32smart
im open a file disc immage its load in led now led wieth and back side image show
o now how can i do plz help
hk-t.r2968p61
me samjha nai urdu me bata den
Software load kia tha nhi howa is m say disc image load ho gaya jis say screen white ho gaye or back m image nazar atye han
apne software kia kion kia zarorat thi aur ab jo result hy uski pictuer send karo
Can i need to download all 7
for different brands
link n2 malfunction
due to server maintenance
asalam u alaikum bhai
mene elekta ka software teno serial numbers (1,2,3) se try kya and tamam files download kerne k bad jb me extract kerta hn to setup ki koi bhi file us me nahi milti.
kya aap thora guide kare ge is bare me.
me apne elekta 32″ led tv me software is liye install kerna chahta hn kynki jb me ise on kerta hn to first elekta ki screen show kerne k bad “System starts in” ki screen pe hi stuck ho jata ha aur on/off wali light continuously blink kerti rehti ha and aage process nai kerta.
Me Saudia me rehta hn. aik bar mene market se bhi software kerwaya tha aur tb bhi yehi problem thi lakin sirf 2 months k bad hi phr problem shuru ho gae. yaha market wale software bhi bht expensive sale kerte hain.
me aap k reply ka wait karo ga.
ALLAH HAFIZ
first confirm board number and panel resolution. if same then download all 5 parts and extract then try
My board number is HK-T.RT2968P61
and resolution is 1366X768
asalam u alaikum bhai,
mene same resolution ki files dowload ker li hain aur extract bhi ker lya ha lakin ab ye nai pata k us me se konsi software ki file ko usb me copy kerna ha.
kya aap btae ge k software wali file ka exact name kya ha take me extract kerne k bad sirf usi file ko usb me copy ker lon.
aur bhai ab ise smart tv me install kese kerna ha uski video ka bhi link bhej dain take me use follow ker k software ko install ker lon.
me aap k jald reply ka wait karo ga. IN SHAA ALLAH
ALLAH HAFIZ
videos me ja k dekh len
Hello, the part2 is invalid. It,s possible to solve ??
Noted. you can download from Link2
my board version hktrt2986p61 cant support bin file if i enter img file its install but its cant work proper??
I download all part nd extract and copy in my empty usb also
but tv cant support this file.
in your discription you say its need img file firmware.
tell me what can i do sir for install bin file in my tv??
I also watch your video and work according to it.
this board firmware named with install.img not bin. why you want to load??
Hola instalo el software en un tv xenón con la placa kh t RT2968P61 pero noe funciona luego el control remoto puede ayudarme en eso? Gracias
use universal remote control
Salam sir elekta firmware part 5 download nahi horah tori rahnumai karein thanks
try again .link working
Sir part5 download nah I Horan file not found likta hai
Noted.
Always mention serial number for missing file/part
hi .HK-T.RT2968P61_1366x768_ELEKTA_Firmware.part5.rar error extract
read error or mention here
! F:\HK-T.RT2968P61_1366x768_ELEKTA_Firmware\HK-T.RT2968P61_1366x768_ELEKTA_Firmware.part5.rar: Unexpected end of archive
download again
hi . can help me please .for part 5 . thanks
fixed
como lo puedo cambiar de region, gracias
HK.T.RT2874P839
