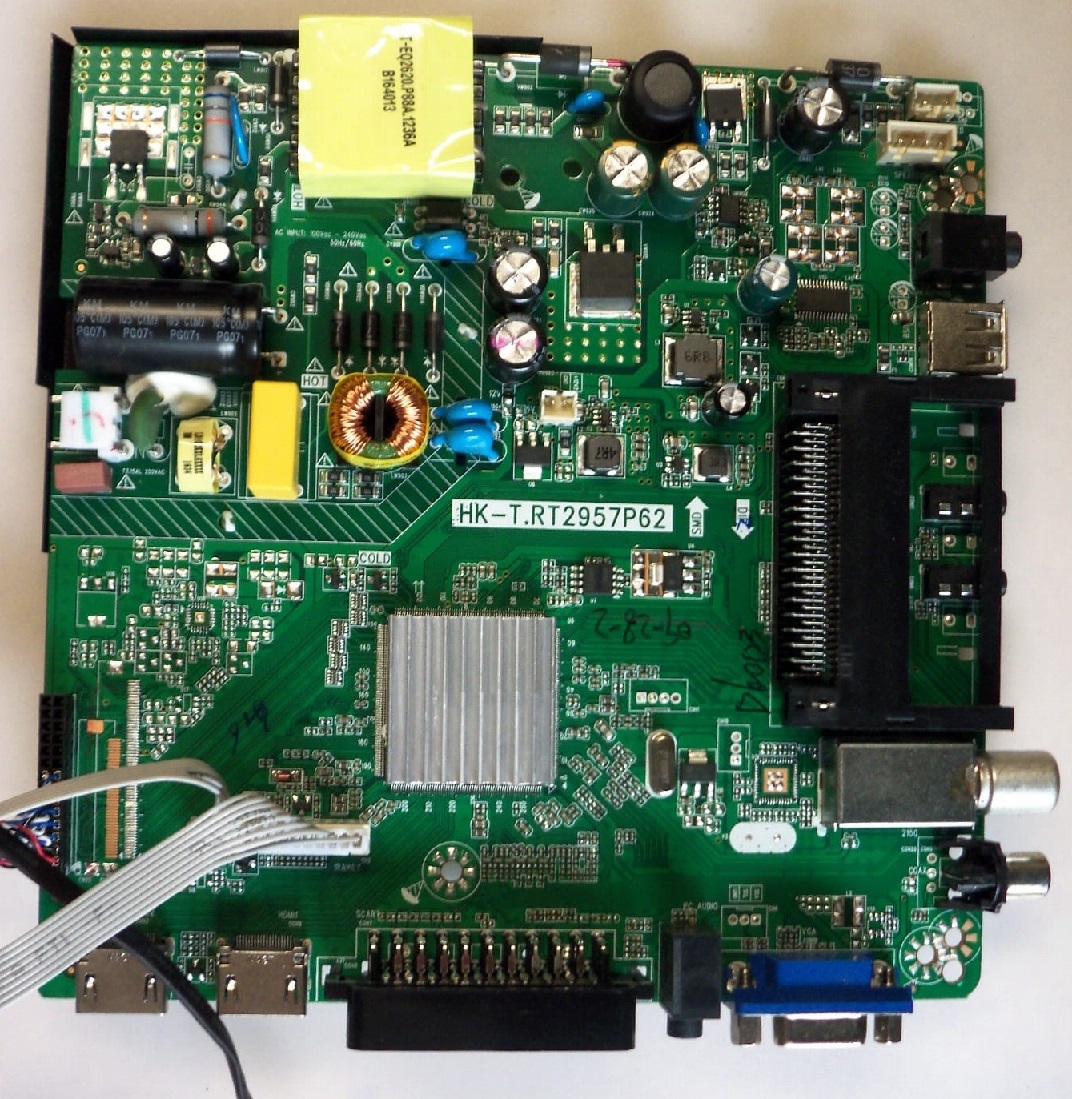

HK-T.RT2957P62 LED TV Board
HK-T.RT2957P62 is a non-smart LCD/LED TV Driver Board. It is suitable for the LVDS interface and supports more than 32-42 inches LED panels, with maximum resolution up to 1920×1080. HK_T_RT2957P62 is a three-in-one (combo) board i.e power card, backlight driver module, and TV Module are placed in a single PCB for this. HK-T-RT2957P62 has multiple input interface ports like USB, HDMI, AV, VGA port, Scart. Its USB interface can be used for loading software as well as for playing multimedia files. HK-T.RT2957P62 supports analog TV signals, digital TV (DVB-T/C MPEG4). HK-T.RT2957P62 firmware file is given below for the technician’s support.
General Specifications:
Model: HK-T.RT2957P62
Main Chipset: RT29
Resolution Supported: 1920×1080
CPU:
OS: Non-Smart
Ram:
Rom:
Audio Output Power: 2X8 W (8Ω)
Backlight: N/A
Backlight Power: N/A
Service Code: Source 2580
Mirror Mode: No
Multi-Language: Yes
Firmware File: Install.img
Product User: Prisma Pro, Westinghouse, Manta etc
Firmware Type: USB upgradeable Firmware
Note: The following software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download HK-T-RT2957P62 Firmware File:
Download all parts of the following firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
HK-T.RT2957P62 Firmware file for Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | HK-T.RT2957P62_1366x768_PRISMAPRO_FLIP_USB | Download |
| 2 | HK-T.RT2957P62_1366x768_PRISMAPRO_Normal_USB | Download |
| 3 | HK-T.RT2957P62_1366x768_WESTINGHOUSE_FLIP_USB | Download |
| 4 | HK-T.RT2957P62_1366x768_WESTINGHOUSE_Normal_USB | Download |
| 5 | HK-T.RT2957P62_FUEGO FJ32LED_Dump | Download |
| 6 | HK-T.RT2957P62_MANTA LED3204_Dump | Download |
| 7 | HK-T.RT2957P62_POLAROID TQL32R4PRO11.133_Dump | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
