HK-T.RT2957P60 Firmware Free Download

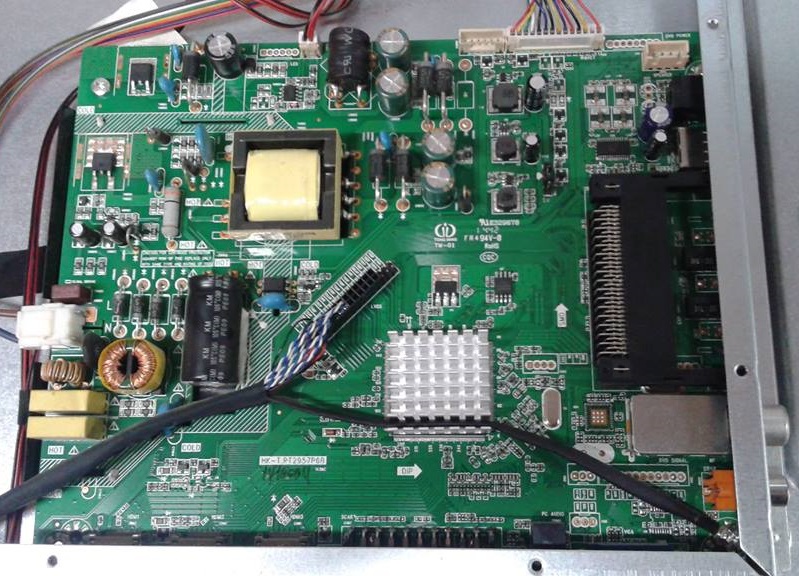

HK-T.RT2957P60 TV Driver Board

HK-T.RT2957P60 is a non-smart LCD/LED TV Driver Board. It is suitable for the LVDS interface and supports more than 28-42 inches LED panels, with a maximum resolution of up to 1920×1080. HK_T_RT2957P60 is a three-in-one (combo) board i.e power card, backlight driver module, and TV Module are placed in a single PCB for this. HK-T-RT2957P60 has multiple input interface ports like USB, HDMI, AV, VGA port, and Scart. Its USB interface can be used for loading software as well as for playing multimedia files. HK-T.RT2957P60 supports analog TV signals, and digital TV (DVB-T/C MPEG4). HK-T.RT2957P60 firmware file is given below for the technician’s support.

General Specifications:

Model: HK-T.RT2957P60

Main Chipset: RTD2957

Resolution Supported: 1920×1080

CPU:

OS: Non-Smart

Ram: NA

Rom: 25Q64 SPI Memory (8 MBit)

Audio Output Power: 2X8 W (8Ω)

Backlight: 49-94V

Backlight Power: 300-350mA

Service Code: Source 2580

Mirror Mode: No

Multi-Language: Yes

Firmware File: Install.img

Product User: SUPRA, PRISMAPRO, MANTA, INFINITON, SAMSOUND, etc

Firmware Type: USB upgradeable Firmware

Note: The following software/firmware is a backup dump. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware File:

Download all parts of the following firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

HK-T.RT2957P60 Firmware file for Free Download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	HK-T.RT2957P60_1366x768_SAMSOUND M1032_Dump	Download
2	HK-T.RT2957P60_1920x1080_SUPRA STV-LC42T910FL_Dump	Download
3	HK-T.RT2957P60_INFINITON_INTV-3215_Dump	Download
4	HK-T.RT2957P60_MANTA LED 2802_Dump	Download
5	HK-T.RT2957P60_PRISMAPRO BC-3218_Dump	Download
6	HK-T.RT2957P60_PRISMAPRO T42D80_Dump	Download
7	HK-T.RT2957P60_SD_1366x768_USB_Firmware	Download
8	HK-T.RT2957P60_SUPRA STV-LC40T910FL_Dump	Download

For video tutorials, visit “Kazmi Elecom” my youtube channel.
