HK.T.RT2871V09 Firmware Free Download

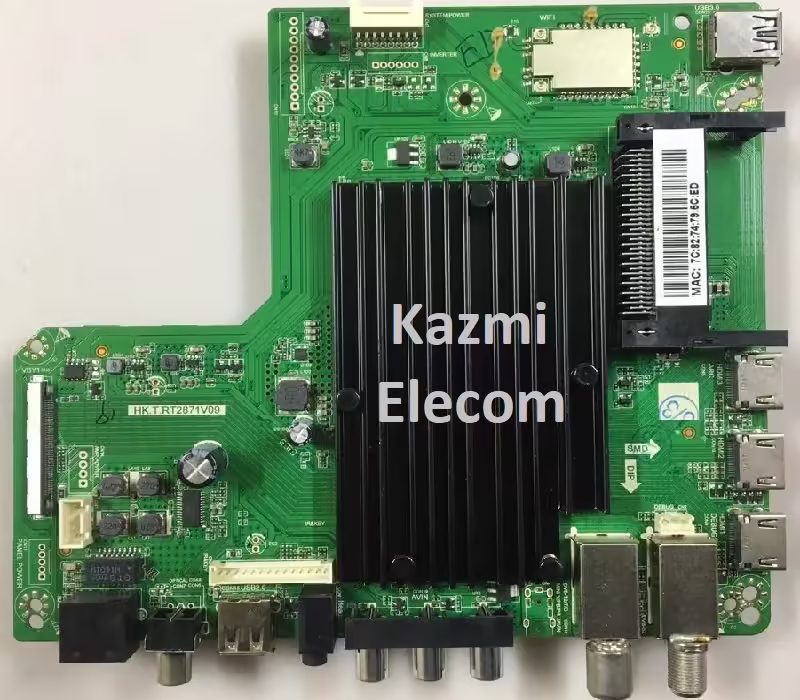

HK.T.RT2871V09 UHD Smart Board

HK.T.RT2871V09 is a smart non-combo Android Intelligent Network LCD LED TV Board. It is suitable for the LVDS interface and supports more than 43-65-inch LED panels, with a maximum resolution of up to 3840×2160 Ultra High Definition. HK_T_RT2871V09 is a Non-combo board, i.e., the main power card for input supply and backlight driver module will be required separately while cable TV tuners are built in.

Download Here

HK-T-RT2871V09 has multiple input interface ports, such as USB, CI+, HDMI, AV, Coaxial, and LAN ports for wired internet connectivity. It is also built with a wireless interface. HK T RT2871V09 came with some brand LED TVs, such as Vivax, HI, Novex, Hyundai LED TV, etc. Its USB interface can be used for loading software and playing multimedia files. HK.T.RT2871V09 supports both analog and digital TV signal reception.

HK.T.RT2871V09 General Information:

Board Model: HK.T.RT2871V09 Ultra HD Smart Android 4K

Main Chipset: RTD2861RDZ

CPU: Quad-Core (A53*4)

GPU: Mali-450

Android Version: Android 9.0

Resolution: 3840×2160

Audio Power: 2x10W (20 watt 8 ohm)

Backlight Volt: NA

Backlight Current: NA

Backlight Power: NA

USB Ports: 2

HDMI Ports: 3

CI: Yes

Component: Yes

RJ45: Yes

Tuner: ATV and DTV

Wifi: Yes

Mira-Cast: Yes

Bluetooth: NA

Memory (RAM): 1.5 GB DRAM

Storage (ROM): 8 GB EMMC Flash

Power Rating: DC 12V

Power Consumption: 105Watt

Firmware Name: Install.img

Firmware Type: EMMC Backup Dump & USB Bootable

Product User: Hyundai, Novex, HI, Vivax

HK.T.RT2871V09 Technical Specifications:

Resolution 4K UHD 2160P 3840×2160
HD support HD
LED backlight DLEDD
Response time 8 ms
Display scale 16:09
Stereo sound there is / there is
Matrix type LED
Refresh rate 60 Hz
Processor frame 64-bit ARM Cortex-A53 Quad-Core
GPU Mali-450 MP3
OS version 9.0 Android
RAM (DRAM) 1.5GB
ROM (Flash) 16GB
WIFI 2.4GHz / 5GHz
HDMI 2.0 (HDCP 2.2) 2
HDMI CEC (T-link) Full
Caption (Subtitle) Yes
Game mode Yes
Bluetooth SBC / 4.2
Sleep Timer Yes
HDMI quick switch Yes
DLNA 1.5 Yes
USB HID support Yes
USB channel list clone Yes
USB 2.0 2
Teletext there is
ATV PAL/NTSC
Sound power 10w+10w
Acoustic system Buffer speakers
DOLBY DIGITAL there is
Supported formats MP3, WMA, MPEG4, MKV, JPEG
Built-in Receiver No
Bluetooth NA
Social Yes (YouTube, Netflix)
Processor Quad Core
Smart Apps Netflix, YouTube
SmartTV

How to Write HK.T.RT2871V09 EMMC Backup:

Download the given HK.T.RT2871V09 EMMC backup is shared in this post below

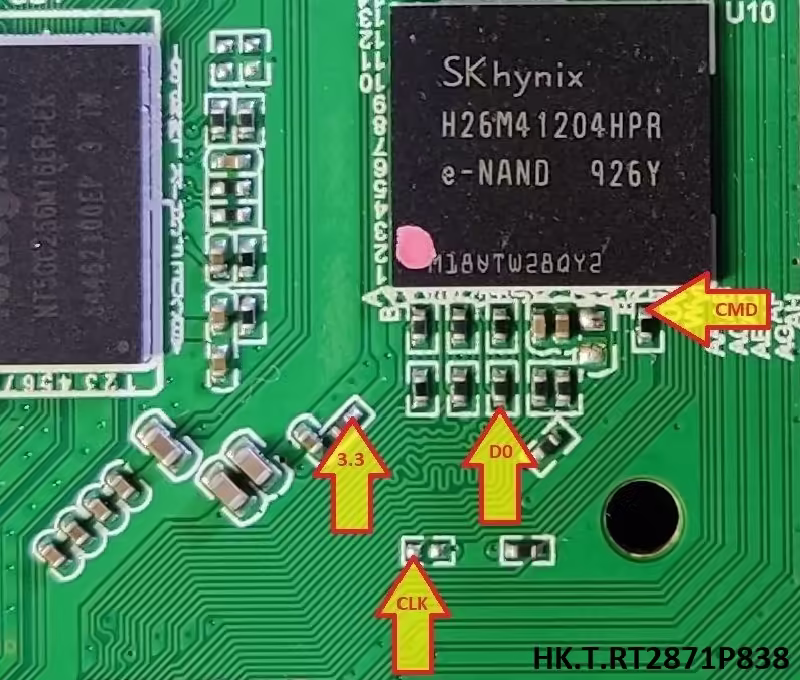

Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

How to Install HK.T.RT2871V09 Firmware by USB:

a) Switch off the TV completely from the power source
b) Transfer the required firmware file (Install.img) directly to the root of the Empty FAT32 USB disk
c) Press and hold the POWER key on the side keyboard of the TV and insert the power cord into the main power
d) Wait for 10 seconds until the blue screen lights up with the firmware update status. Now release the POWER key. Wait for the TV to turn off.
e) Turn on the TV and patiently wait until it is fully loaded onto the Home Screen.
d) Now reset the TV to factory settings default.

Note: The following HK.T.RT2871V09 firmware is USB bootable and EMMC backup dump file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files or are facing any issues during firmware installation, then visit and read here first.
