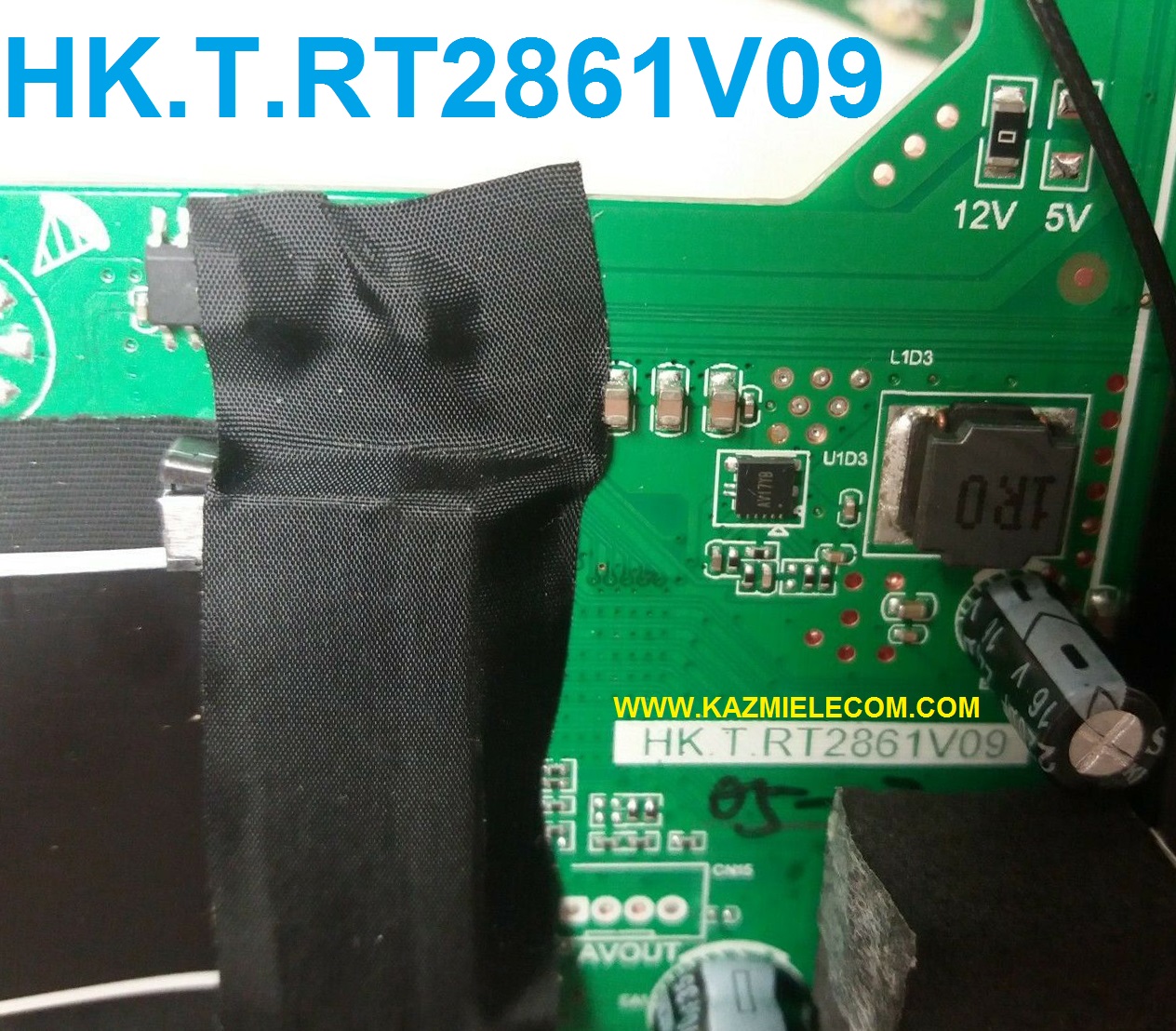

HK.T.RT2861V09 Firmware Free Download

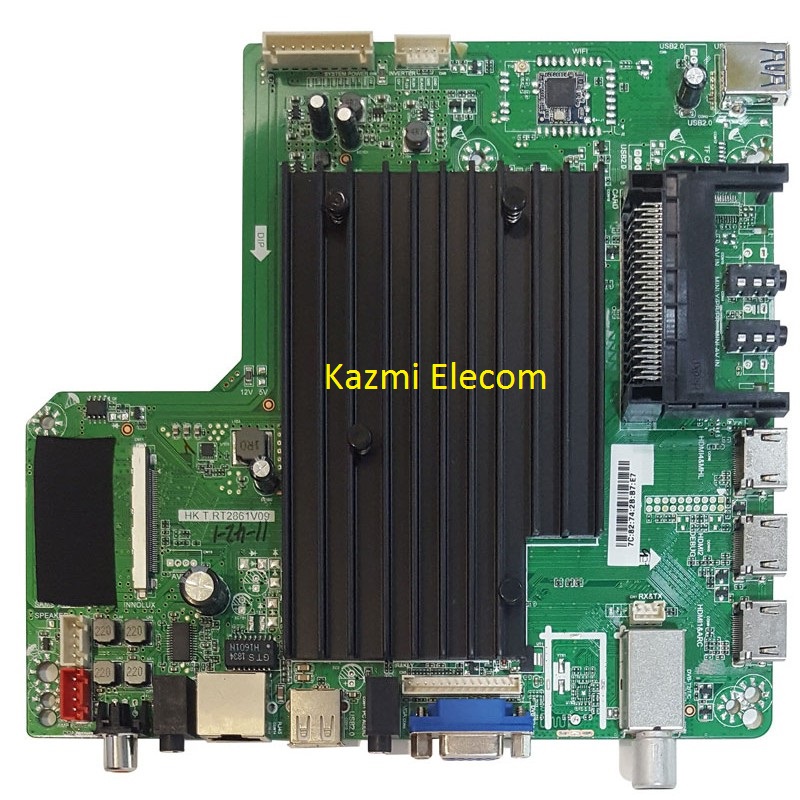

HK.T.RT2861V09 4K Smart Board

HK.T.RT2861V09 is an LCD/LED TV controller board. That’s a digital and analog TV control board, which is suitable for Australia, Southeast Asia, MIDE, and Africa in the DVB T2 / DVBT market. It is designed to apply the V-by-one as the interface. which can support LED panels larger than 28 ” with a resolution is up to 3840×2160.

HK_T_ RT2861V09X is intended to support the analog TV signal, Digital TV, NICAM / A2, USB (3.0 and 2.0), HDMI (V2.0), PC-RGB, CVBS, TF CARD, and YPbPr as well Coaxial output. An audio amplifier that can support 2X8W speaker output. The program has a built-in Cortex A53 ARM quad-core CPU main chip and Android7.1 OS, Also supports wired and wireless network connections, so you can browse the web internet and play online videos. The HK-T-RT2861V09 firmware file is given below for the technician’s support.

General Specifications:

Make: Realtek

Model: HK.T.RT2861V09

Main Chipset: RTD2861RUA

Resolution Supported: 3840×2160

OS: Android 7.1.1

RAM: 1G,1.5G, 2G

ROM: 8Gb, 16Gb

EMMC Chipset: THGBMHG7C1LBAIL

CPU: A53*4

GPU: IMG7800

Audio Output Power: 2X10 W (8Ω)

Backlight: 135-162v/500ma

Tuner: DVB-T/T2

Service Code: 2580

Firmware File: Install.img

Firmware Type: USB Upgradeable, HK.T.RT2861V09 Program

Firmware Files:

1. 212_2861V09_1G_8G_SQY_SKD111305-18_D65RWB714- the U-T2S2-S_HV650UQB-N90_VIVAX_Croatia_190219_122031_svn19195
2. 229_2861V09_1.5G_8G_SQY_SKD12240818_JE0DZ1C0398_Poland_MANTA_190220_173031_svn19169
3. A7-RTD2861V09_UA_40UR50GU_LSC400FN05-8_1.5G_8G_T2_IMG_200903_115229_svn26847
4. A7_RTD2861V09_UA_49UP50GU_LSC490FN02_2G_16G_T2_IMG_200904_191756_svn26852

Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. For more Detail about the download process watch the video Click Here

HK.T.RT2861V09 Firmware files for Free Download:

• HK-T.RT2861V09-3840×2160-1G-8G-VIVAX-USB.part1
• HK-T.RT2861V09-3840×2160-1G-8G-VIVAX-USB.part2
• HK-T.RT2861V09-3840×2160-1.5G-8G-Kivi 40UR50GU-USB.part1
• HK-T.RT2861V09-3840×2160-1.5G-8G-Kivi 40UR50GU-USB.part2
• HK-T.RT2861V09_3840x2160_2G_16G_Kivi 49UP50GU-USB.part1
• HK-T.RT2861V09_3840x2160_2G_16G_Kivi 49UP50GU-USB.part2
• HK-T.RT2861V09-3840×2160-8G-Manta 60LUA19S-USB.part1
• HK-T.RT2861V09-3840×2160-8G-Manta 60LUA19S-USB.part2
