HK.T.RT2861P839 Firmware Free Download

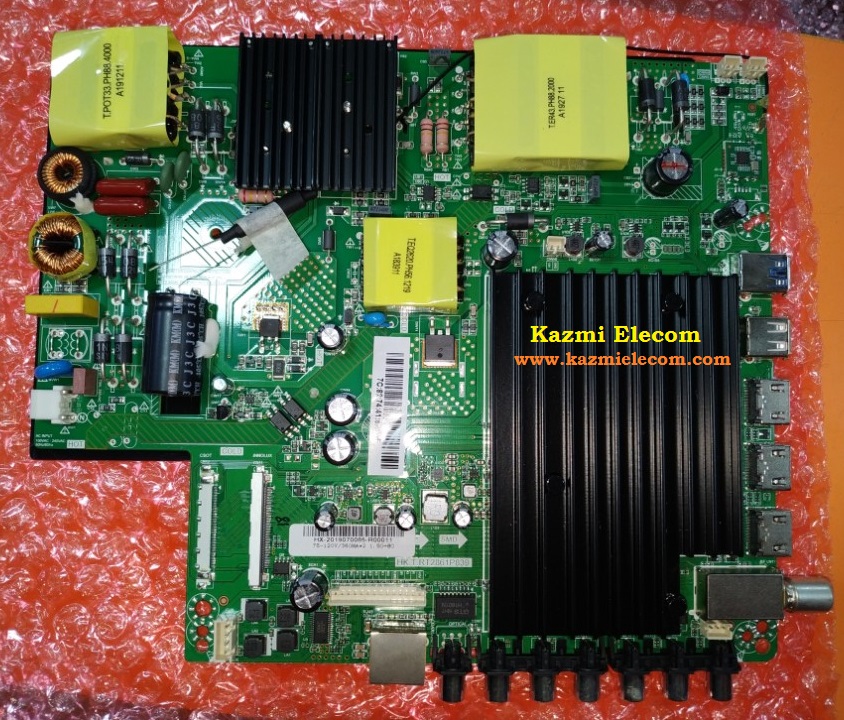

HK.T.RT2861P839 4K Smart Board

HK.T.RT2861P839 is a DVB-T2 4K Digital Internet TV 3-in-1 LCD/LED TV motherboard. It is suitable for the LVDS interface and supports more than 65 inches of LED panels, with a maximum resolution of up to 3840×2160. HK_T_RT2861P839 is a three-in-one (combo) board i.e. power card, backlight driver module, and ATV board built into it. HK-T-RT2861P839 has all connectivity interfaces as per the latest user requirements such as multi HDMI input ports, RCA input, USB2.0 & USB3.0 inputs, VGA interface for computer connectivity, and RF tuner.

HK T RT2861P839 is a universal board but is also installed in different LED TV brands. Some of them are Echolink, Clever TV, and Magic LED TV, etc. Realtek processor is used in this motherboard that’s why its graphic quality is very excellent. Its USB interface can be used for loading software as well as for playing multimedia files. HK-T-RT2861P839 can receive Digital TV (DTV) signal broadcasting and analog TV signals as well. HK.T.RT2861P839 software is shared below for the support of technicians.

General Specifications:

Model: HK.T.RT2861P839

Main Chipset: RTK2861

Resolution Supported: 3840×2160

OS: Android 7.1.1

RAM: 1.5G

ROM: 4G/8G

CPU: A53*4

GPU: IMG7800

Audio Output Power: 2X10 W (8Ω)

Tuner: DVB-T/T2

Service Code: 2580

Firmware File: Install.img

Firmware Type: USB Upgradeable

Caution:

All the pictures and specification details related to HK.T.RT2861P839 in this post are for reference only. If you are a user and do not have any repair experience, it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different based on the visual observations. So, please do not try it at home. If the LED TV is slow then reset it to Factory Default only.

Pros:

There are many advantages to installing the given HK.T.RT2861P839 USB software or eMMC backup dump file. A few benefits are described below:

• The dead board can be recovered and operational by loading the given USB software or EMMC backup file
• Remote and Logo may change at your own choice to satisfy the customer
• Money saving instead of changing the mainboard
• Time-saving instead of arranging a new board
• Customer satisfaction to do an urgent job
• Skill and confidence improvement

Cons:

There may be some disadvantages to installing the given HK.T.RT2861P839 USB software or backup dump file. But it depends on the technician or user, as per his understanding. A few drawbacks are described below:

• The working board may go to the standby position
• Remote Control may not work and the Logo may change by writing the given software
• Panel screen parameters may be changed

HK.T.RT2861P839 Android Version Upgrade:

Please note that the installed version in this board is the final version and the Android version is not updateable. So, no need to upgrade the software if the board is working normally. Only if, the default software malfunctions due to some bugs will the manufacturer provide the software update. Otherwise, no version update is issued.

HK.T.RT2861P839 Board Replacement:

If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications, the newest Android version, and the latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.

Note: The following firmware is a USB bootable and EMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

How to Download:

Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

HK.T.RT2861P839 Firmware files for Free Download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	HK.T.RT2861P839_3840x2160_1.5G_4G_Clever55.part1	Download
	HK.T.RT2861P839_3840x2160_1.5G_4G_Clever55.part2	Download
	HK.T.RT2861P839_3840x2160_1.5G_4G_Clever55.part3	Download
	HK.T.RT2861P839_3840x2160_1.5G_4G_Clever55.part4	Download
	HK.T.RT2861P839_3840x2160_1.5G_4G_Clever55.part5	Download
2	HK.T.RT2861P839-3840x2160-1.5G-4G-MAGIC-55&58-Y.part1	Download
	HK.T.RT2861P839-3840x2160-1.5G-4G-MAGIC-55&58-Y.part2	Download
3	HK.T.RT2861P839-3840x2160-1.5G-8G-Echolink-55-Update.part1	Download
	HK.T.RT2861P839-3840x2160-1.5G-8G-Echolink-55-Update.part2	Download
4	HK.T.RT2861P839-3840x2160-1.5G-8G-Echolink 65-Smart.part1	Download
	HK.T.RT2861P839-3840x2160-1.5G-8G-Echolink 65-Smart.part2	Download

Firmware Name:

200_YiMao_2861P839_1.5G_4G__ST5461D07-1_Iraq_190110_112456_svn18450

218_2861P839_1.5G_4G_YiMao_YM2018405_Iraq_190508_165005_svn21112
