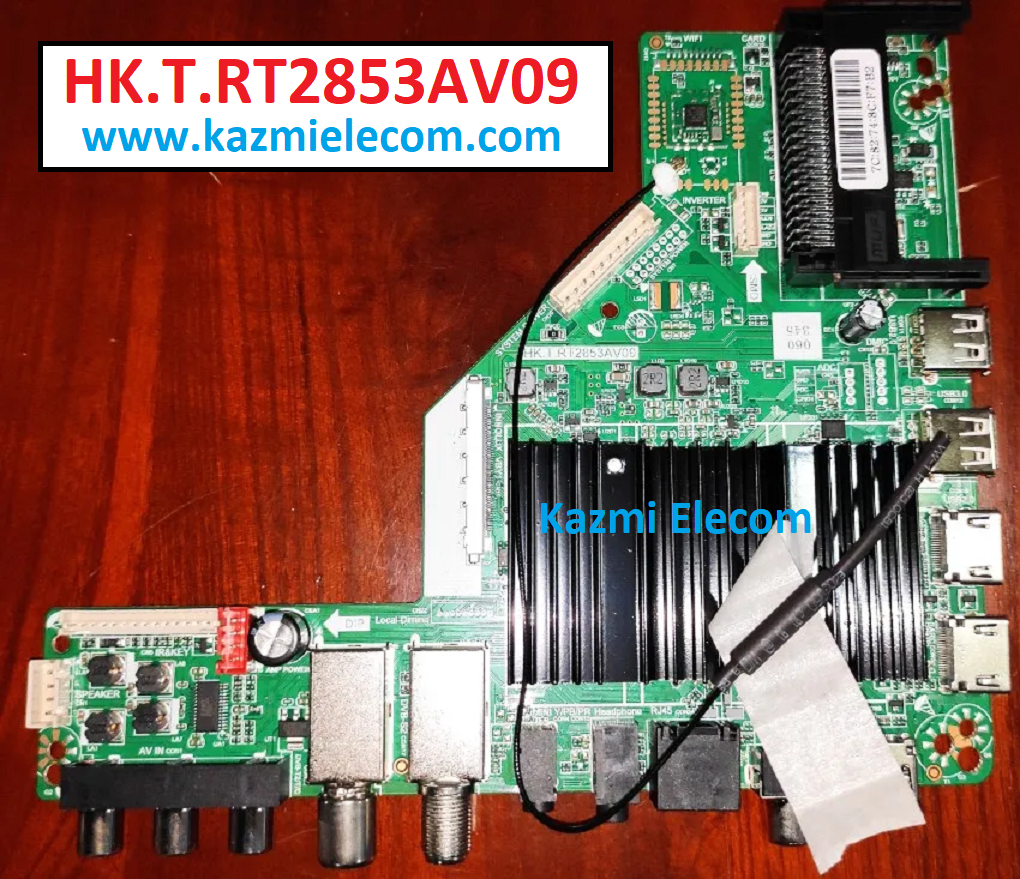

HK.T.RT2853AV09 4K LED TV Board
HK.T.RT2853AV09 is an Ultra HD smart Android Intelligent Network DVB LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 42-65 inches LED panels, with a maximum resolution of up to 3840×2160. HK_T_RT2853AV09 is a non-combo board. A separate power board and backlight driver module will be required for a complete LED TV setup. HK-T-RT2853AV09 has multiple input interface ports like USB, HDMI, AV, Scart, and LAN ports for wired internet connectivity. It is also built in a Wireless interface.
HK T RT2853AV09 came with some non-brand LED TVs. Its USB interface can be used for loading software as well as for playing multimedia files. HK.T.RT2853AV09 support analog TV signals, and digital TV. The HK.T.RT2853AV09 firmware file is given below for the technician’s support.
General Specifications:
Model: HK.T.RT2853AV09
Main Chipset: RTD2853
Display Format: 4K
Screen Resolution: 3840×2160
CPU: Cortex-A55 Quad-Core
GPU: IMG7800
OS: Android
Ram: 1.5/2 Gb
Rom: 8/16 Gb
Audio Output Power: 2X10 W (8Ω)
Backlight: N/A
Backlight Power: N/A
Service Code: 2580
Firmware File:install_2853.img
Firmware Type: USB upgradeable Firmware
Product User: India
Note: The following software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download HK-T-RT2853AV09 Firmware files:
Download all parts of the following firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
HK.T.RT2853AV09 Firmware file for Free Download:
- HK-T.RT2853AV09 3840x2160_2G_16G_INDIA.part1
- HK-T.RT2853AV09 3840x2160_2G_16G_INDIA.part2
- HK-T.RT2853AV09 3840x2160_2G_16G_INDIA.part3
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
Do you know how to get this board into recovery mode please I have the usb set up but cannot figure out the correct button combination
https://www.kazmielecom.tech/how-to-reset-smart-tv/
which is the name of the emmc flash tool i see people using for realtek on youtube. or where can i find it please
how to install from usb? all button combos do not work for me thanks for upload
https://www.kazmielecom.tech/how-to-load-firmware/
On the uk version “hiya”
firmware can only be installed
from the service menu :menu 1147:
Do you have any other remote control configs for this firmware please
No
do youy have another link to donwload ,as i press to donwload and sends me to milions of pages but not to download it
use ad blocker
