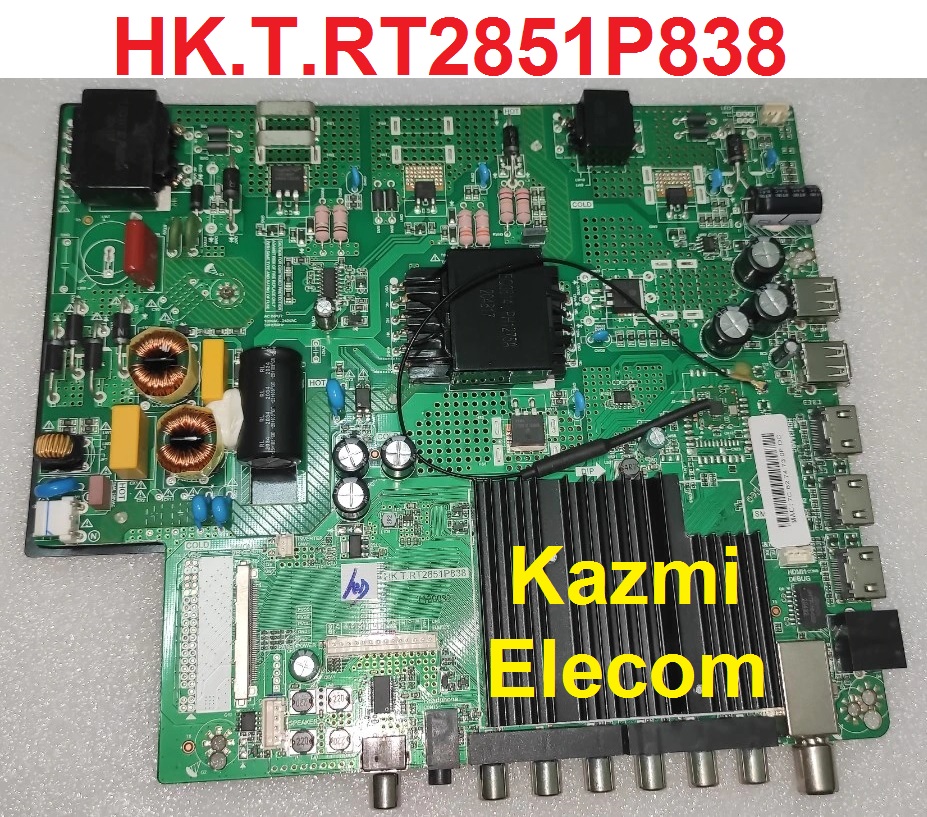

HK.T.RT2851P838 Smart Android Board
HK.T.RT2851P838 is a smart android UHD Intelligent Network LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 50-65 inches of LED panels, with a maximum resolution of up to 3840×2160. HK_T_RT2851P838 is a three-in-one (combo) board i.e power card, backlight driver module, and ATV board builtin in it. HK-T-RT2851P838 has multiple input interface ports like USB, HDMI, AV, Scart port, and LAN port for wired internet connectivity. It is also built in a Wireless interface.
HK T RT2851P838 came with some brand LED TVs like AKAI LED TV Erisson, TD System, etc. Its USB interface can be used for loading software as well as for playing multimedia files. HK_T.RT2851P838 supports analog TV signals, and digital TV (DTT T2). HK.T.RT2851P838 firmware file is given below for the technician’s support. If you are facing any issues during firmware installation then visit and read here first.
General Specifications:
Model: HK.T.RT2851P838
Main Chipset: RT285x
Resolution Supported: 3840×2160
CPU: Quad-core ARM core processor A53
GPU: Dual Core
OS: Android 9.0
Ram: 1.5 G
Rom: 8G
Audio Output Power: 2X10 W (8Ω)
Tuner: DVB-T
Backlight: 90-135v-170v
Backlight Power: 600 mA
Service Code:
Firmware File: install_2851.img
Firmware Type: USB upgradeable Firmware
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware.
How to Download HK.T.RT2851P838 Firmware Files:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
HK.T.RT2851P838 Firmware file for Free Download:
- HK_T_RT2851P838_3840x2160_8G_HIKEEN.part1
- HK_T_RT2851P838_3840x2160_8G_HIKEEN.part2
- HK_T_RT2851P838_3840x2160_8G_HIKEEN.part3
For video tutorials, visit “Kazmi Elecom” my youtube channel.
Tengo una TV Telefunken modelo 4ktñf50d con la misma placa y con problemas de firmware, este me sirve?
This is for the Hikeen brand. if specifications are the same then it will work but the remote and logo may change
EMMC pinout please for HK.T.RT2851P838
NA
how i start the upgrade when tv only flash red led ?
hardware fault or board is dead due to wrong software faulty emmc
i cannot find the bin file i tried so many times plz help
REALTEK BOARD HAVE IMAGE FILE NOT BIN
which img file should i put in the usb
Perhaps do you have the manual . Like eléctrico circuit. Thanks un Advance
No
Can i use this file for emmc with programer ? or just for usb upgrade?
usb bootable
