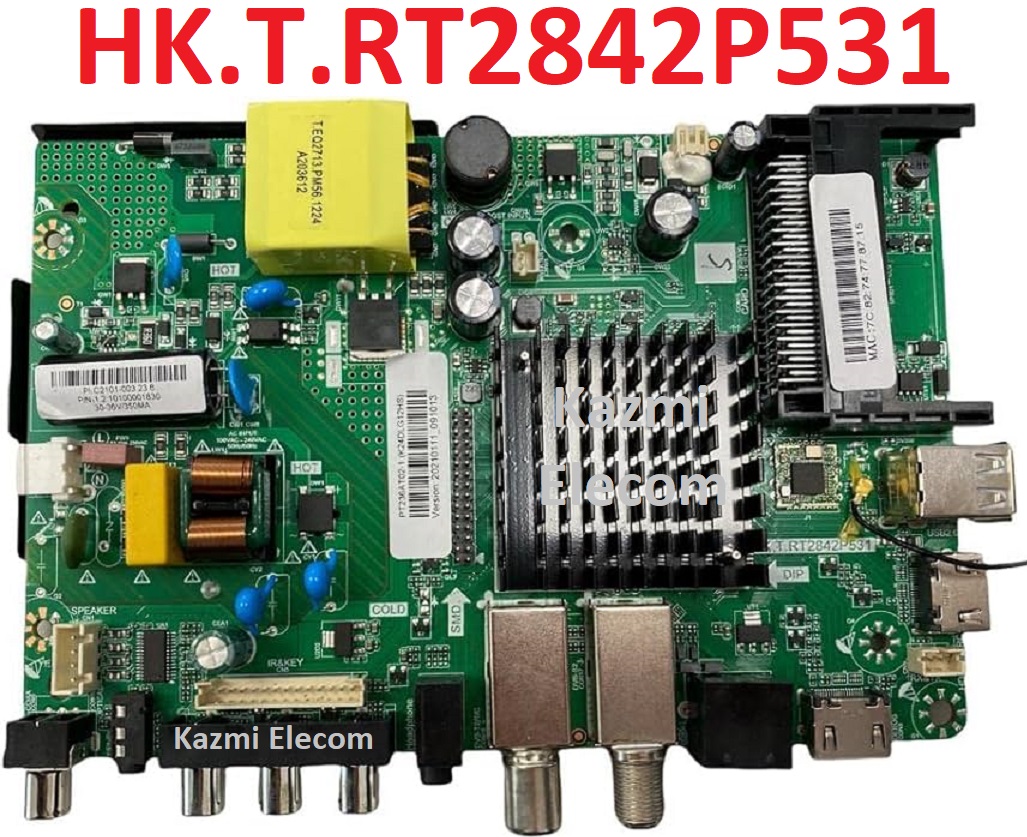

HK.T.RT2842P531 Android Smart Board
HK.T.RT2842P531 is a smart Android Intelligent Network LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 24-32 inches LED panels, with a maximum resolution of up to 1920×1080. HK_T_RT2842P531 is a three-in-one (combo) board i.e. power card, backlight driver module, and ATV board builtin in it. HK-T-RT2842P531 has multiple input interface ports like USB, HDMI, AV, Scart port, and LAN port for wired internet connectivity. It is also built in a Wireless interface.
HK T RT2842P531 came with some brand LED TVs like Eurostar, JPE, Europe/London, etc. Its USB interface can be used for loading software as well as for playing multimedia files. HK.T.RT2842P531 supports analog TV signals, and digital TV (DTT T2). HK.T.RT2842P531 firmware file is given below for the technician’s support.
General Specifications:
Model: HK.T.RT2842P531
Main Chipset: RTK2851
Resolution Supported: 1920×1080
CPU: ARM Cortex-A55*4
GPU: Mali 470*3
OS: Android 9.0
Ram: 1G
Rom: 8G
Audio Output Power: 2X8 W (8Ω)
Tuner: Digital TV (DVB-T2); Cable TV (DVB-C)
Backlight: 600mA
Backlight Power:
Service Code:
Firmware File: install_2842_350mA_1GDDR.img
Firmware Type: USB Bootable
Note: The following given software/firmware is USB Bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
HK.T.RT2842P531 Firmware file for Free Download:
- HK-T.RT2842P531 1920×1080-1G-8G-BBK.part1
- HK-T.RT2842P531 1920×1080-1G-8G-BBK.part2
- HK-T.RT2842P531 1920×1080-1G-8G-BBK.part3
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
