HK.T.RT2841P735 Firmware Free Download

HK.T.RT2841P735 Smart Android Board

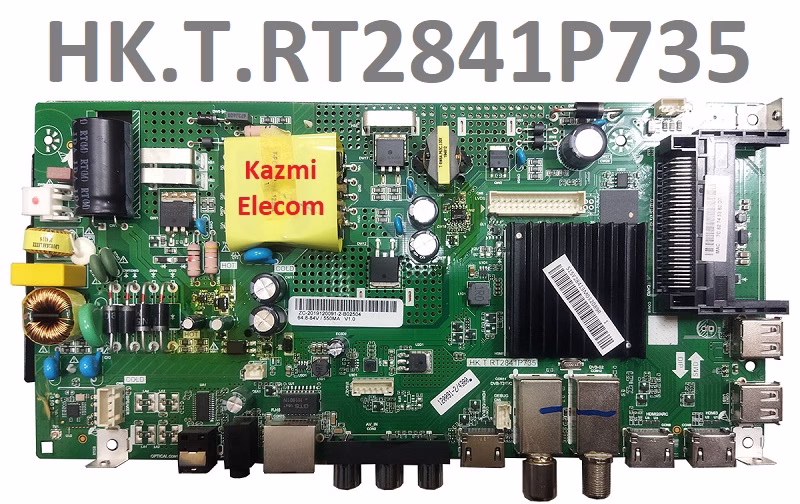

HK.T.RT2841P735 is a smart Android Intelligent Network LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 32-43 inches LED panels, with a maximum resolution of up to 1920×1080 Full High Definition 1080 Pixels. HK_T_RT2841P735 is a three-in-one (combo) board i.e. power card, backlight driver module, and Dual Cable TV tuners (ATV & DTV) board built in it.

Download Here

HK-T-RT2841P735 has multiple input interfaces, such as 2 USB, 3 HDMI, AV, CI+ Interface, and LAN port (RJ45) for wired internet connectivity. It is also built with a wireless interface. This Mart Android motherboard came with Haier brand LED TVs. Its USB interface can be used to load software and play multimedia files. HK.T.RT2841P735 supports analog TV signals and digital TV (DVB-C, DVB-S2, DVB-T2). The HK-T-RT2841P735 firmware file is given below for the technician’s support.

HK.T.RT2841P735 General Specifications:

Model: HK.T.RT2841P735

Main Chipset: RTD2841PSA

Resolution Supported: 1920×1080

CPU: Quad-core ARM core processor A53

CPU Frequency: 1.5 Hz

GPU: Dual Core

OS: Android 7.1.1

Ram: 1G

Rom: 8 Gb Builtin-Memory

Audio Output Power: 2X8 W (8Ω)

Tuner: DVB-C, DVB-S2, DVB-T2

Backlight: 80v/550mA

Backlight Power:

EMMC: H26M41204HPR

Firmware File: Install.img

Firmware Type: USB upgradeable Firmware and EMMC Backup Dump

Product User: Haier

HK.T.RT2841P735 Technical Specifications:

Resolution 1920×1080 Full HD
HD support HD
LED backlight DLEDD
Response time 8 ms
Display scale 16:09
Stereo sound Yes
Dolby Yes
Matrix type LED
Refresh rate 60 Hz
Processor frame ARM Cortex-A53/1, 5GHz/Quad core
GPU G52MP2/Dual core
OS version Android
RAM (DRAM) 1 GB
ROM (Flash) 8GB
WIFI 2T2R
HDMI 2.0 (HDCP 2.2) 2
HDMI CEC (T-link) Full
Caption (Subtitle) Yes
Game mode Yes
Sleep Timer Yes
HDMI quick switch Yes
DLNA 1.5 Yes
USB HID support Yes
USB channel list clone Yes
USB 2.0 2
Teletext there is
ATV Optional
DTV: NA
Sound power 10w+10w
Acoustic system Buffer speakers
DOLBY DIGITAL there is
Supported formats MP3, WMA, MPEG4, MKV, JPEG
Social Yes
Web browser Yes
Processor Quad Core
PVR & Timeshift – Yes

How to Write HK.T.RT2841P735 EMMC Backup:

Download the given HK-T-RT2841P735 EMMC backup is shared in this post below

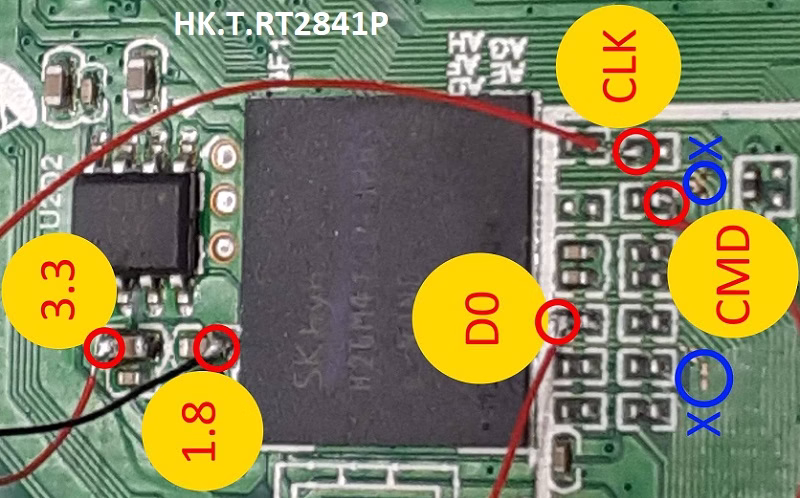

Note the EMMC Pinouts (D0, CMD, CLK) in the shared picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following HK-T-RT2841P735 firmware is a backup dump file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files or are facing any issues during firmware installation, then visit and read here first.
