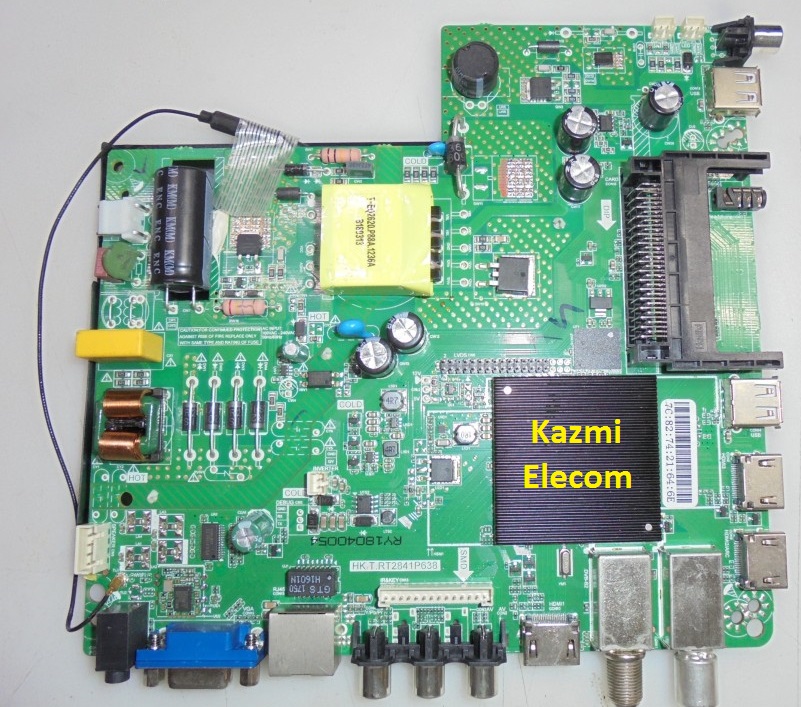

HK.T.RT2841P638 Smart LED TV Board
HK.T.RT2841P638 is a smart android Intelligent Network LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 32-46 inches LED panels, with maximum resolution up to 1920*1080. HK_T_RT2841P638 is a three-in-one (combo) board i.e power card, backlight driver module, and ATV board is builtin into it. HK-T-RT2841P638 has multiple input interface ports like USB, HDMI, AV, Scart port, and LAN port for wired internet connectivity. It also builtin a Wireless interface.
HK T RT2986P61 came with some brand LED TVs like Orion LED TV Hungary, Atmaca TV Turkey, etc. Its USB interface can be used for loading software as well as for playing multimedia files. HK.T.RT2841P638 supports analog TV signals, and digital TV (DTT T2). HK.T.RT2841P638 firmware file is given below for the technician’s support.

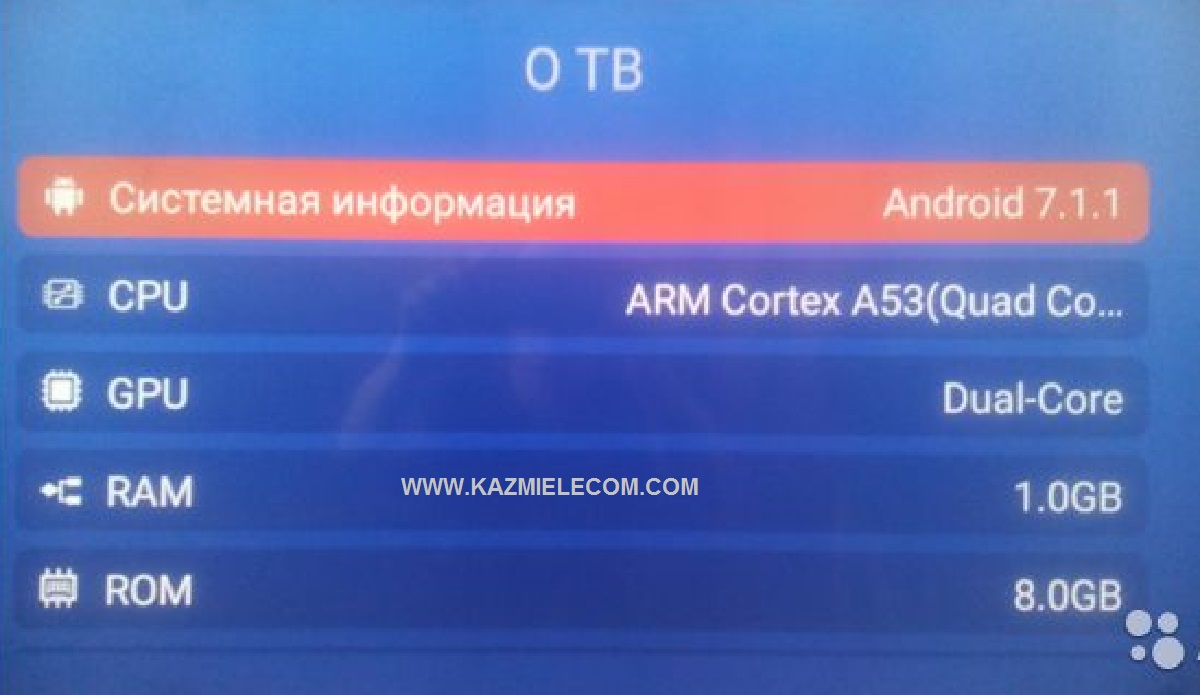

General Specifications:
Model: HK.T.RT2841P638
Main Chipset: RT284x
Resolution Supported: 1920×1080
CPU: Quad-core ARM core processor A53
GPU: Dual Core
OS: Android 7.1.1
Ram: 1G
Rom: 8G
Audio Output Power: 2X8 W (8Ω)
Tuner: DVB-T, DVB-T2, DVB-C, DVB-S, DVB-S2
Backlight:
Backlight Power:
Service Code:
Firmware File: Install.img
Firmware Type: USB upgradeable Firmware, HK.T.RT2841P638 program data USB
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Here is below HK.T.RT2831P638 Firmware file for Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | HK.T.RT2841P638-1920x1080-1G-8G-INVES.part1 | Download |
| HK.T.RT2841P638-1920x1080-1G-8G-INVES.part2 | Download | |
| 2 | HK.T.RT2841P638-1920x1080-1G-8G-GRUNKEL-LED-430 ISMT.part1 | Download |
| HK.T.RT2841P638-1920x1080-1G-8G-GRUNKEL-LED-430 ISMT.part2 | Download | |
| 3 | HK.T.RT2841P638-1920x1080-1G-8G-Vivax.part1 | Download |
| HK.T.RT2841P638-1920x1080-1G-8G-Vivax.part2 | Download | |
| 4 | HK.T.RT2841P638-1366x768-1G-8G-KRAFT.part1 | Download |
| HK.T.RT2841P638-1366x768-1G-8G-KRAFT.part2 | Download | |
| 5 | HK.T.RT2841P638_1366x768_1G_8G_JPE_BBK.part1 | Download |
| HK.T.RT2841P638_1366x768_1G_8G_JPE_BBK.part2 | Download | |
| HK.T.RT2841P638_1366x768_1G_8G_JPE_BBK.part3 | Download | |
| HK.T.RT2841P638_1366x768_1G_8G_JPE_BBK.part4 | Download | |
| HK.T.RT2841P638_1366x768_1G_8G_JPE_BBK.part5 | Download | |
| 6 | HK.T.RT2841P638_1920x1080_1G_8G_BBK.part1 | Download |
| HK.T.RT2841P638_1920x1080_1G_8G_BBK.part2 | Download | |
| HK.T.RT2841P638_1920x1080_1G_8G_BBK.part3 | Download | |
| HK.T.RT2841P638_1920x1080_1G_8G_BBK.part4 | Download |
Firmware Files:
INVES 203_2841P638_1G_8G_CNC_Spain_HV430FHB-N1K_DVBT2_HD190529_235105_svn21421
430 ISMT GRUNKEL 258_2841P638_1G_8G_CNC_Spain_HV430FHB-N1D_DVBT2_HD190605_120443_svn21769
HOW TO CHANGE LOGO THIS BOARD METHOD
Hk.t.m182vgv01 ka software nahin hey.mujhe chahiy.aur es setting code kia hey aur kaisey lagta hey.
I will share soon. if you have backup then share with me on email kazmielecom@gmail.com
Code is MENU=SOURSE=VOL+=6181
HELLO KAZMIE. VIVAX PART 5 UNKNOWN FORMAT OR DAMAGED. PLEASE HELP
i fix it
thank”s sir
SALUDO, TENGO UN PROBLEMA CON ESTE MODELO DE PLACA, INTENTE INSTALAR UN FIREWARE Y DESEE ENTONCE SOLO ME SALE PANTALLA AZUL SIN ENTRAR AL LOGO NI NADA, ALGUIEN TIENE CONOCIMIENTO DE COMO SOLUCIONAR EL FALLO, MCUHAS GRACIAS A TODOS
hola buenas noches , mi tv de la marca td systems lleva este modelo de placa pero veo que los firmware que hay no son de la marca de la tv , seria posible encontrar dicho firmware ? muchas gracias .
you did not mention the brand name and model.
First, try to hard reset:
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
My tv board number is hk.t.rt2841p638 but rom is 4gb do you have software compatible with mine because i used the above file and no picture only deam screen.
