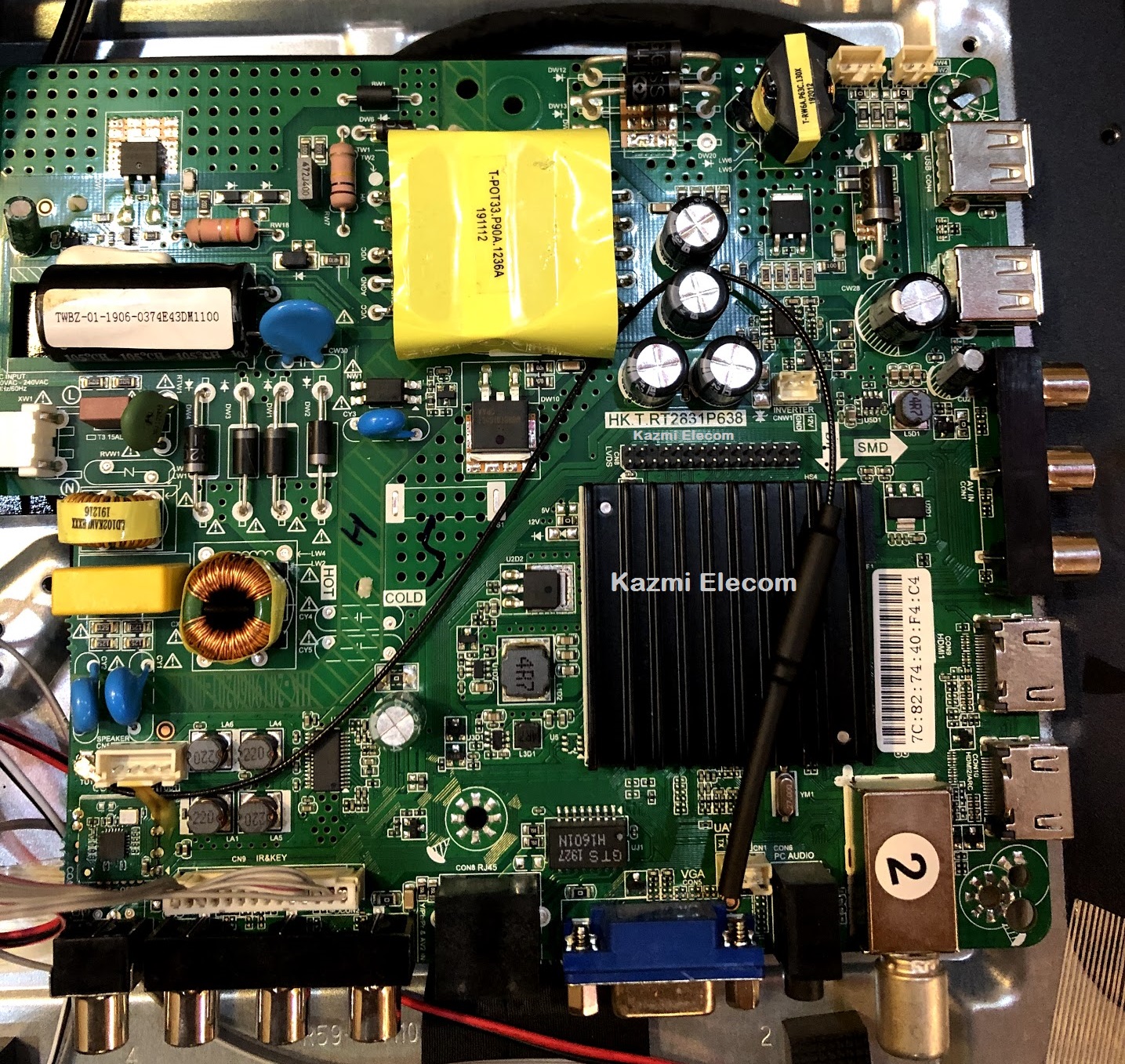

HK.T.RT2831P638 Smart LED TV Board
HK.T.RT2831P638 is a smart Android Intelligent Network LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 42-65 inches LED panels, with maximum resolution up to 1920*1080. HK_T_RT2831P638 is a three-in-one (combo) board i.e. power card, backlight driver module, and ATV board is builtin in it.
HK-T-RT2831P638 has multiple input interface ports like USB, HDMI, AV, VGA port, and LAN port for wired internet connectivity. It is also built in a Wireless interface. HK T RT2986P61 came with some brand LED TVs like Magic TV Iraq, General TV Jordan, etc. Its USB interface can be used for loading software as well as for playing multimedia files. HK.T.RT2831P638 support for analog TV signals, and digital TV (DTMB new national standard). HK.T.RT2831P638 firmware file is given below for the technician’s support.
General Specifications:
Model: HK.T.RT2831P638
Main Chipset: RT283x
Resolution Supported: 1920×1080
CPU: Quad-core ARM core processor
OS: Android
Ram: 1Gb
Rom: 4Gb
Audio Output Power: 2X8 W (8Ω)
Backlight:
Backlight Power:
Service Code:
Firmware File: Install.img
Firmware Version:
333_2831P638_1G_4G_JPE_PT430CT01-1_Jordan_ATV_HD_201903071TWBZ_190324_123402_svn19495
Firmware Type: USB upgradeable Firmware
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
HK.T.RT2831P638 Firmware file for Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | HK.T.RT2831P638_1920x1080_Magic TV.part01 | Download |
| HK.T.RT2831P638_1920x1080_Magic TV.part02 | Download | |
| HK.T.RT2831P638_1920x1080_Magic TV.part03 | Download | |
| 2 | HK.T.RT2831P638_1920x1080_General 43-Smart.part01 | Download |
| HK.T.RT2831P638_1920x1080_General 43-Smart.part02 | Download | |
| HK.T.RT2831P638_1920x1080_General 43-Smart.part03 | Download | |
| 3 | HK.T.RT2831P638-1920x1080-4G-EMMC.part1 | Download |
| HK.T.RT2831P638-1920x1080-4G-EMMC.part2 | Download |
Haier LED TV No Picture But Sound OK. How to Check and Confirm the Back Light Fault
No me funcionó se quedo oscura la pantalla encienden los led pero no da imagen
maybe resolution issue or panel mismatch
Friend the link is bad, please repair links.
Thanks you
fixed
What is the factory code of HK.T.C2351P637
not confirm. try one by one
https://www.kazmielecom.tech/category/document/service-menu-codes/
Hk.t.rt2831p638
Part 10- not
fixed
ya descarge firware pero lo pongo en la usb y conecto la usb en el tv pero no me lo reconoce
algun tips de como hacerlo por si lo estoy haciendo mal-, gracias dese ya
FAT32 USB Disk
Press VOL+/Power Key on TV Keypad
Asalam Alekum. Links not working. Please help
s.no.2 all links working
HK.T.RT2831P638 CROWN TV RESTARTING PROBLEM WHICH SOFTWARE SILVE THIS PROBLEM PLEASE SEND ME LINK
First, try to hard reset:
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
Otherwise, load firmware according to your tv brand
hola buenas tardes tengo una placa de este model que se agrando la imagen desde el logo de arranque como en todas las funciones consulta prodra ser sofware
No se quieren descomprimir los archivos ayuda
download all parts then extract anyone of them
HOLA BUEN DIA EL SOFWARE NO TRABAJO PRIMERO SALIAN LOS PERRITOS ANTES DE INTALAR EL SOFWARE CUANDO LO INSTALE SE QUEDO EN NEGRA LA PANTALLA SOLO ENCIENDEN LOS LED
try another
Hola me paso lo mismo quedo en negro la pantalla como soluciono ese error me pueden ayudar
Hola Yo estoy igual. Se queda negra la pantalla. Ya descarge el Firmware y cuando lo pongo en el puerto USB encienden los leds pero no inicia el programas
