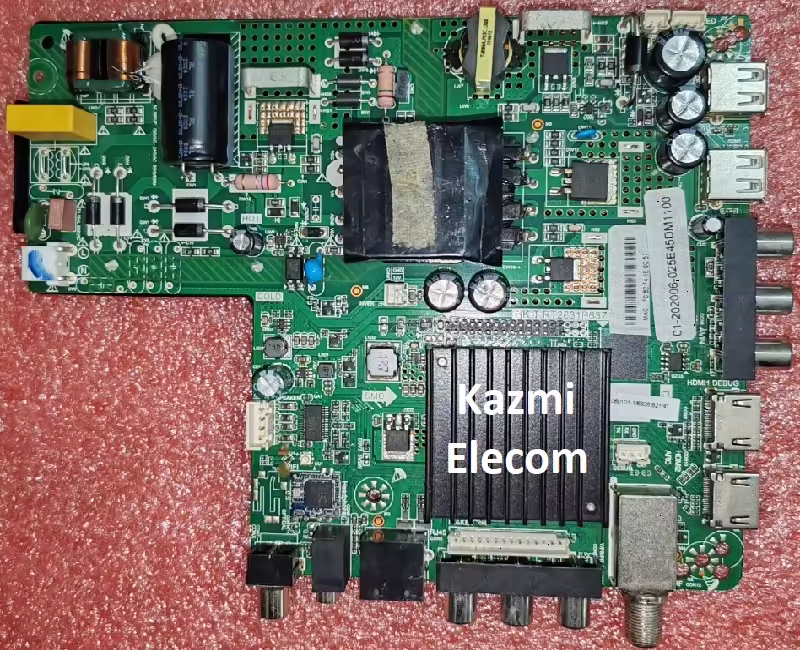

HK.T.RT2831P637 Smart LED TV Board
HK.T.RT2831P637 is a universal smart Android LCD LED TV motherboard. This board can be installed with 39-inch to 46-inch screen panels. Its maximum supported screen resolution is 1920×1080 Full High Definition 1080 Pixels. The main processor RTD2831PSA is made by Realtek with Android platform version 7.1. Its RAM capacity is 1 GB, and its storage (ROM) capacity is 8 GB eMMC Flash. This is a Combo three-in-one LCD LED TV driver controller board with an ATV operation system.
HK.T.RT2831P637 has an inbuilt LED backlight driver controller with 84-90 volt 250mA dual ports. It also has an inbuilt main input power supply module with 220V AC. It has multiple interfaces for device connectivity, such as RCA input ports, an HDMI input interface, USB input ports, Coaxial out, and a Headphone output jack. For wired internet connectivity, it has an RJ45 LAN ethernet connection interface.
HK.T.RT2831P637 General Information:
Board Model: HK.T.RT2831P637
Main Chipset: Realtek RTD2831PSA
CPU: Quad-Core
GPU: Dual-Core
Operating System: Android 7.1.1
Resolution: 1920×1080
Audio Power: 2x8W (16 watts)
Backlight Current: 250 mA*2
Backlight Voltage Range: 84-90 Volt
USB Ports: 2
HDMI Ports: 3
CI: No
Component: Yes
RJ45: Yes
Analog Tuner: PAL, SECAM, NTSC
Digital Tuner: NA
Wifi: Yes
Mira-Cast:
Memory (RAM): 1GB DRAM
Storage (ROM): 8 GB EMMC Flash
EMMC: H26M41204HPR
Power Rating: 110V~240V 50/60Hz
Power Consumption: 65Watt
Firmware Name:
Firmware Type: EMMC Backup Dump
Product Users: RCA
5800-A8R20T-0P20 Technical Specifications:
- Resolution 1920×1080 Full HD
- HD support HD
- LED backlight DLEDD
- Response time 8 ms
- Display scale 16:09
- Stereo sound there is / there is
- Matrix type LED
- Refresh rate 60 Hz
- Processor frame Quad core
- GPU Dual core
- OS version Smart
- RAM (DRAM) 1GB
- ROM (Flash) 8GB
- WIFI 2T2R
- HDMI 2.0 (HDCP 2.2) 2
- HDMI CEC (T-link) Full
- Caption (Subtitle) Yes
- USB HID support Yes
- USB channel list clone Yes
- USB 2.0 2
- Teletext there is
- ATV PAL, SECAM, NTSC
- DTV No
- Sound power 8w+8w
- Acoustic system Buffer speakers
- DOLBY DIGITAL there is
- Supported formats MP3, WMA, MPEG4, MKV, JPEG
- Social Applications Yes
- Web browser Yes
- Processor Quad Core
- WiFi sharing Yes
How to Write HK.T.RT2831P637 EMMC Backup:
- Download the given HK.T.RT2831P637 EMMC backup shared in this post below

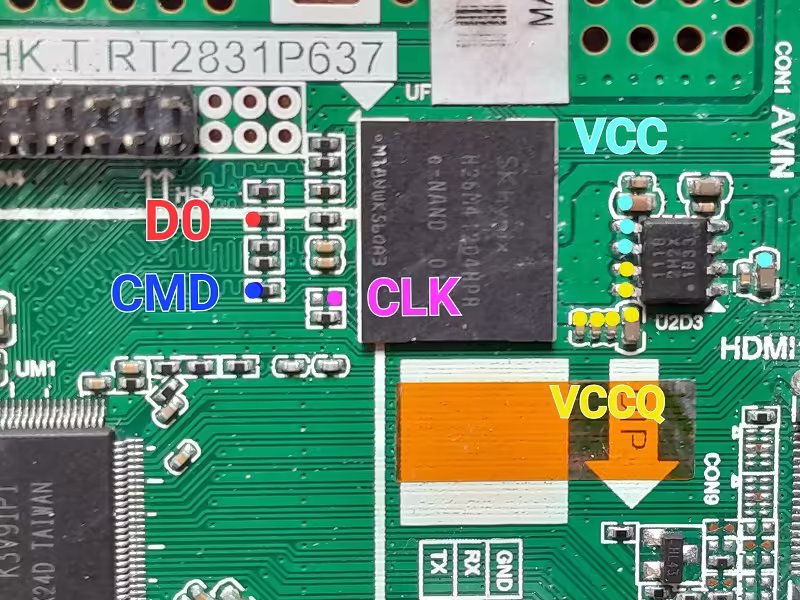

- Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
- Jtag the mainboard with the Programming Tool
- Write the EMMC data
- Done.
Note: The following HK.T.RT2831P637 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files or are facing any issues during firmware installation, then visit and read here first.
HK.T.RT2831P637 Firmware files for free download:
- HK.T.RT2831P637-1366×768-8G-PANAMA-RCA-EMMC.part1
- HK.T.RT2831P637-1366×768-8G-PANAMA-RCA-EMMC.part2
- HK-T.RT2831P637-1920×1080-8G-PANAMA-RCA-EMMC.part1
- HK-T.RT2831P637-1920×1080-8G-PANAMA-RCA-EMMC.part2
- HK-T.RT2831P637-1920×1080-8G-WESTINGHOUSE-EMMC.part1
- HK-T.RT2831P637-1920×1080-8G-WESTINGHOUSE-EMMC.part2
