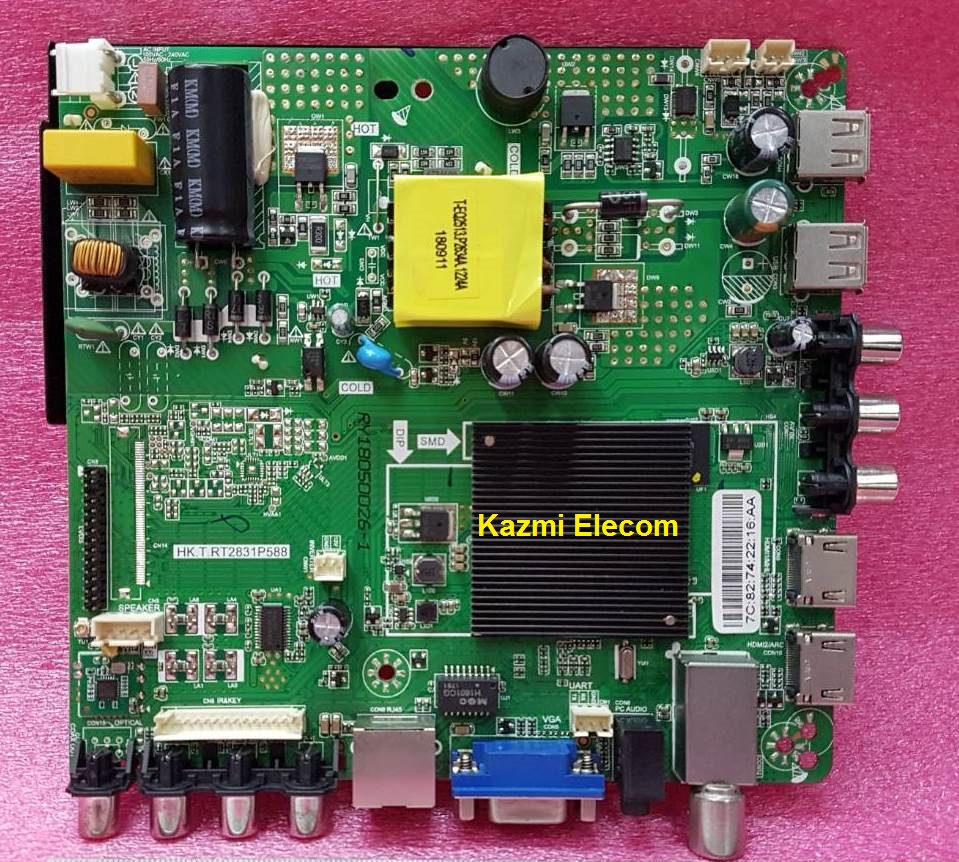

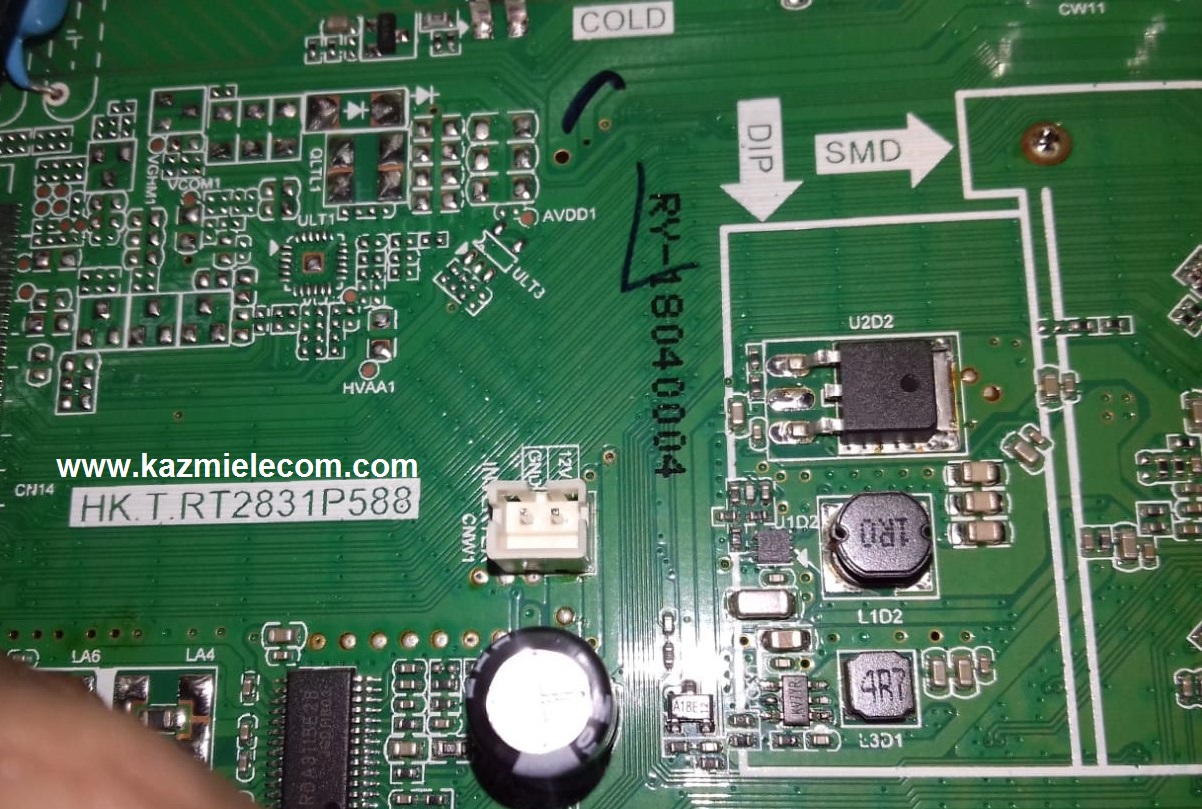

HK.T.RT2831P588 Smart LED TV Board
HK.T.RT2831P588 is a smart Android Intelligent Network LCD/LED TV Board. This board is best fit for HD and FHD LED screen panels, with maximum resolution up to 1920×1080 Full HD. HK_T_RT2831P588 is a three-in-one (combo) board i.e power card, backlight driver module, and ATV board is built in it. Full specification to support user, it has multiple input interfaces such as Wifi, Ethernet LAN, VGA, USB, HDMI, Headphones, and RCA input.
HK-T-RT2831P588 supports Laptop and PC connectivity by its VGA interface port, and LAN ports for wired internet connectivity. It is also built in a Wireless interface. Users can play their own choice multimedia files every time and also can upgrade software by the USB input interface. HK.T.RT2831P588 support for analog TV signals, and digital TV (DTMB new national standard). HK.T.RT2831P588 firmware file is given below for the technician’s support.
General Specifications:
Model: HK.T.RT2831P588
Main Chipset: RTD2831PSZ
Resolution Supported: 1920×1080
CPU: Quad-core ARM Cortex A53
GPU: Dual-Core
OS: Android 7.11
Ram: 1Gb
Rom: 8Gb
EMMC: THGBMDG5D1LBAIL
Audio Output Power: 2X8 W (8Ω)
Backlight:
Backlight Power:
Service Code:
Firmware File: Install.img
Firmware Type: USB upgradeable Firmware
Caution:
All the pictures and specification details related to HK.T.RT2831P588 in this post are for reference only. If you are a user and do not have any repair experience, it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different based on the visual observations. So, please do not try it at home. If the LED TV is slow then reset it to Factory Default only.
Pros:
There are many advantages to installing the given HK.T.RT2831P588 USB software or eMMC backup dump file. A few benefits are described below:
- The dead board can be recovered and operational by loading the given USB software or EMMC backup file
- Remote and Logo may change at your own choice to satisfy the customer
- Money saving instead of changing the mainboard
- Time-saving instead of arranging a new board
- Customer satisfaction to do an urgent job
- Skill and confidence improvement
Cons:
There may be some disadvantages to installing the given HK.T.RT2831P588 USB software or backup dump file. But it depends on the technician or user, as per his understanding. A few drawbacks are described below:
- The working board may go to the standby position
- Remote Control may not work and the Logo may change by writing the given software
- Panel screen parameters may be changed
HK.T.RT2831P588 Android Version Upgrade:
Please note that the installed version in this board is the final version and the Android version is not updateable. So, no need to upgrade the software if the board is working normally. Only if, the default software malfunctions due to some bugs will the manufacturer provide the software update. Otherwise, no version update is issued.
HK.T.RT2831P588 EMMC Backup:
This board has a 4/8GB eMMC chip. you can read the EMMC backup by Pendrive but for writing a backup of EMMC you should jtag the mainboard HK.T.RT2831P588 and write by a programming tool. Be careful while writing emmc backup file, if the board is on standby light due to wrong software or incomplete installation then you can do it, otherwise, it is on standby or red light due to hardware fault. So, first trace the fault. In this case, no need to write emmc backup.
HK.T.RT2831P588 Board Replacement:
If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications, the newest Android version, and the latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.
Note: The following firmware is a USB bootable and EMC backup file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Detail about the download process watch the video Click Here
HK.T.RT2831P588 Firmware file for Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | HK.T.RT2831P588 1920x1080-1G-8G-USB.part1 | Download |
| HK.T.RT2831P588 1920x1080-1G-8G-USB.part2 | Download | |
| 2 | HK.T.RT2831P588 1366x768-1G-4G-Ploand.part1 | Download |
| HK.T.RT2831P588 1366x768-1G-4G-Ploand.part2 | Download |
Firmware File:
HK_T_RT2831P588_1920x1080_1G_8G\166_2831P588_1G_8G_PR180628A60S_HV320FHB-N00_CJ_T2_190926_160723_svn25549.zip
HK-T.RDA85.3P538 firmware 1366 or 1920×1080
yeh board mene kabhi dekha nai. kia ap iski picture share kar sakte ho Forum page pe
good, download the firmware to the hk.t.rt2831p588 and the black led screen came out, what do I do?
if board is on then may be resolution issue
I have ikon IK-E32DMS 1366×768 same board HK.T.RT2831P588 . how to download the file file server is down your link not working
now working fine
Hola descargue HK.T.RT2831P588 1366X768 SALIO PANTALLA NEGRA.
check panel resolution and then load correctly firmware
yo descargue el firmware de resolucion 1366×768 funciona muy bien el problema es que no aparece señal de tv para colombia, que se puede hacer ?
search appropriate software for your region
Hello i have 32he2hdta1 liberton hk.t.rt2831p588 1366×768 download link not work….
links working
Hi sir
Hk.t.rt2831p588 panel naya daladeya sir but mirror Seva’s nay horahahi sir any suggesti sir
tcon se try karen
We have no remote, Kindly share its remote photo .
Hola. Tengo un smart tv RCA con placa HK.T.RT2831P538 en modo refresh. Creo que con el codigo del menú de servicio se soluciona. Me puedes decir cual es?
not sure. Menu 1147 and Source 2580 are most common. Otherwise, try one by one
https://www.kazmielecom.tech/category/document/service-menu-codes/
Hello hk.t.rt2831p588 1920×1080 link not work
i replace the links
file hk.t.rt2831p588 1920 x 1080 link part 5 not work.
Tk
try again. it is because of popup ads
Thanks for the support. Only file 5 is missing indicating “File not found”
link replaced
I downloaded 1920×1080 resolution from HK T RT2831P588 but it gave me a black screen and I started downloading the 1366×768 resolution parts but parts 4,5 and 6 downloading from Gulfup says expired on 02/12/2022
I don’t know if that can be fixed?
and I don’t know if the black screen has another solution?
Descargué una resolución de 1920×1080 de HK T RT2831P588 pero me dio una pantalla negra y comencé a descargar las partes de resolución de 1366×768 pero las partes 4,5 y 6 que se descargan de Gulfup dicen que vencieron el 12/02/2022
no se si eso se puede arreglar?
y no se si la pantalla negra tiene otra solucion?
first, you should check the panel resolution.
4,5,6 links replaced
Gracias
hello, I have Liberton 32he5hdta1, main hk.t.rt2831p588, 1366×768. I downloaded and installed the firmware but the image is mirrored or inverted (I reinstalled several times) and the remote control does not work. Please give advice on what to do?
use universal remote control and invert mirror mode from service menu
Thanks for the advice. I downloaded the “ZAZA” application, selected all the TVs in it and found the right one. Entering the service menu: MENU 1147, control panel and turned off mirroring in both lines. Perhaps this information will help someone
There was a problem, after disconnecting from the outlet, the images are again upside down. Changes are not saved after reboot. What do you advise?
check if there is any option for save
In the service menu, the rest of the settings can be saved, except for the panel settings. After the reboot, the red-green LED flashes and the image is reversed again.
strange case. never experienced the same
HOLA TENGO INVERTIDA LA PANTALLA Y EN MODO DE SERVICE LA PONGO BIEN NO ME GUARDA DATOS CUANDO DESCONECTO DE CORRIENTE COMO LOGRO QUE GUARDE LOS DATOS GRACIAS
HK.T.RT2831P538 : 1366×768 This board will have software. thank you
Thank you the software is 100% working but if any remote works please tell me.
