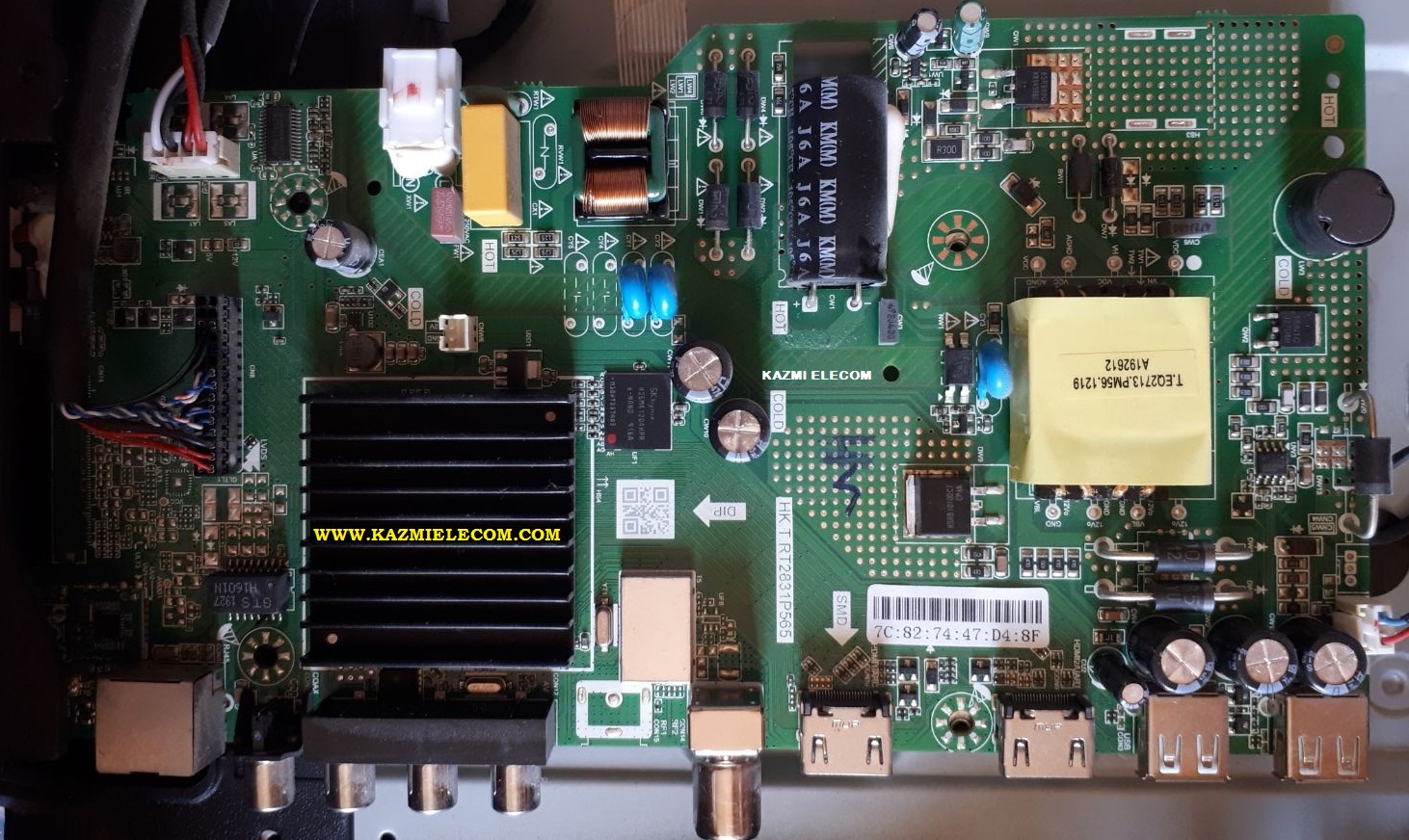

HK.T.RT2831P565 Smart+T2 Board
HK.T.RT2831P565 is a smart android Intelligent DVB-T2 Network LCD/LED TV Board with an integrated digital converter. It is suitable for the LVDS interface and supports more than 32-43 inches LED panels, with a maximum resolution of up to 1920*1080. HK_T_RT2831P565 is a three-in-one (combo) board i.e. power card, backlight driver module, and ATV board is built into it. HK-T-RT2831P565 has multiple input interface ports like USB, HDMI, AV, VGA port, and LAN ports for wired internet connectivity. It is also built in a Wireless interface.
HK T RT2831P565 came with Brvis brand LED TVs. Its USB interface can be used for loading software as well as for playing multimedia files. HK-T-RT2831P565 support for ATV, DTV, and CATV receivers. HK.T.RT2831P565 firmware file is given below for the technician’s support. If you are facing any issues during firmware installation then visit and read here first.
General Specifications:
Model: HK.T.RT2831P565
Main Chipset: RTD2831
Resolution Supported: 1920×1080
CPU: ARM Cortex A53 Quad-Core
CPU Frequency: 1.1 GHz
GPU: Dual Core Mali470MP
GPU Frequency: 600 MHz
OS: Android 7.1.1
Ram: (756 Mb) 1 Gb DDR3
Rom: 8 Gb
Audio Output Power: 10 W (5Wx2)
Energy consumption: 35W
Backlight: 48V-57.6V
Backlight Power: 400mA
Service Code:
Firmware File: Install.img
Firmware Type: USB upgradeable Firmware
Product User: Bravis
Note: The following software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware.
How to Download HK.T.RT2831P565 Firmware File:
Download all parts of the following firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
HK.T.RT2831P565 Firmware file for Free Download:
Please kindly send me the link to download lg wisdom share smart cloud android 65″ firmware, I have been try to download the software but proved abortive in order to install it to my tv, because it is only showing me wisdome share means it cannot boot.
first, try to reset:
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
HK.T.RT2831P565_1366x768_1G_8G_Bravis.part4 Download
HK.T.RT2831P565_1366x768_1G_8G_Bravis.part5 Download
HK.T.RT2831P565_1366x768_1G_8G_Bravis.part6 Download
not found!!!
please download
all mention parts together in a single link. first extract the single link you will get parts 4,5,6 then extract any one.
how to get the tv board hk.t.r2831p560 remember the setting after I made changes to in the service menu? after I unplug the power the tv it will reset itself and undo all my changes. this name is Kodak 23sva1000.
no consigo el software de la tarjeta HK.T.RT2831P560
