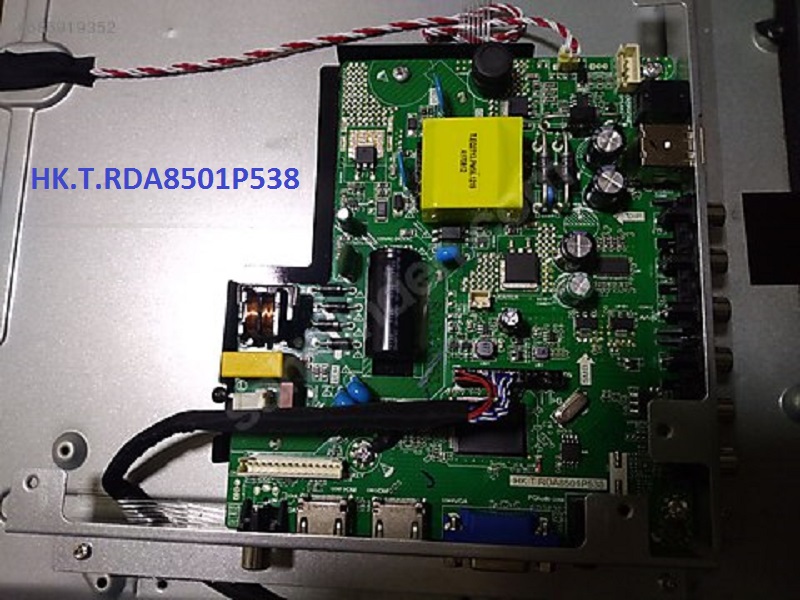

HK.T.RDA8503P538 LED TV Board

HK.T.RDA8503P538 is a multi-purpose and energy-efficient LCD/LED TV universal combo control board with a single/dual 8-bit LVDS interface. HK_T_RDA8503P538 supports resolution panels up to 1920×1080.HK-T-RDA8503P538 multimedia playback function and software upgrade are applicable by the USB port.

Download Here

Basic Info:

Model No. HK.T.RDA8503P538

Main Chipset: RDA8503

Display Format: 1080p

Aspect Ratio: 4:3, 16:9 & 16:10

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Source/Power

Multi-Language OSD: Yes (English/French/Spanish/Portuguese/Chinese)

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 4 Watt (8 ohm)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

Electrical Parameters:

Working Input Voltage: AC220v

Maximum Current: 4000mA (Without Panel)

Standby Power: <0.6W (for the mainboard only)

Maximum Current for USB: 500mA

Note: The following given firmware is dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following given firmware and then extract you will get the folder. Now load the file by programmer. For More Detail about download process watch the video Click Here

Here is below HK.T.RDA8503P538 firmware for free download:
