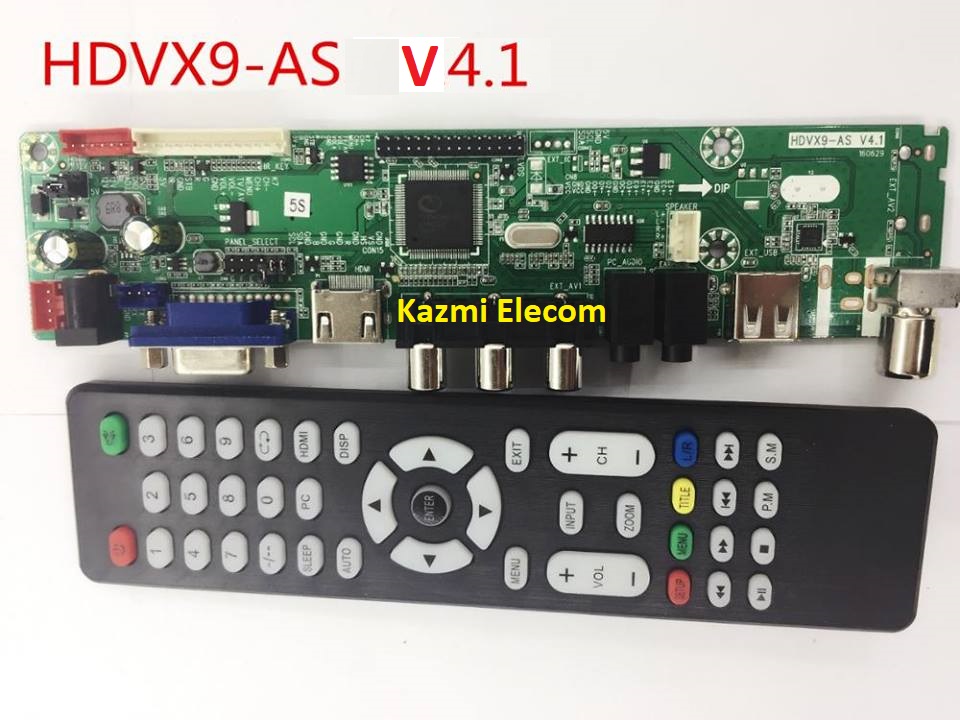

HDVX9-AS V4.1 LED TV Board
HDVX9-AS V4.1 is a universal jumper LCD LED TV Control driver board. It has all the resolution software built into it. Panel power supply and panel resolution can be selected by a jumper setting. So, no need to install separate firmware for a change of resolution. Just select Panel and select Jumper as per the required resolution.
Basic Info:
Model No. HDVX9-AS-V4.1
Main Chipset: TSUMVV29LU/TSUMVV59XU-Z1
Display Format: Max 1920×1080@60Hz
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 2 Watt (8 ohm)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for motherboard only)
Maximum Current for USB: 500mA
Service Code: Menu+8896
Factory Service Mode:
1 Press Menu, then the LCD will have the menu on the screen,
2 Press the number keys 8,8,9,6, a menu appears on the screen,
3 Select SYSTEM SETTING and enter,
4 Select Panel Setting, tone 1,2,3,4 .. . After the screen is ok, press ESC, Done!
Note: If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
HDVX9-AS V4.1 Firmware Free Download :
