HDVX9-AS V3.0 Software Free Download

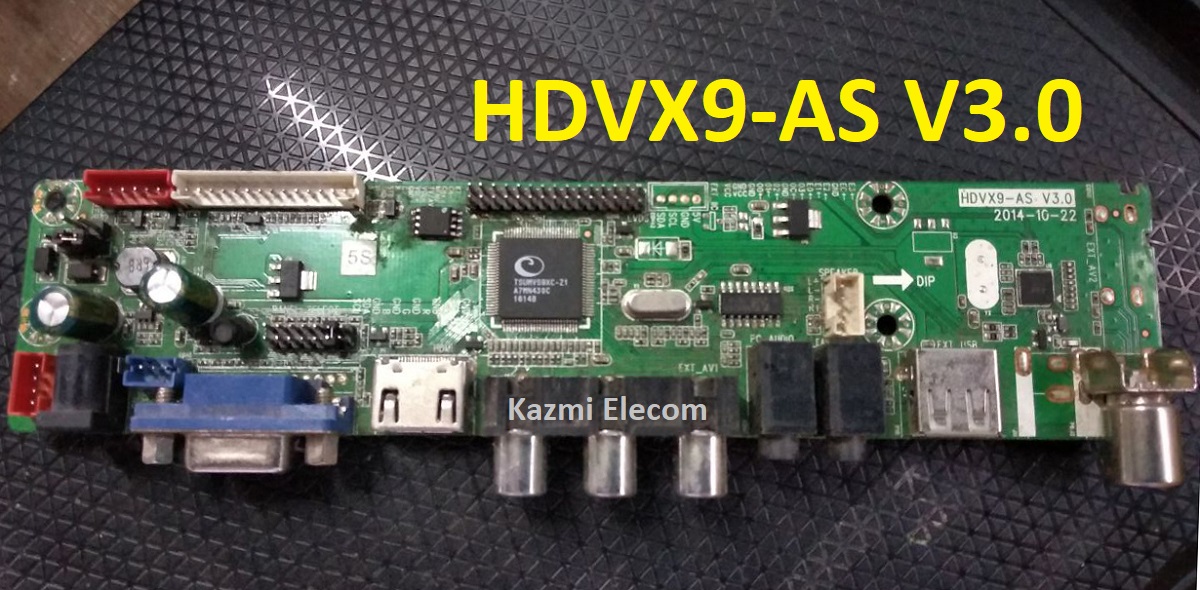

HDVX9-AS V3.0 LED TV Board

HDVX9-AS V3.0 is a universal jumper LCD LED TV Control driver board. It has all the resolution software built into it. Panel power supply and panel resolution can be selected by a jumper setting. So, no need to install separate firmware for a change of resolution. Just select Panel and select Jumper as per the required resolution.

Download Here

Basic Info:

Model No. HDVX9-AS-V3.0

Main Chipset: TSUMVV59XC-Z1

Display Format: Max 1920×1080@60Hz

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 2 Watt (8 ohm)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for motherboard only)

Maximum Current for USB: 500mA

Service Code: Menu+8896

Factory Service Mode:

1 Press Menu, then the LCD will have the menu on the screen,
2 Press the number keys 8,8,9,6, a menu appears on the screen,
3 Select SYSTEM SETTING and enter,
4 Select Panel Setting, tone 1,2,3,4 .. . After the screen is ok, press ESC, Done!

Note: If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

HDVX9-AS V3.0 Firmware Free Download :
