HDV56U-AS Software Free Download

HDV56U-AS Universal TV Board

Basic Info:

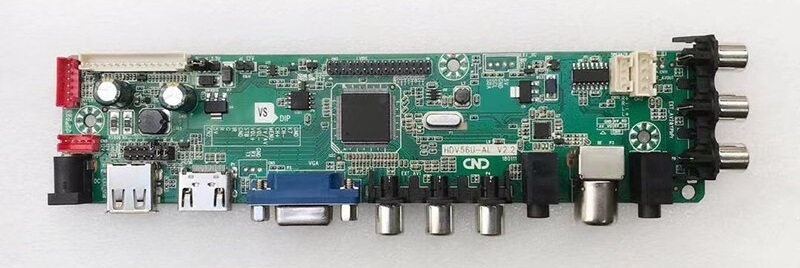

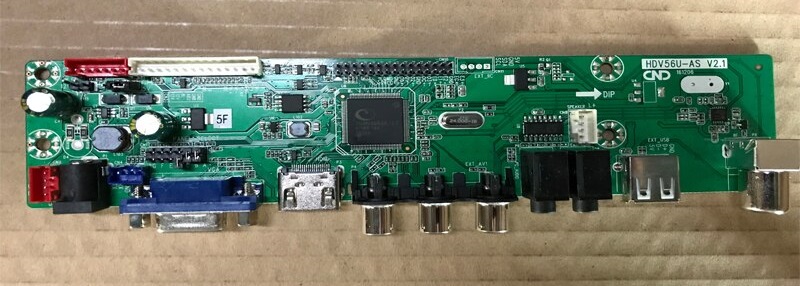

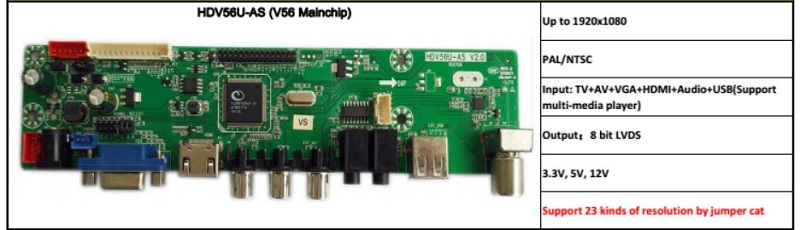

Model No. HDV56U-AS V2.1, HDV56U-AS V2.2, HDV56U-AS V2.0

Main Chipset: TSUMVV56RUUL-Z1

Display Format: up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

Special Feature: Support multiple resolution formats with Jumper setting

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS (2X15 pins)

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Default Language: Chinese/English

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohm)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

Backlight: Yes

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

Factory Service Mode:

Menu+8896

Note: No need to load resolution firmware. if the software corrupts then load the backup dump and change the resolution by jumper setting.

Boot Logo Setting:

1. Put the required logo image in Pendrive
2. Connect the Pendrive with the tv
3. Find the logo in Multi-media File
4. Select the logo
5. Press No.”6 ” on the remote control to change to fullscreen play, then press “ok” on
the remote control, on the bottom of the option items, there is a ” catch”, choose it. Logo Change Done

Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware File:

Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here

HDV56U-AS Firmware Free Download Here :

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	HD56U-AS_V2.1_Backup_Dump	Download

For video tutorials, visit “Kazmi Elecom” my youtube channel.
