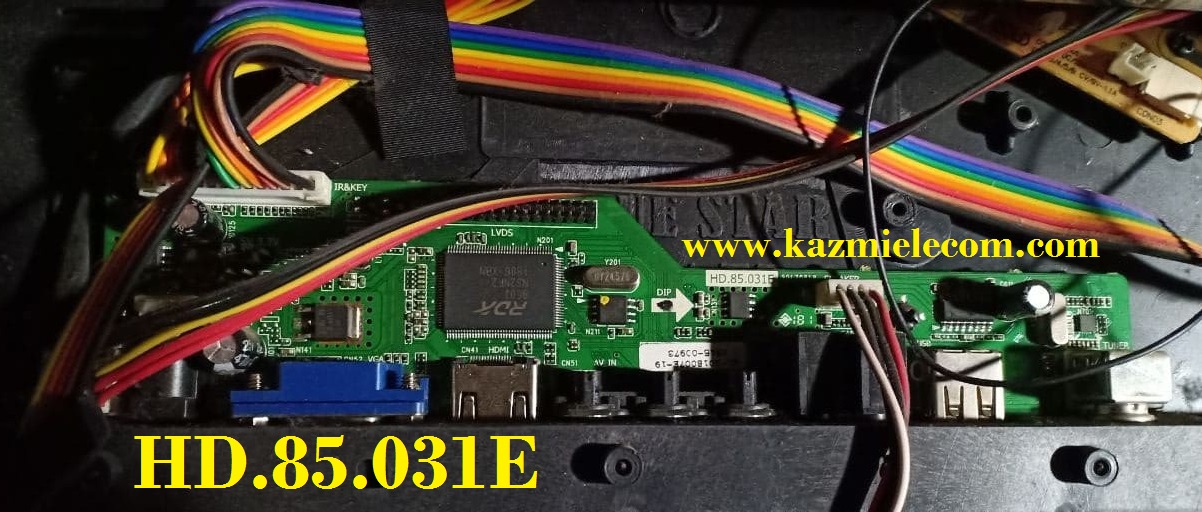

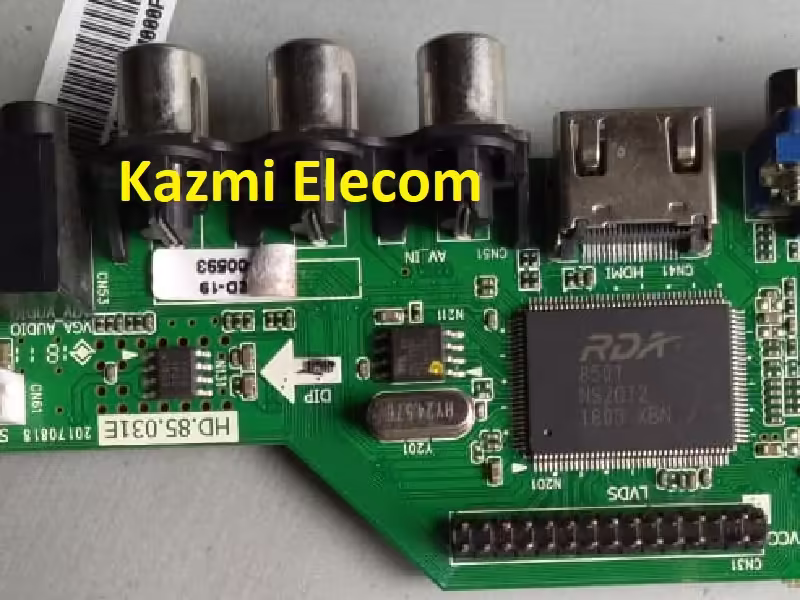

HD.85.031E UNIVERSAL BOARD

HD.85.031E is a non-combo universal LCD/LED TV Board with a jumper cap setting option.

Basic Info:

Model No. HD.85.031E

Main Chipset: RDA 8501

Display Format: up to 1920×1200

Aspect Ratio: 4:3, 16:9 & 16:10

Sound: CS8563S

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohm)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

Factory Service Mode:

Menu+

Note: The following given software/firmware is USB upgradeable or Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download your required resolution firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

HD.85.031E Firmware Free Download Here :



S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	HD.85.031E_1366x768_Dump	Download
