GT.V56.A01 Universal Board

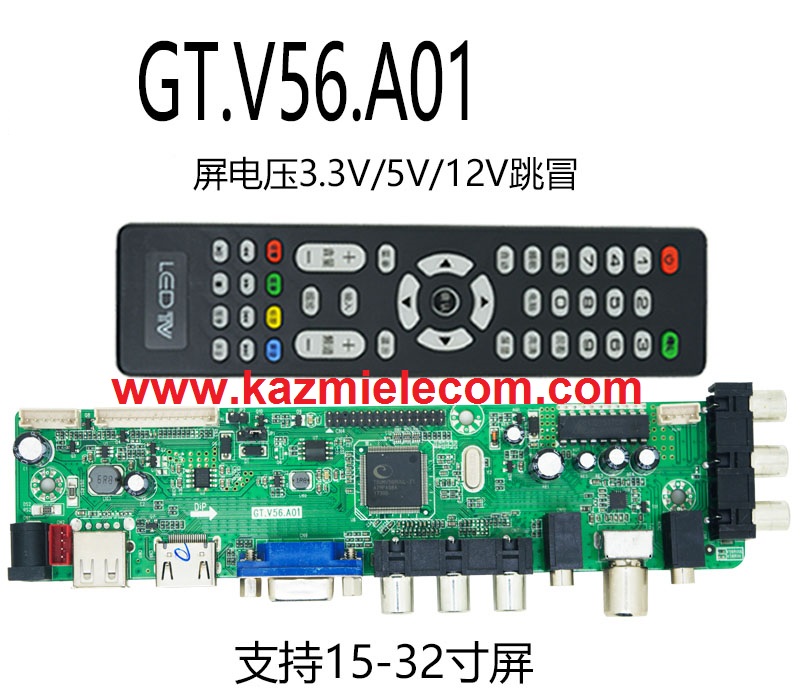

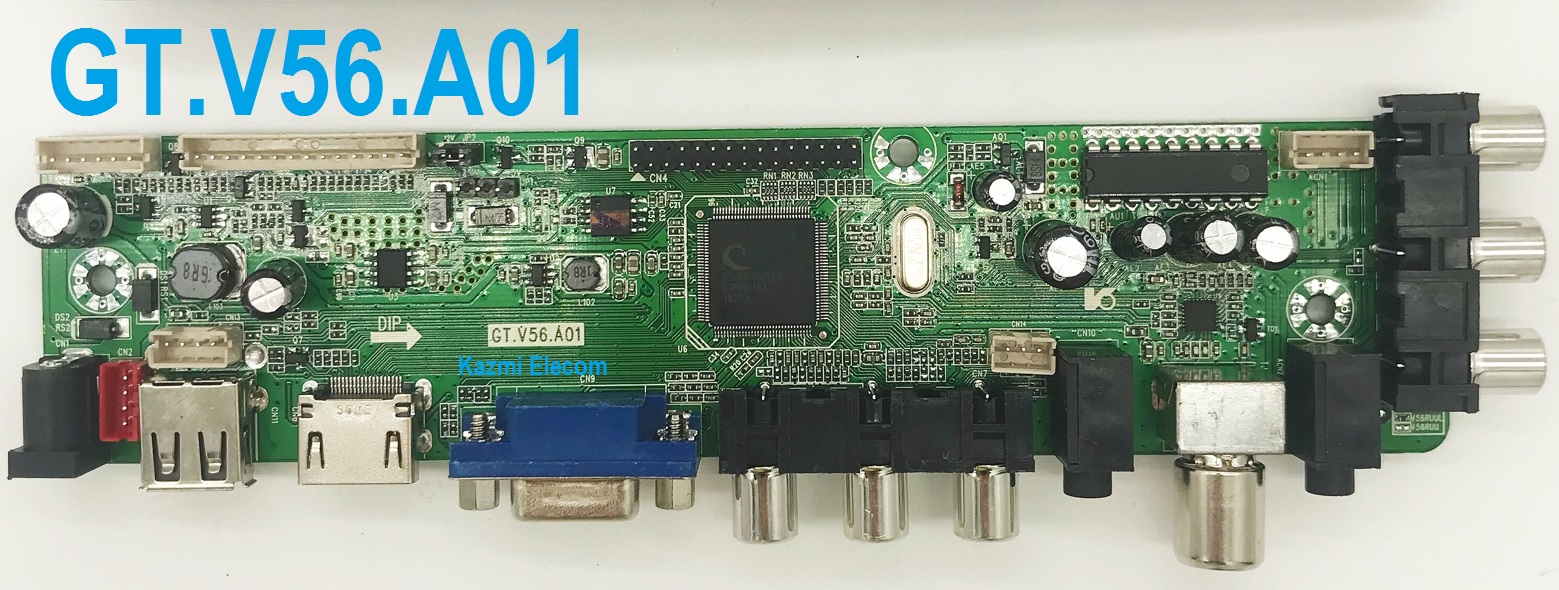

GT.V56.A01 is a universal LCD/LED TV Controller board that is designed for Asian countries with jumper cap setting for all panel VCC. GT_V56_A01 supports a high screen resolution of 1920×1080 panels. GT-V56-A01 is compatible with 15-32″ LVDS screens but does not support all panels.

Download Here

Basic Info:

Model No. GT.V56.A01

Main Chipset: TSUMV56

Audio: CD1517CP

Support Language: Multi

Display Format: 1080p

Max Resolution : up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual channel LVDS

Mirror Enable: Yes

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohm)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt 4Amp

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

Copy the Required Firmware/software (“GT_V56_RUUL.bin”) in FAT32 USB Disk
Plug in the U disk into the Mainboard USB port of LCD/LED TV
Switch ON the power and Wait even IR indicator led flash rapidly
Done. Unplug the Udisk (It will take max 1 min to upgrade firmware)
It continues to keeps flashing and never stop. This is normal, just wait about 1 minute, this means that the update is complete. Then turn off and turn on also remove the u-disk

Factory Service Mode:

Input 2580, Menu 1147

Note: The following firmware is a dump backup. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following firmware and then extract you will get the folder. Now load the file by a programmer. For More Detail about the download, process watch the video Click Here
