GSDXLI3TO-V1.1 Software Free Download

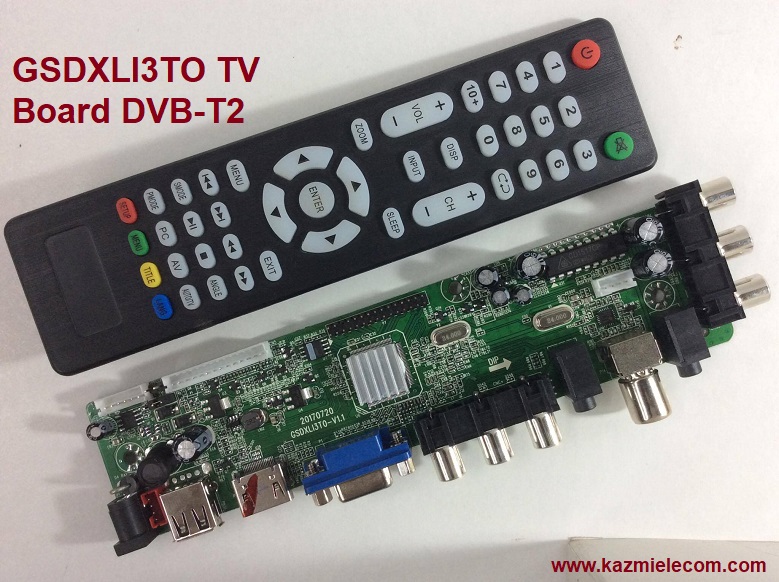

GSDXLI3TO-V1.1 Universal DVB-T2 TV Board

GSDXLI3TO-V1.1 is a high-definition digital TV (DVB-T2) board that supports up to 1920×1080 resolution screens and according to screen sizes GSDXLI3TO can support LCD screens 15 to 32 inches. GSDXLI3TO is the best TV board that has all the features and ports according to future requirements.

It has Full-automatic RF, video, and audio format automatic detection. Its USB playback function Supports regular music in MP3 format and video in RM.RMVB.mp4.dat format file playback.

General Specifications:

Model No. GSDXLI3TO-V1.1

Main chipset: MSD3663GU-Z1

Panel voltage: 3.3V/5V/12V (jumping cap setting)

Input Supply voltage: 12V DC

Input interface: HDMI, VGA, AV video, USB media player interface, TV interface

Video Format: PAL, NTSC, SECAM

Audio output: 4 ohms 3W (can support 8 ohms 2W, 6 ohms 2W, 4 ohms 2W, 4 ohms 3W speakers)

HDMI Protocol: up to HDMI1.4 standard

Screen Size Supported: 15-32 inches

Resolution:  1920×1080 Maximum

USB2.0 current: 500mA maximum

Service Menu Code:

Source/Input 2580

Note: Following the given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware Files:

Download your required resolution and then extract it you will get the folder. Now copy the bin file to USB. For more Details about the download process watch the video Click Here

GSDXLI3TO-V1.1 firmware for free download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	GSDXLI3TO-V1.1_Software_All Resolution.part1	Download
	GSDXLI3TO-V1.1_Software_All Resolution.part2	Download
	GSDXLI3TO-V1.1_Software_All Resolution.part3	Download
	GSDXLI3TO-V1.1_Software_All Resolution.part4	Download
