GSD63SIT0-V1.1 Software Free Download

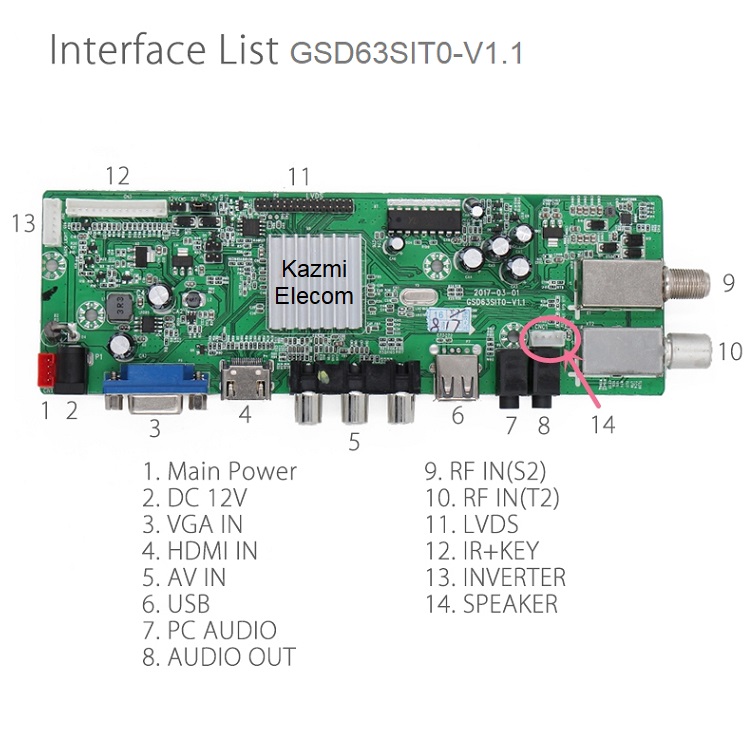

GSD63SIT0-V1.1 DVB-T2 Universal LCD TV Controller Board

GSD63I3T0-V1.1 DVB-T2 multi-function digital terrestrial TV Board. This universal LCD/LED TV Controller Board is suitable for Europe, Africa, and five countries in Central Asia, the Middle East, Russia, Thailand, Burma, Kenya, Malta, and other countries or regions.

Download Here

GSD63I3T0 can support Digital signals. It also supports multiple languages. GSD63I3T0 can support Full HD 1920×1080 screens with a size of 15 t0 32 inches. The USB slot is used for software updates and playback of multimedia materials such as MP3 and JPEG.

General Specifications:

Model No. GSD63SIT0-V1.1

TV signal support: DVB-C / T / T2 / S2 / TV

Screen interface: LVDS single 6/8, double 6/8

Support language: Russian, English, French, Czech, Danish, Espanol, Hrvatski, Deutsch, Errnvika, Italiano, Magyar, Romaneste, nederles, slovenes, Slovenian, Norsk, Srpski, Suomi, Suomi Slovenian, Svenska, Hindi

Audio output power: 2×8 W

Power Consumption: operation mode-> = 6 W , Simple- <0.3 W

Input interface: PC / HDMI / tv / USB Multimedia game

Input Voltage: 12 V DC

Panel Screen Voltage: 3.3 V / 5 V / 12 V

Resolution: Support 1920×1080

Screen Size Supported: 15-32 inch

Factory Setting Mode:

2580

Note: Following the given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware Files:

Download your required resolution and then extract it you will get the folder. Now copy the bin file to USB. For more Details about the download process watch the video Click Here

GSD63SIT0-V1.1 firmware USB updateable for free download:
