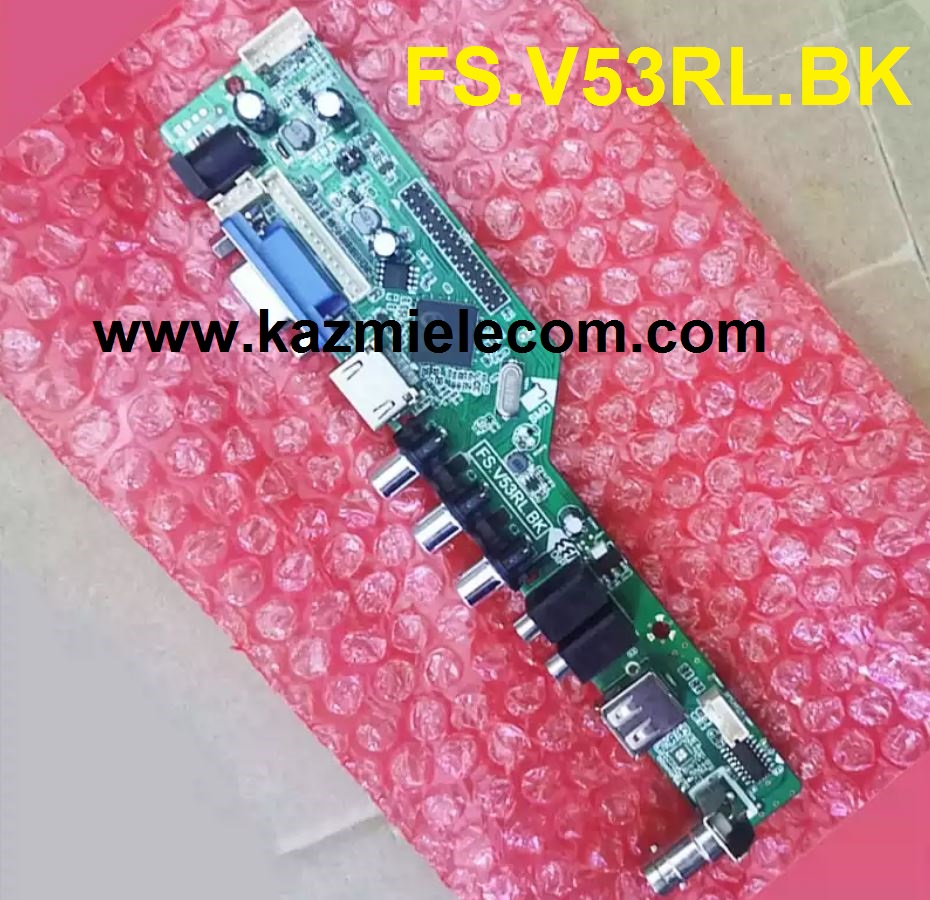

FS.V53RL.BK LCD/LED TV Board
FS.V53RL.BK is an analog TV control board, which is suitable for Asia-pacific and middle-east markets.
FS.V53RL.BK’s USB slot can be used for updating software and playing multimedia, such as MP3 and JPEG. FS.V53RL.BK’s HDMI support for the scheme is 1.3/1.4, HDCP1.2 compliant.
General Specifications:
Model: FS.V53RL.BK
Main Chipset: TSUMV53RUUL-Z1
OSD Language: English, Chinese
Panel Type: TFT LCD With LED Backlight
Panel Interface: 1ch/2ch 6bit/8bit LVDS Interface
Max Resolution: 1920×1080
Power to To Panel: 3.3V/5V/12V
Video System: PAL, SECAM, NTSC
Sound System: BG,DK,I,L,M,N NICAM/A2
Max Audio Output Power: 2×3W
Power DC Input Voltage: 12VDC±0.6V 4Amp
Standby Power Consumption <0.3 W (Board Only)
Max current of USB: 500mA
How to Load Software:
1. C copy the L53BK1. Bin on a USB flash drive.
2. Set the voltage on board (this is according to your screen input voltage: 3.3 V / 5 V / 12 V)
3. Connect the U disk to the board, and connect the 7 key, then connect the power adapter, and turn it on. Then you can see the light on the keyboard will flash. This means that the board installs the program. (Do not turn off the power at this time!)
4. After a few minutes, the LED will stop flashing, the middle end. Then turn off the power, pull out the USB, then connect the lvds cable and the inverter. Power on. Then the screen shows blue, and you can connect to the HDMI or VGA signal.
Note:
The voltage must be set correctly (3.3 V / 5 V / 12 V); Do not turn off the power when installing the program; The screen line does not rotate and does not move.
Factory Mode:
Menu+1147
Note: The following firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

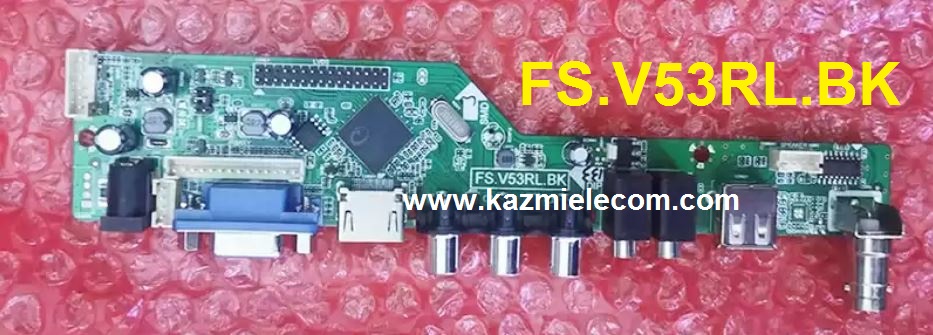

Here are below FS.V53RL.BK firmware all resolution USB updateable for free download:
