ECHOLINK 2020 4K Satellite Receiver
ECHOLINK 2020 4K dump file or the flash file is a boot information data with software/program of a satellite receiver, which is located at EEPROM, or Flash IC or Memory IC of ECHOLINK 2020 4K receiver. The main processor/Microcontroller retrieves the information from memory ic when it is powered on to know how to work/boot. For more Flash Dump Files visit here.
If the Flash IC/Memory IC of the ECHOLINK 2020-4K receiver is damaged for any reason or its software/firmware malfunctions due to any reason then the Main controller does not get any boot/basic information and the satellite receiver ECHOLINK 2020-4K does not turn on. In this situation, we need to reprogram the flash ic of the ECHOLINK 2020-4K receiver with the matched hardware dump/flash file to get the receiver in normal condition. A dump file of ECHOLINK 2020-4K is shared for technician/user support.
Information and Specifications of ECHOLINK 2020 4K:
Manufacturer: ECHOLINK
Box Model: 2020 4K

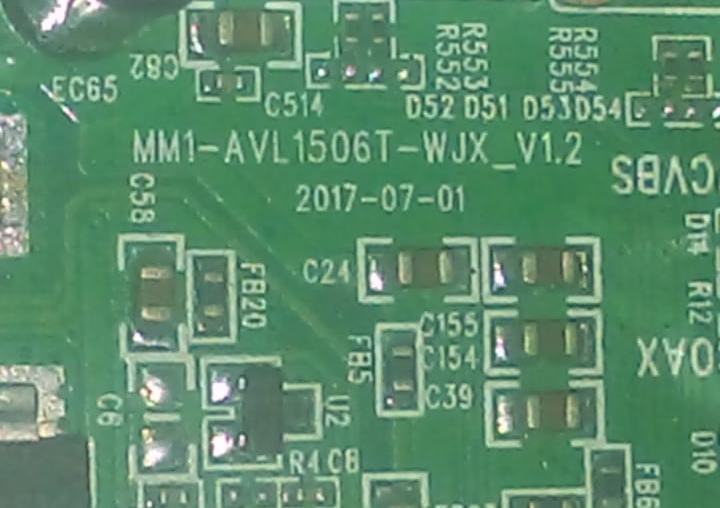

Main Board: MM1-AVL1506T-WJX_V1.2
Main Controller or Chipset: 1506T
Box Type: Digital Full HD
Flash Type: SPI SOP8/SOIC8
Flash Memory: GD25Q32B
Flash Size: 4 MB
Software Type: Backup Dump
Software Size: 3.54 MB
Download File Format: ZIP
Download Type: Free
Note:
Given ECHOLINK 2020 4K receiver software is a backup dump file and can be loaded by a Programmer or with a Loader tool in the dead receiver or can be upgraded/downgraded in the working receiver by the USB Upgrade method or with STB Upgrade Tool. Kazmi Elecom Team is not responsible for any type of damage/loss because of uploading/downloading the software.
ECHOLINK 2020 4K dump file free download.
