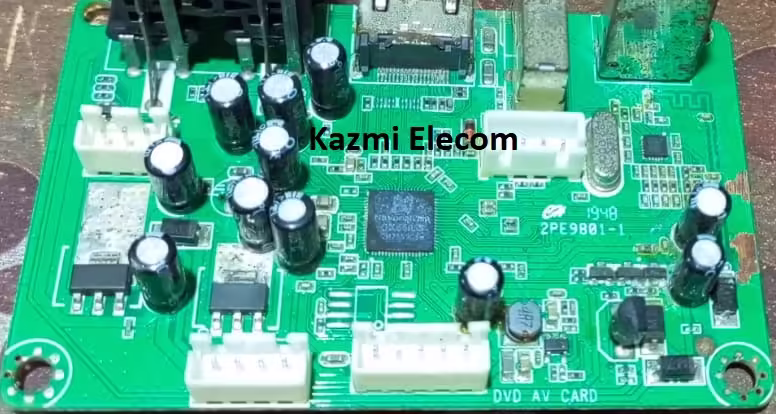

DVD AV CARD Satellite Receiver Board
DVD AV CARD is a Full HD digital satellite receiver board. LNB IN: antenna connection. HD OUTPUT: HDMI connection. RS232: connect to a computer. S/PDIF: digital audio output (optical output). USB 2.0: connection for external USB storage or will dongle. AV (VIDEO, AUDIO L, AUDIO R): connect to TV video and audio. IR: connect to LED cable. LNB IN: antenna connection. HD OUTPUT: HDMI connection. RS232: connect to a computer. S/PDIF: digital audio output (optical output). USB 2.0: connection for external USB storage or will dongle. AV (VIDEO, AUDIO L, AUDIO R): connect to TV video and audio. IR: connect to LED cable. DVB-S/DVB-52 Satellite Compliant (MPEG-II/MPEG-IV/H.265).
DVD AV CARD is Blind Search supported; Multi satellite search, network search, and manual search. Variable aspect ratio(4:3, 16:9) with PAN&SCAN vector or letter BOX option. Output resolution: 480p60Hz 480i60Hz, 576p50Hz & 576i50Hz, 720p50&60Hz, 1080i 50&60Hz, OSD: True full color(32bits), 720x 576/12£30x 720(configurable). Storing memory: more than 100 satellites, 4000 transponders, and 8000 channels. 32 and more favorite groups and parental lock supported and supported program lock and favorite group edit Supported multi-language menu(English, French, Russian, Greek, Italian, Arabic, Persian, UK, Spanish, Turkish, German, etc). Multi-language audio. Multi-language DVB Subtitle output (Now/Next Daily, Weekly) Electronic Program Guide (EPG).
DVD AV CARD can support DiSEqC 1.0/1.1/1.2/1.3(USALS). SCPC & MCPC are receivable from Ku and C band satellites. Universal, Single, Single S & C Band Wideband LNB. Teletext output through OSD.
DVD AV CARD General Information:
Manufacturer: China

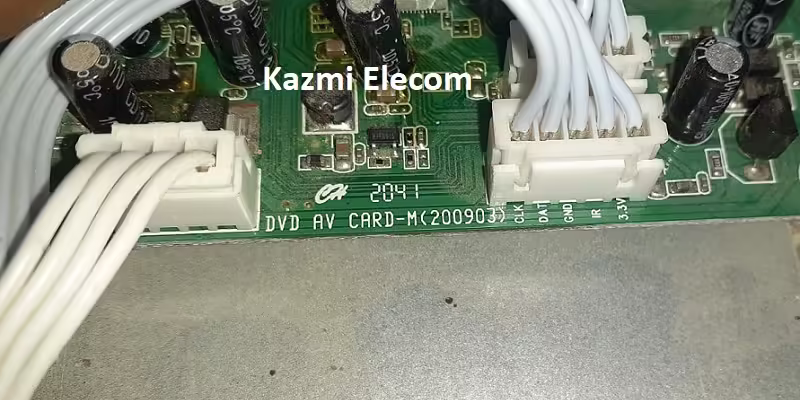

Board Model: DVD AV CARD, DVD AV CARD-M 200812
Main Board: DVD AV CARD
Main Controller or Chipset: GX6605
Hardware Version: HW203
Software Version:
Loader: SunPlus
Box Type: Digital Full HD
Flash Type: SPI SOP8/SOIC8
Flash Size: 4 Mb (ROM)
RAM: 512 MB DDR3
Software Type: Backup Dump
Software Size: Mb
Download File Format: ZIP
Download Type: Free
Technical Specifications and Features:
- Fully DVB-S2/MPEG2/MPEG-4 H.264/AVC Compliant.
- 6,000 Channel Capacity.
- Dual Core Main CPU.
- Flash Memory: 4MB, DDR RAM:256MB.
- Displaying both “HD & SD” Channels and Media Contents.
- Operating System: RTOS. & “Next”. 32Bits HD Quality Unique.
- OSD and Graphic Supporting.
- Super-Fast Setting & Using.
- 3D to 2D Conversion Capability.
- Teletext & Subtitle & Multi-feed Support.
- SELL to IP supporting.
- Two Channels Simultaneously Recording.
- Recording TV Channels and Timeshift Functions through USB Devices.
- Playing Different Video and Music Files, Displaying Pictures.
- 1920x1080p, 1920x1080i, 1280×720, 720×480 Video Resolutions Option.
- 260 mm Front Panels with “8-Digit” VFD Display.
- Outputs: HDMI. Output, Analogue Output (3 x RCA – CVBS, L, R Stereo Audio).
- Coaxial Digital Audio Output -SPDIF.
- Smart Card Reader (CA).
- Tuner Loop Through Output.
- Ethernet Interface RJ-45 10M/100M.
- Dual USB 2.0 Ports for simultaneously using USB HDD and USB.
- Wi-Fi Device (RT5370) (MTK 7601).
- 3G USB.
- Modem Supporting and Video On Demand (VoD) Supporting.
- Firmware upgrades via USB ports, RS-232, and networks are supported.
- Operating Voltage: 100VAC~240VAC 50Hz/60Hz
- Digital HD Satellite Receiver.
- DVB-S2/MPEG2/MPEG-4 H.264/AVC, Full Compatibility.
How to Load with Programmer:
- Download the given DVD AV CARD Dump file
- Unzip the file to the folder
- Copy the bin file to the USB disk or keep it on the hard disk
- Remove the Flash IC from the Receiver PCB board
- Connect the programming tool
- Put the Flash ic on the Programmer
- Write the Flash ic with the required dump file
- Resold it back to the receiver motherboard
- On the receiver Now it’s working
Note:
The DVD AV CARD receiver software provided below is a backup dump file. It can be loaded using a programming tool or a loader tool on a non-functional receiver, or it can be used to upgrade or downgrade the SPI Flash Memory of a functioning satellite receiver through the USB upgrade process or the RS232 upgrade tool. Please note that the Kazmi Elecom Team is not liable for any damage or loss that may occur from uploading or downloading the software. Always ensure you have a backup before loading the USB software or writing to the SPI flash memory. For more Dump Files Visit Here.
