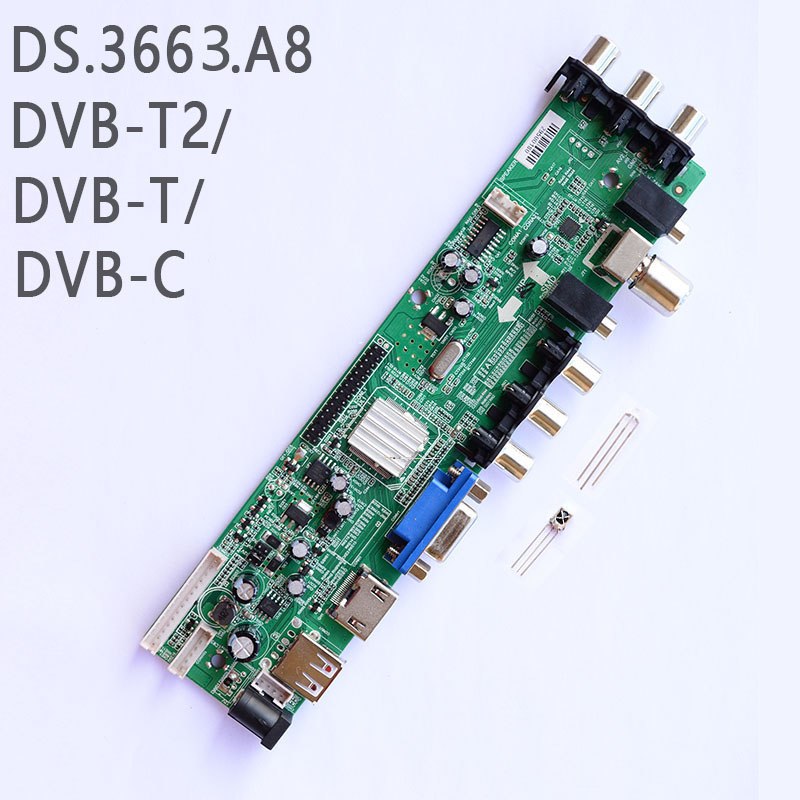

DS.D3663LUA.A8-1-A LED Driver Board
DS.D3663LUA.A8-1-A V56 V59 Universal LCD/LED Driver Board that Support DVB-T2, DVB-T, and DVB-C digital TV. DS.D3663LUA.A81 is a universal Controller 3663 that gives the opportunity to build on the base of the laptop or monitor matrix full multimedia TV C T-2 tuner on board without depriving themselves of the opportunity of using it as a monitor. DS-D3663LUA-A8 is Suitable for Europe, Africa, The five Central Asian countries, the Middle East, Russia, Thailand, Myanmar, Kenya, Portugal, Malta, Uganda, and other countries or regions.
General Specifications:
Mark/Model: DS.D3663LUA.A8-1-A
Main Chip: LUA63A81
TV tuner chip: Rafael R842
Screen Supported: 15-32 inch
Screen Resolution: 1920×1200
Audio Output Power: 2x8W
Video Input: TV: DVB-T / T2, DVB-C, ANALOG TV (ATV), HDMI, VGA, AV IN, YPbPr
Additional Inputs Outputs: Audio mini jack 3.5mm and USB interface
Power Input: DC 12V 4A
Power Consumption: operating mode -> = 6W
Standby mode simple – <0.3W
Factory Mode:
Input 2580
USB slot can be used for updating software and playing multimedia, such as Movie, MP3 and JPEG. Doesn’t support audio AC3 720P, If the sound doesn’t play via USB, You can recode the audio track.
How to Upgrade:
- Put the firmware of “LU A63A81.bin” in formatted USB flash disk
- Insert the USB disk and connect the 7KEY-Button to the board
- After turn on the power, the light of the 7key button will be Red then flash red and blue.after about 1
minute, the light stop flashing, it means upgrade has finished. - Note that during write programs do not power off, crashing won’t be able to use
Note: The following given software/firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download DS.D3663LUA.A8-1-A Firmware Files:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Here are below DS-D3663LUA-A8-1-A Firmware of All resolutions for free download:
| S.NO. | BOARD NAME/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | DS.D3663LUA.A8-1-A_1024x768 | Download |
| 2 | DS.D3663LUA.A8-1-A_1280x768 | Download |
| 3 | DS.D3663LUA.A8-1-A_1280x1024 | Download |
| 4 | DS.D3663LUA.A8-1-A_1366x768 | Download |
| 5 | DS.D3663LUA.A8-1-A_1440x900 | Download |
| 6 | DS.D3663LUA.A8-1-A_1600x900 | Download |
| 7 | DS.D3663LUA.A8-1-A_1600x1200 | Download |
| 8 | DS.D3663LUA.A8-1-A_1680x1050 | Download |
| 9 | DS.D3663LUA.A8-1-A_1920x1080 | Download |
| 10 | DS.D3663LUA.A8-1-A_1920x1200 | Download |
