DPD-TV956A-V1.1 Software Free Download

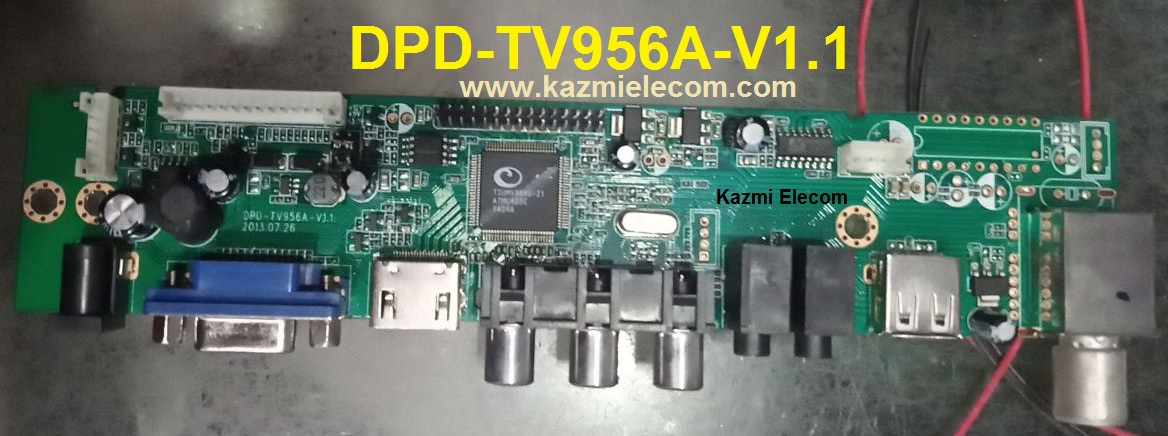

DPD-TV956A-V1.1 Universal Board

DPD-TV956A-V1.1 is a small universal LCD/LED TV Driver Controller Board with DC input power and Jumper cap setting for Panel VCC.

Basic Info:

Model No. DPD-TV956A-V1.1

Main Chipset: TSUMV59XU-Z1

Trademark:

Display Format: up to 1920×1200

Aspect Ratio: 4:3, 16:9 & 16:10

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohms)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

1. Copy the Required Firmware/software into the FAT32 USB Disk
2. Plugin the U disk into the Mainboard USB port of the LCD/LED TV
3. Switch ON the power and Wait even IR indicator led flashing in the speed
4. Done. Unplug the U-disk (It will take a max of 1 min to upgrade firmware)
5. It continues to flash and never stops. This is normal, just wait about 1 minute, this means that the update is complete. Then turn off and turn off the u-disk

Factory Service Mode:

Menu+1147

Note:

If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download your required software and then extract it you will get the folder. Now copy the files to USB or load them with Programmer. For More Detail about the download process, watch the video Click Here

DPD-TV956A-V1.1 Firmware Files Free Download:

• DPD_TV956A_V1.1_1280x1024_2MB
• DPD_TV956A_V1.1_1280x1024_4MB
• DPD_TV956A_V1.1_1440x900_2MB
