CVMV29L-F Universal Board

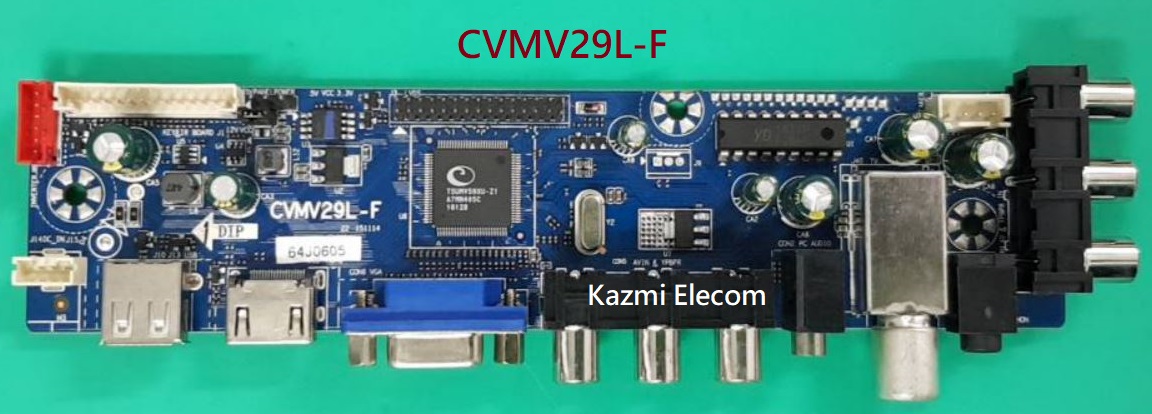

CVMV29L-F is a universal LCD/LED controller board that is suitable for any type of screen or panel. CVMV29L_F is available in the market with two different board colors one is green and the other is blue. CVMV29L.F Green board has a single AV and the Blue board has dual AV input. It can support up to 26-inch LCD panels whose resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software upgrades as well.

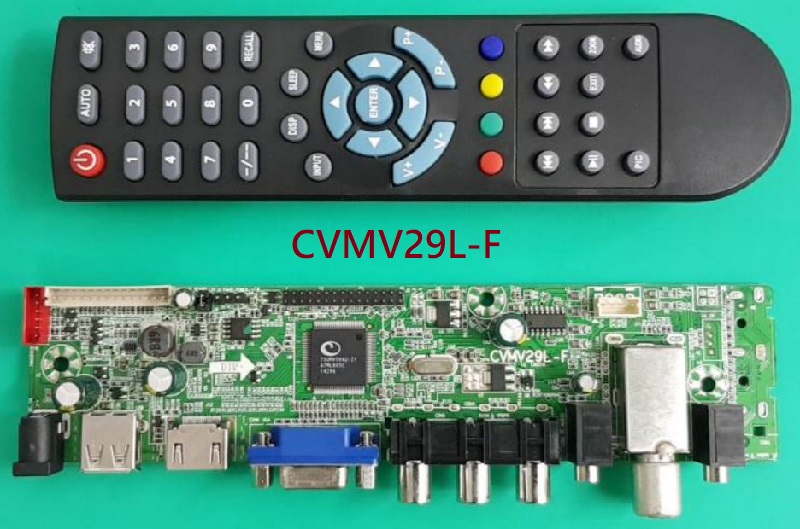

CVMV29L-F launched in the market with two different versions. One is a green board that has one component input only and the other is the blue board that has a dual component input interface for connecting analog devices. Both boards are different according to their hardware such as the sound chip.
General Specifications:
Model: CVMV29L-F
Main Chipset: TSUMV59XU & TSUMV59XU-Z1
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohm)
Panel Voltage: +3.3V, +5V, +12V DC
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
Factory Service Mode:
Menu+1147
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
CVMV29L-F Firmware All resolutions Free Download Here :
| S.NO. | BOARD/DESCRIPTION | D.LINK.1 | D.LINK.2 |
|---|---|---|---|
| 1 | CVMV29L-F_1366x768_Samsung_Backup Dump | Download | |
| 2 | CVMV29L-F_1366x768_Sony_Backup Dump | Download | Download |
| 3 | CVMV29L-F_1920x1080_Samsung_Backup Dump | Download | |
| 4 | CVMV29L-F_1920x1080_Sony_Backup Dump | Download | |
| 5 | CVMV29L-F_DEXP 16A3000_Backup Dump | Download | |
| 6 | CVMV29L-F_DEXP 19A3000_Backup Dump | Download | |
| 7 | CVMV29L-F_DEXP 22A7000_Backup Dump | Download | |
| 8 | CVMV29L-F_DEXP F22B3000E_Backup Dump | Download | |
| 9 | CVMV29L-F_DEXP H16B3000ED_Backup Dump | Download | |
| 10 | CVMV29L-F_DEXP H24C3000E_Backup Dump | Download | |
| 11 | CVMV29L-F_ERGO LED22D5_Backup Dump | Download | |
| 12 | CVMV29L-F_MYSTERY MTV_1628LW_Backup Dump | Download | |
| 13 | CVMV29L-F_MYSTERY MTV-1629LW_Backup Dump | Download | |
| 14 | CVMV29L-F_SUPRA STV-LC16741WL_Backup Dump | Download | |
| 15 | CVMV29L-F_Telefunken TF-LED19S28_Backup Dump | Download |
Cordial saludo sres sankey miTv sankey cvmv29lf se conecta tiene el LED rojo encendido y a la media hora enciende
cada vez qué se apaga sucede lo mismo.
Gracias. Espero repuesta
hardware issue. check main baord
السلام علیکم کیا حال ہے اپ کا اچھا اس موڈ میں اپ کے پاس کوئی میرر کا سافٹ ویئر ہے تو اگر ہے تو بتائیں
Confirm nai hy. apko one by one try karna hoga
sony 1366×768 file error * Couldn’t generate direct link
alternate link placed
Mirror ni hai is me ?
V29/59 ME MIRROR NAI HOTA
sir mery pass sony bravia 24 inch hai, us main ye card laga howa hai. Pannel kharab ho gaya hai jissay market se led monitor dual channel display se replace karwaya hai. ab ye card support nahi kar raha
es ko kesay use karna hai. please help
kisi technician ko check karwa len
Does it support 1440×900 panel
yes if software available
Sir I have taken up with technician but remain unlucky and currently using T.VST 59.A81 card. I wish to use CVMV29L-F as it contain software of sony. Please help.
several boards have the sony software. ask your technician to change it
sir keya T.VST59.A81 main sony 24″ ka sofware ho sakta hai
ho to sakta hy per isme hy nai
Sir, ossywood led stand by not releasing
board me koi fault ho sakta hy
A.o.a….1440×900 panel chal sakta hai…plz guide
w.salam han g agar is resolution ka software ho to
Sir CVMV29L-F led tv 1366*768 software le nahi raha
dump file programmer se load hoti hy
sir cvmv29l-f card ap ka pass avalibel ha price kia ha as ke
Not available
