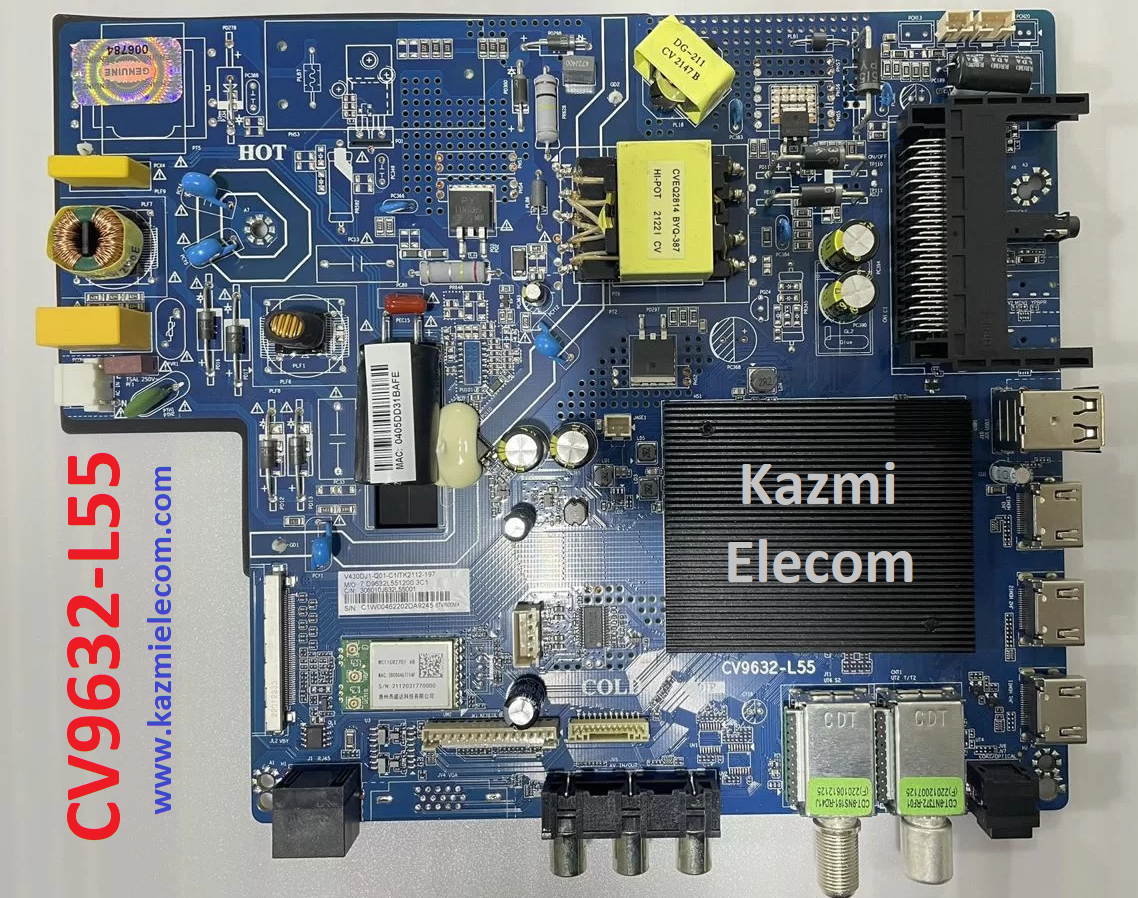

CV9632-L55 Smart Android Board
CV9632-L55 is an analog and digital 4K UHD smart android board with a resolution of 3840×2160 supported smart android board with the latest android version of 9.0 pie. CV9632_L55 is a universal without a backlight driver circuit and power supply module. CV9632.L55 can support many panel screens from 15.6 inches to 55 inches with the best picture quality. CV9632-L55 has multiple connectivity ports like AV, three HDMI, USB, and Digital Tuner input (DVB T/T2, S/S2).
Its special features are the E-Share, Bluetooth, Dolby, Mirroring option, WiFi support, and inbuilt Apps. CV9632-L55 firmware files are given below for the technician’s support.
General Specifications & Features :
Brand/Make: LCD/LED 4K Smart Driver Board
Model: CV9632-L55
Main Chip: MT9632
Supported Resolution: 3480×2160
Screen Format: 16:9
Chipset: MT9632
Platform: M7332
Operating System: Android 9.0 Pie
CPU: Cortex A53*4 64bit
GPU: G52(2EE)MC1
RAM: 1/1.5Gb
ROM: 8Gb
Sound Output: 10Wx2
Transmission: DVB-T/T2/S2
Video System: PAL/SECAM
Backlight Voltage: 56-153V
Backlight Current: 6800mA
Backlight Power: NA
AC Input: 110-220V
Firmware Name: CtvUpgrade.bin
Firmware Type: USB Upgradeable
Service Menu Code:
Product: DEXP, Hyundai
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
CV9632-L55 firmware files for free download:
- CV9632.L55 3840×2160-1.5G-8G-DEXP.part1
- CV9632.L55 3840×2160-1.5G-8G-DEXP.part2
- CV9632.L55 3840×2160-1.5G-8G-DEXP.part3
- CV9632.L55 3840×2160-1.5G-8G-HYUNDAI.part1
- CV9632.L55 3840×2160-1.5G-8G-HYUNDAI.part2
- CV9632.L55 3840×2160-1.5G-8G-HYUNDAI.part3
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
