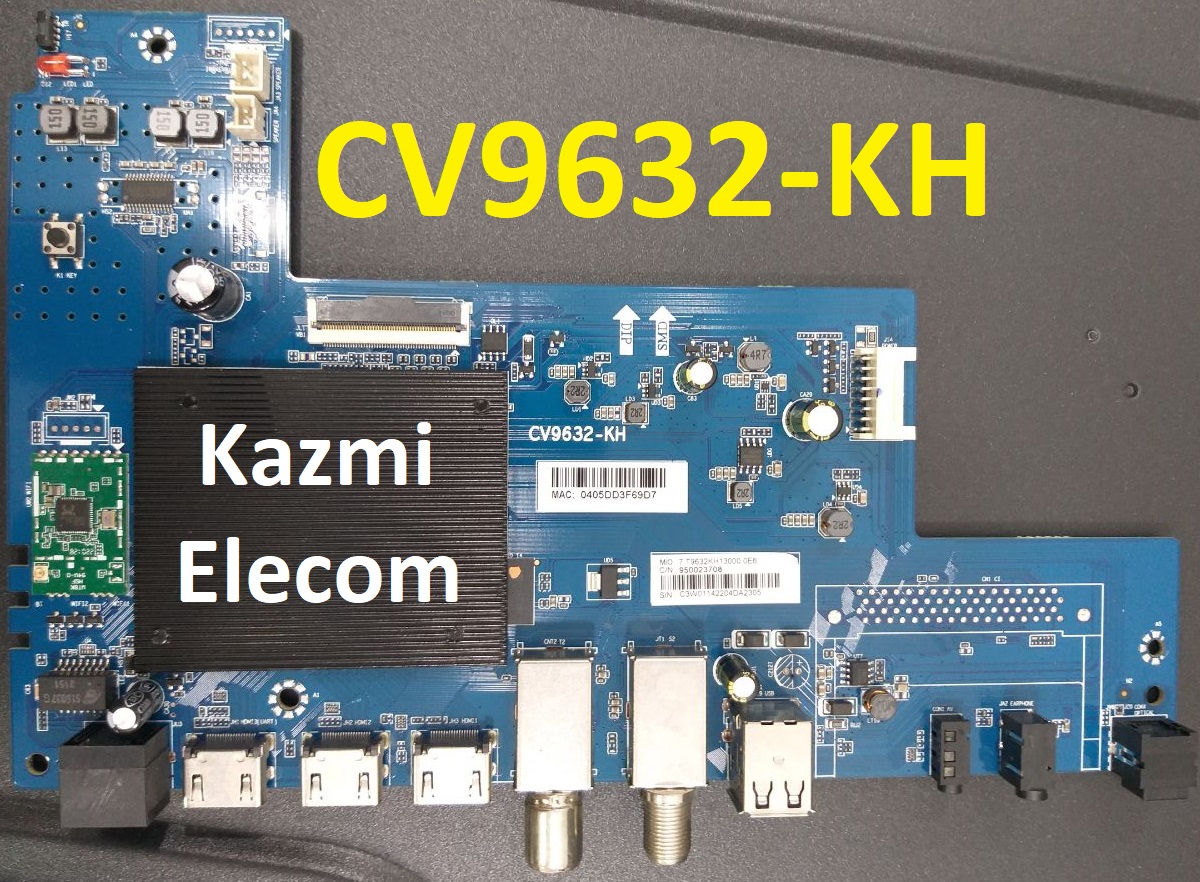

CV9632-KH Smart Android Board

CV9632-KH is an analog and digital 4K UHD smart android board with a resolution of 3840×2160 supported smart android board with the latest android version of 9.0 pie. CV9632_KH is a universal without a backlight driver circuit and power supply module. CV9632.KH can support many panel screens from 15.6 inches to 55 inches with the best picture quality. CV9632-KH has multiple connectivity ports like AV, three HDMI, USB, and Digital Tuner input (DVB T/T2, S/S2). Its special features are the E-Share, Bluetooth, Dolby, Mirroring option, WiFi support, and inbuilt Apps. CV9632-KH firmware files are given below for the technician’s support.

Download Here

General Specifications & Features :

Brand/Make: LCD/LED 4K Smart Driver Board

Model: CV9632-KH

Main Chip: MT9632

Supported Resolution: 3480×2160

Screen Format: 16:9

Chipset: MT9632

Platform: M7332

Operating System: Android 9.0 Pie

CPU: Cortex A53*4 64bit

GPU: G52(2EE)MC1

RAM: 1/1.5Gb

ROM: 8Gb

Sound Output: 10Wx2

Transmission: DVB-T/T2/S2

Video System: PAL/SECAM

Backlight Voltage: 56-153V

Backlight Current: 500-600mA

Backlight Power: NA

AC Input: 110-220V

Firmware Name: CtvUpgrade.bin

Firmware Type: USB Upgradeable

Service Menu Code:

Product: BBK, DEXP

Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware Files:

Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

CV9632-KH firmware files for free download:
