CV9632-B55 Firmware Free Download

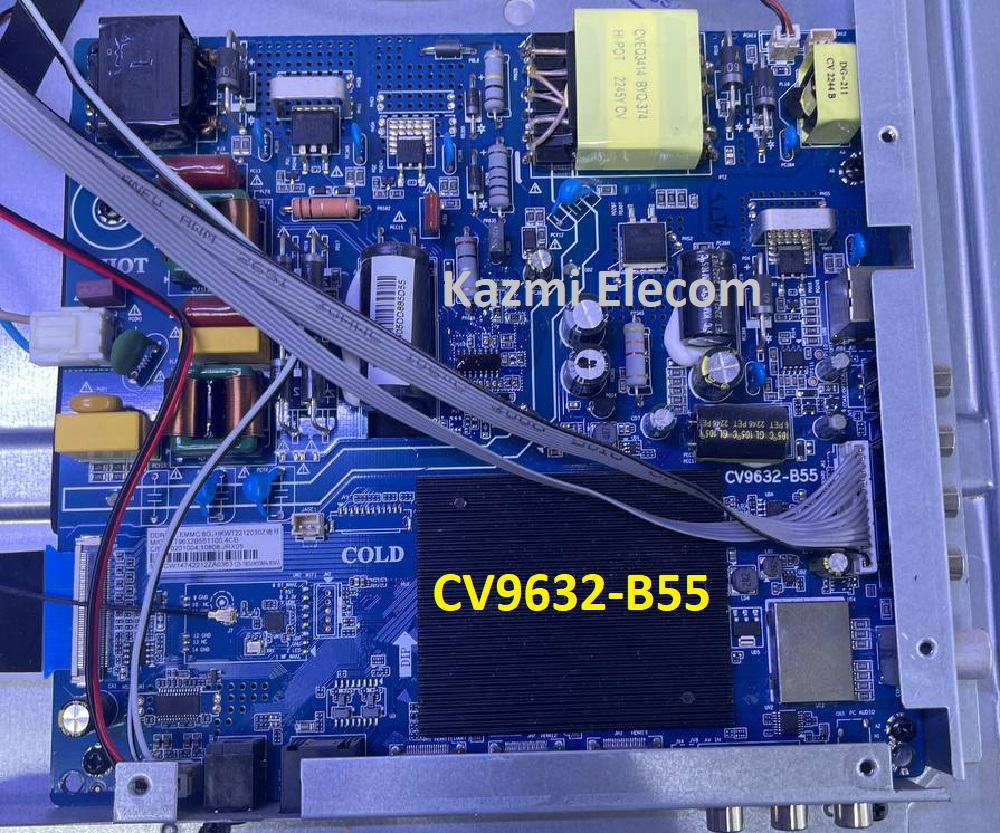

CV9632-B55 UHD Smart Board

CV9632-B55 is an analog and digital 4K UHD smart android board with a resolution of 3840×2160 supported smart android board with the latest android version of 9.0 pie. CV9632_B55 is a universal without a backlight driver circuit and power supply module. CV9632.B55 can support many panel screens from 15.6 inches to 50 inches with the best picture quality. CV9632-B55 has multiple connectivity ports like AV, three HDMI, USB, and Digital Tuner input (DVB T/T2, S/S2). Its special features are the E-Share, Bluetooth, Dolby, Mirroring option, WiFi support, and inbuilt Apps. CV9632-B55 firmware files are given below for the technician’s support.

Download Here

General Specifications & Features :

Brand/Make: LCD/LED 4K Smart Driver Board

Model: CV9632H-M42

Main Chip: MT9632EAATDB

Supported Resolution: 3480×2160

Screen Format: 16:9

Chipset: MT9632

Platform: M7332

Operating System: Android 9.0

CPU: Cortex A53*4 64bit

GPU: G52(2EE)MC1

RAM: 1/1.5Gb

ROM: 8Gb

Sound Output: 10Wx2

Transmission: DVB-T/T2/S2

Video System: PAL/SECAM

Backlight Voltage: 56-153V

Backlight Current: 500-600mA

Backlight Power: NA

AC Input: 110-220V

Firmware Name: CtvUpgrade.bin

Firmware Type: USB Upgradeable

Service Menu Code:

Product: BENKON

Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware Files:

Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

CV9632H-M42 firmware files for free download:
