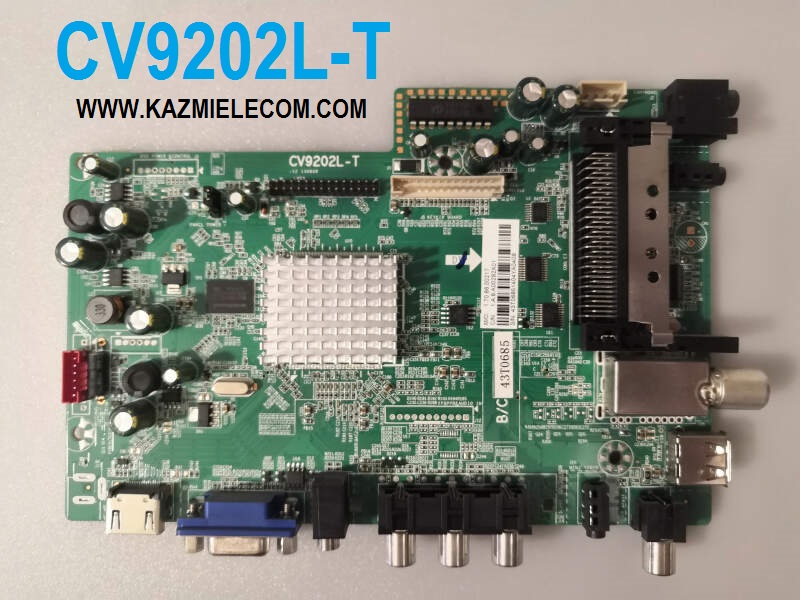

CV9202L-T LED TV BOARD
CV9202L-T is a simple ATV Driver Motherboard designed for LCD/LED TVs. CV9202L.T board is suitable for the Asia Pacific and the Middle East markets.CV9202L_T is a Combo Board. The main power module and LED Backlight Inverter Circuit module are required separately for this board, and ATV Card is builtin into the motherboard. CV9202L_T has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.CV9202L-T firmware files are given below for the technician’s support. If you are facing any issues during firmware installation then visit and read here first.
General Specifications:
Brand/Mark: Universal Board
Model: CV9202L-T
Main Chip: SPV9202BD
Product: LED TV
LED Backlight: NA
Flash IC: 8 Mb
Screen supported: 18-26 inch
Resolution: Up to 1920×1080
Panel Voltage: 12V
Power Input: 220V AC
Service Code:
Source/Input+2580
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
CV9202L-T firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV9202L-T_1366X768_AIWA_DUMP | Download |
| 2 | CV9202L-T_1366X768_BBK_DUMP | Download |
| 3 | CV9202L-T_1366X768_FUSION_DUMP | Download |
| 4 | CV9202L-T_1366X768_SHIWAKI_DUMP | Download |
| 5 | CV9202L-T_1366X768_SUPRA_DUMP | Download |
| 6 | CV9202L-T_1920X1080_BBK_DUMP | Download |
| 7 | CV9202L-T_1920X1080_DEXP_DUMP | Download |
| 8 | CV9202L-T_1920X1080_FUSION_DUMP | Download |
| 9 | CV9202L-T_1920X1080_GOLDSTAR_DUMP | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
