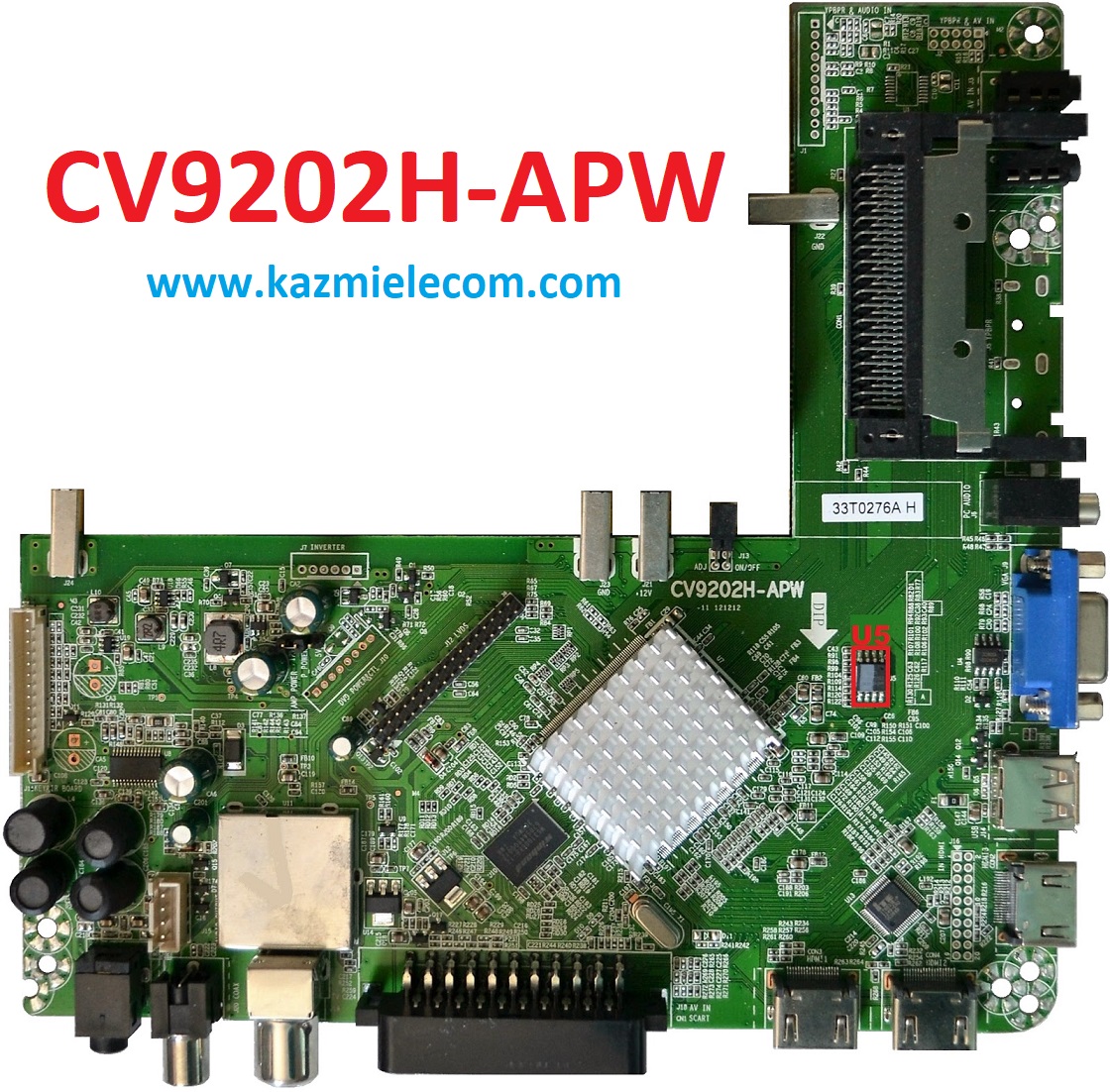

CV9202H-APW LED TV Board
CV9202H-APW is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets. This is a Non-Combo Board. The main power module and LED Backlight Inverter Circuit module are required separately but ATV Card is built into this motherboard. This board has all the features and user interface as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.CV9202H-APW firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: CV9202H_APW
Main Chip:
Product: LED TV
LED Backlight: mA
Flash IC: 4 Mb
Sound Chip:
Tuner IC:
Screen supported: 24-32 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 12V DC
Service Code:
Source/Input
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.
CV9202H-APW firmware for free download:
- CV9202H.APW AKIRA-32
- CV9202H.APW FITCO-32
- CV9202H.APW GOLDVISION-28
- CV9202H.APW GOLDVISION-32
- CV9202H.APW VORTEX-32
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
Table of Contents:
I HAVE GOLDVISION 3296A
MAINBOARD CV9202H-APW
PANEL BOE HV320WXC-200
I TRIED MANY DUMPS BUT I HAVE SAME PROBLEM LVDS LIKE VESA AND JEDIA
I TRIED SERVICE MENU BUT NO OPTION TO CHANGE PANEL TYPE
PLEASE GIVE ME A SOLUTION
I HAVE THE SAME MODEL DUMP BUT WITH DIFFERENT MAINBOARD. I UPLOADED SOME DUMP FILES FOR GOLDVISION WITH SAID BOARD THAT I HAVE. TRY THEM BOTH 32 AND 28. IF YOUR PROBLEM NOT SOLVE THEN REPLY
I TRIED THEM ALL BUT THE SAME PROBLEM
I CAN NOT CHANGE PANNEL TYPE IN TE SERVICE MENU
THE CHECKLIST MENU IS READ ONLY
I ALSO TRIED AKIRA AND FITCO AND VORTEX
ALSO TRIED BOTH 32 MODELS AND 28 TOO
I USED MENU 9200 TO ENTERING SERVICE MENU
PLAESE HELP
THANKS
