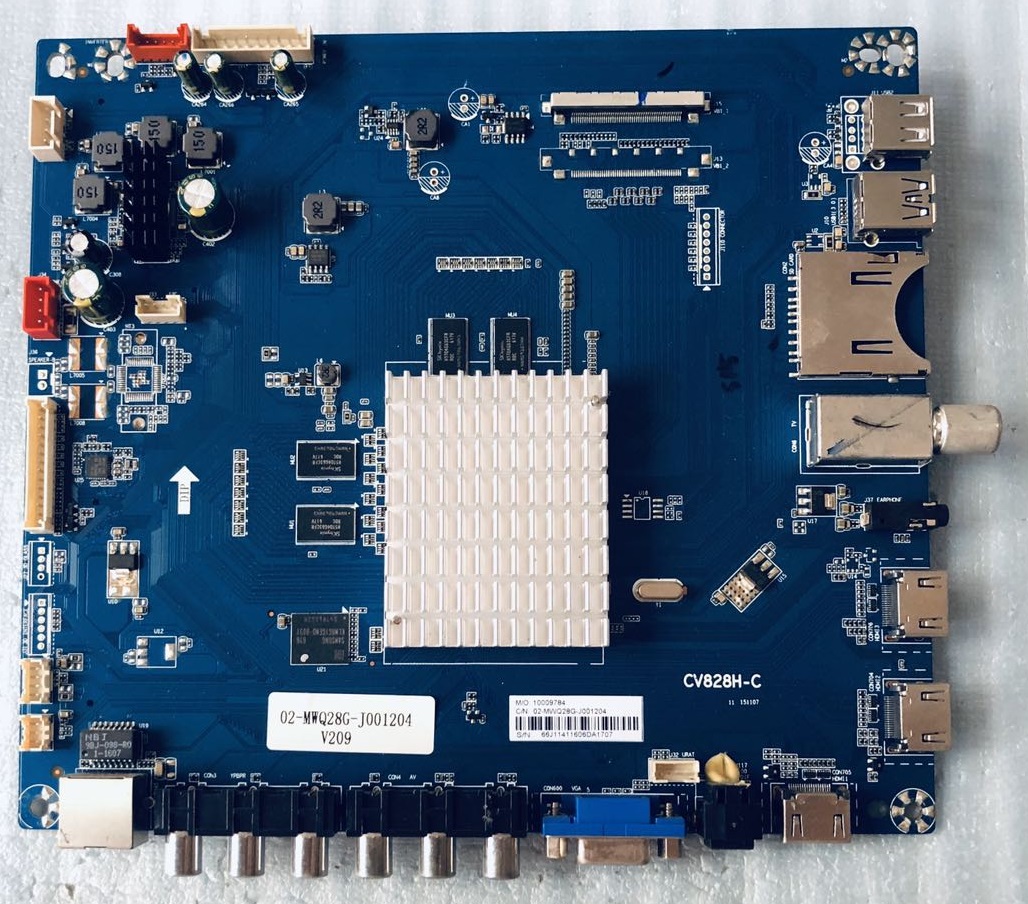

CV828H-C UHD Tv Board
CV828H-C is a 4K UHD Smart LED TV Board with a supported resolution of 3840×2160. It Can support Digital Tuner. CV828H_C has digital tuners of DVB-T / T2 and DVB-C standards that provide reliable reception of analog and digital channels. It has also the availability of wired and wireless Internet access.
CV828H-C has multiple HDMI and USB interface Inputs. HDMI interface is responsible for the optimal quality of the video content when interacting with various devices. The VGA connector allows you to use your TV as a monitor, and there are USB2.0 and USB3.0 ports for playing HD video, audio files, and photos from removable media and updating software. It can support 42-65-inch screen panels. CV828H-C is not a three-in-one (Combo) board so, the external power supply module and inverter board will be required for a complete set.
General Specifications:
Brand/Mark: Cultura View Network Smart UHD LED TV Board
Main Board: CV828H-C
Chipset: MSD6A828
OS: Android 5.0.1
CPU: Dual Core
Ram: 1Gb DDR
Rom: 8Gb eMMC
Input Signal: Analog and Digital DVB-T, DVB-T2, DVB-C
Inputs: AV, Component, VGA, HDMI x2, USB x3, Ethernet (RJ-45), Wi-Fi 802.11n, Miracast
Resolution: up to 3840×2160
Audio Output: 16 W (2×8 W)
Firmware Name: CtvUpgrade.bin
Firmware Type: USB Upgradeable
Product: CANTV W55, CANTV U65
Service Code:
Menu+1147, Input+2580
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download CV828H-C Firmware Files:
Download all parts of the following given CV828H-C firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
How to Install:
- Transfer the required resolution file into the Empty FAT32 USB Disk
- Plugin the U-Disk into USB interface on Main Board
- Keep Pressing the Power/Standby button and Switch ON the Power
- Wait until the red light starts flashing, then release the power button
- Note: USB file must be the name of “CtvUpgrade.bin”
