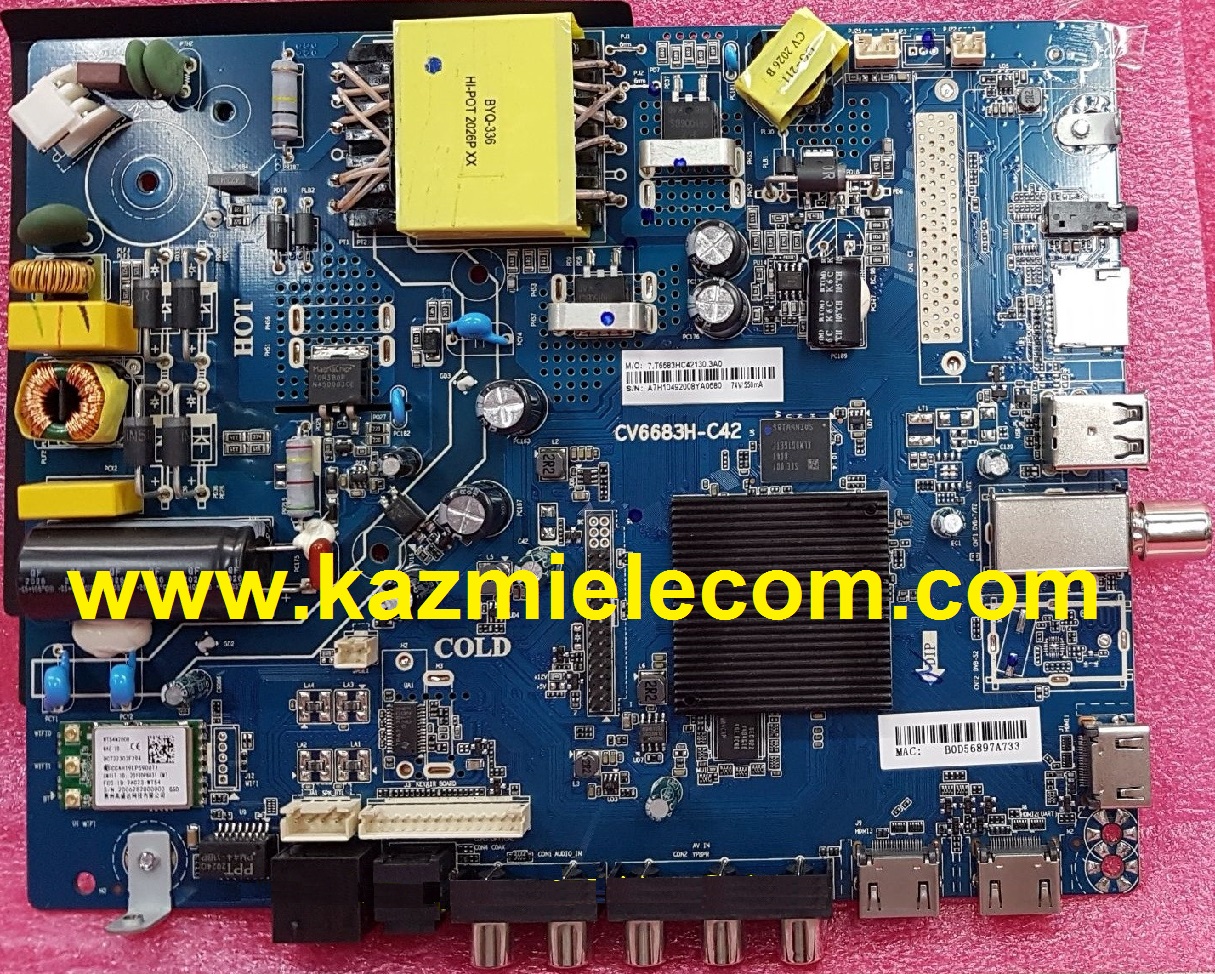

CV6683H-C42 Android Smart Board
CV6683H-C42 is an android network driver smart led tv board with an FHD resolution of 1920×1080. CV6683H_C42 has a powerful wifi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. CV6683H C42 Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports as well but without VGA connectivity.
CV6683H-C42 has a LAN/RJ45 Connector interface port also for the wired internet network. CV6683H_C42 is a Combo Network Triple play board that has a Digital TV tuner built-in it. The Graphics and Sound quality of the CV6683H.C42 android board are very good and the Response rate is very efficient. CV6683H-C42 china smart network board can support LED Screen Panels. CV6683H-C42 firmware is available for technician support.
General Specifications:
Brand/Make: LCD/LED Smart Driver Board
Model: CV6683H-C42
Chipset: CV6683BOHA
Supported Resolution: 1920×1080
Screen Format: 16:9
Operating System: Android 9.0
CPU: ARM A53*4@1.1GHz
GPU: Mali 470 MP3
RAM: 1 GB DDR3
ROM: 8Gb
Sound Output: 10Wx2
Backlight: 27~74 V 600mA (Depends upon Hardware)
TUNER: Analog & Digital Tuner DVB-T2
Video System: PAL/SECAM/NTSC
Power Input: 100-240 V AC
Power Consumption: 80W
Standby Power: 0.5W
Firmware: upgrade_no_tvcertificate.pkg
Firmware Type: USB Updateable Firmware
Product User: HAIER PAKISTAN
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
CV6683H-C42 firmware file for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV6683H-C42_1366X768_1G_8G_HAIER.part1 | Download |
| CV6683H-C42_1366X768_1G_8G_HAIER.part2 | Download | |
| CV6683H-C42_1366X768_1G_8G_HAIER.part3 | Download | |
| CV6683H-C42_1366X768_1G_8G_HAIER.part4 | Download | |
| CV6683H-C42_1366X768_1G_8G_HAIER.part5 | Download | |
| CV6683H-C42_1366X768_1G_8G_HAIER.part6 | Download | |
| CV6683H-C42_1366X768_1G_8G_HAIER.part7 | Download | |
| CV6683H-C42_1366X768_1G_8G_HAIER.part8 | Download | |
| 2 | CV6683H-C42_1920x1080_1G_8G_HAIER.part1 | Download |
| CV6683H-C42_1920x1080_1G_8G_HAIER.part2 | Download | |
| CV6683H-C42_1920x1080_1G_8G_HAIER.part3 | Download |
sir me ne samsung 32 inch screen me hair ka cv6683h-c42 bord lgaya hai lekin screen mirror karni rotate karni wo kease ho sakte hair ke service code me option nahi aa raha ab kease rotate karon
agar service menu me nai to phir tcon se hoga
Sir Haier le32k6600ga software please
Haier 32 HD ready tv .panel black after flash with this file. . Previous problem is restart
panel mismatch. if you are a technician check display with other panel and change panel setting
Sir mani cv6683h-c42 software tv ma dala tv burning mode me chale gaye ab Kay Karu ?
panel resolution mismatch hogi. original software search kar k load karen
Sir original software nhi mil raha aap ke paas hai to please send karo do
kiska??
CV6683H-C42 resolation 1920*1080 not found sir. plz help me if you can. thanks a lot
brand/model se google kar len
cv6683h-c42 need non hd pallel software resolution 1366*786
cv6683h-c42 software 1920/1080 resolation not found in google plz help me . i am from bangladesh
for haier. i share
Sir jo apne 1366.768 likha vo 1920.1080 hai or 1920.1080 vali file 1366.768 hai plz name thik karde
model-croma
model no.crel7351 40INCH
PCB NO.CV6683H-C42
Thank you
okay…. i just want t try the software
Sir
I have changed a new LG pannel for Haier Model No LE32K6600GA & Mother board No CV6683H-C42 Now i am facing the problem of reverse image and mapping problem . Kindly provide Eprom Program or any other method to clear the issues
check datasheet of panel and bypass
cv6683h c42 software
