CV6681-L42 Firmware Free Download

CV6681-L42 Smart Android Board

CV6681-L42 is an Android network driver smart LED TV board with an FHD resolution of 1920×1080. CV6681_L42 has a powerful wifi system. Smart FHD TV With Android Platform and great features to entertain Full HD Wide Screen with better-to-work SMART. CV6681 L42 Smart Board has multiple A/V ports, USB interface ports, and many HDMI ports, in addition to SCART. VGA interface is not available on this board. CV6681-L42 has a LAN/RJ45 Connector interface port for the wired internet network.

Download Here

CV6681.L42 is a Combo Network triple-play board with a Digital TV tuner built-in (digital terrestrial receiver). The Graphics and Sound quality of the CV6681.L42 Android board is very good, and the Response rate is very efficient. The CV6681.L42 China smart network board can support up to 39″ LED Panels. The CV6681.L42 firmware file is available for technician support.

CV6681-L42 General Information:

Board Model: CV6681-L42

Main Chipset:

CPU: Quad-Core

GPU: Dual-Core

Smart Platform: Android

Resolution: 1920×1080

Audio Power: 2x6W (12 watts)

Backlight Current: 600 mA

Backlight Voltage Range: 40-114 Volt

USB Ports: 2

HDMI Ports: 3

CI: Yes

Component: Yes

RJ45: Yes

Analog Tuner: PAL, SECAM, NTSC

Digital Tuner: DVB-T / T2, DVB-C

Wifi: Yes

Mira-Cast:

Memory (RAM): 1GB DRAM

Storage (ROM): 8 GB EMMC Flash

EMMC: THGBMFG6C1LBAIL

Power Rating: 110V~240V 50/60Hz

Power Consumption: 65Watt

Firmware Name:

Firmware Type: USB Bootable and EMMC Backup Dump

Product Users: IRIS, SKYWORTH

CV6681-L42 Technical Specifications:

Resolution 1920×1080 Full HD
HD support HD
LED backlight DLEDD
Response time 8 ms
Display scale 16:09
Stereo sound Yes
Matrix type LED
Refresh rate 60 Hz
Processor frame Quad core
GPU Dual core
OS version Smart
RAM (DRAM) 1GB
ROM (Flash) 8GB
WIFI 2T2R
HDMI 2.0 (HDCP 2.2) 3
HDMI CEC (T-link) Full
Caption (Subtitle) Yes
USB HID support Yes
USB channel list clone Yes
USB 2.0 2
Teletext there is
ATV PAL, SECAM, NTSC
DTV DVB-T / T2, DVB-C
Sound power 6w+6w
Acoustic system Buffer speakers
DOLBY DIGITAL there is
Supported formats MP3, WMA, MPEG4, MKV, JPEG
Social Applications Yes
Web browser Yes
Processor Quad Core
WiFi sharing Yes
Voice Control Yes

How to Write CV6681-L42 EMMC Backup:

Download the given CV6681_L42 EMMC backup shared in this post below

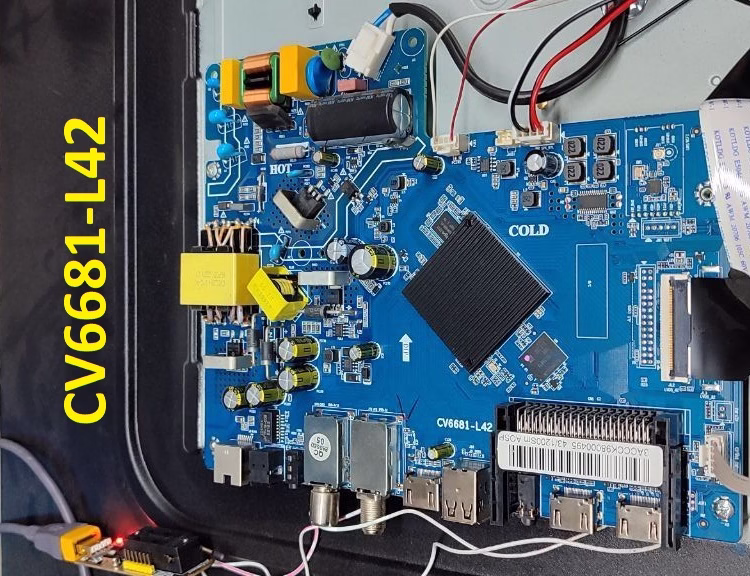

Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following CV6681_L42 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files or are facing any issues during firmware installation, then visit and read here first.
