CV6486H-A42 Smart Android Board

CV6486H-A42 is a 2K FHD Linux TV driver board with a support maximum resolution of 1920×1080 Full HD. CV6486H_A42 is dedicated to 50/60 Hz screens. UHD TV With features to entertain ultra HD Wide-Screen. CV6486H_A42 has the full features of input interface connectivity. It has multiple ports like HDMI, AV, Headphones, VGA interface, Scart, Coaxial Out, USB ports, and RJ45 Ethernet port for wired internet connectivity. Its USB interface can be used for Firmware upgrades and multimedia playback. This is a North American Linux System with a supported screen size of 32-43 Inch LED TVs Analog and Digital TV Control Board SKD TV Mainboard With 800mm Wifi Antenna.

Download Here

CV6486H.A42 is a digital and analog TV board, it can receive analogtelevision (PAL, NTSC, SECAM) and digital television (DVB-T) signals. The CV6486H_A42 USB Upgrade Firmware file is given below for Technician’s support. CV6486H.A42 Mainboard is used for different Brands of HD LED TVs and FHD TVs as well.

General Features:

Model Name: CV6586H-A

Resolution: 1920×1080

Processor: Dual Core

RAM: 512M

ROM: 4 GB

Aspect Ratio: 16:09

Audio Power Output: 16w (8×2)

System: PAL//SECAM

Tuner: NA

HDMI: 3

USB Ports: 2

VGA: Yes

SPDIF: Yes

LAN: Yes (RJ45)

Firmware: NA

Firmware Type: EMMC Backup Dump

Service Menu Code:

Input/Source 2580 OR Menu 1147 are common factory codes. For more Service Menu Codes visit Here.

Technical Specifications:

Resolution HD(1366*768), HD1080(1920*1080), HD720(1280*720), NTSC(720*480), PAL(768*576)
Screen Size 43inches (Max)
Display Format 1080p (Full-HD)
Interface Type VGA, Toslink, USB, RJ45, HDMI2(ARC), HDMI1, PC Audio, TV, Earphone, HDMI3, AV&YpbPr, USB2
Receiving System PAL, NTSC, SECAM
Type LCD LED
Use Hotel TV
Wide Screen Support Yes
Place of Origin Guangdong, China
Brand Name Creative
Model Number CV6486H-A42
Product Name Linux TV control board
Panel Type LCD
Panel Resolution Max.1920*1080
Panel Interface LVDS
TV Type ATV, DTV
Wifi Antenna Length 800mm
Backlight Voltage 45-70V
AC Input Voltage 90-264V
Standby <1W(support wifi wake up)
Receiving range
CH2~CH69 AIR CH1~CH135 CABLE
Input Impedance 75Ω
Video System MPEG-2MP@HL
Channel Bandwidth 6MHz
Modulation ATSC:8VSB QAM:64QAM, 256QAM
Sound System AC-3 PC
Video Level 0.7Vp-p@75ohm Format Max SXGA@60Hz
AV Color system PAL/NTSC/SECAM
Video Level 1Vp-p@75ohm
Keyboard Power，Menu，Source，CH+，CH-，VOL+，VOL

How to Write EMMC Backup:

Download the given CV6486H-A42 EMMC backup shared in this post below

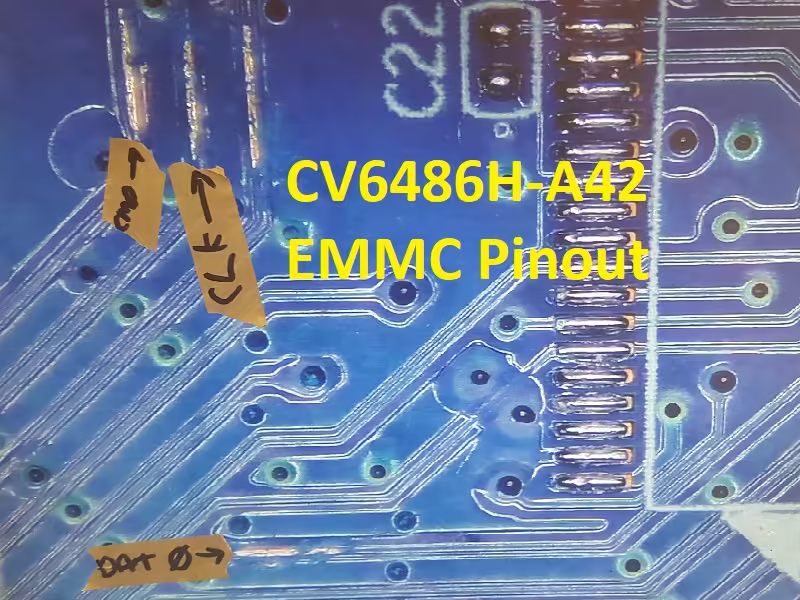

Note the EMMC Pinouts in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following firmware is a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
