CV628H-T42 Software Free Download

kazmielecom 16 Comments 8,854 Views

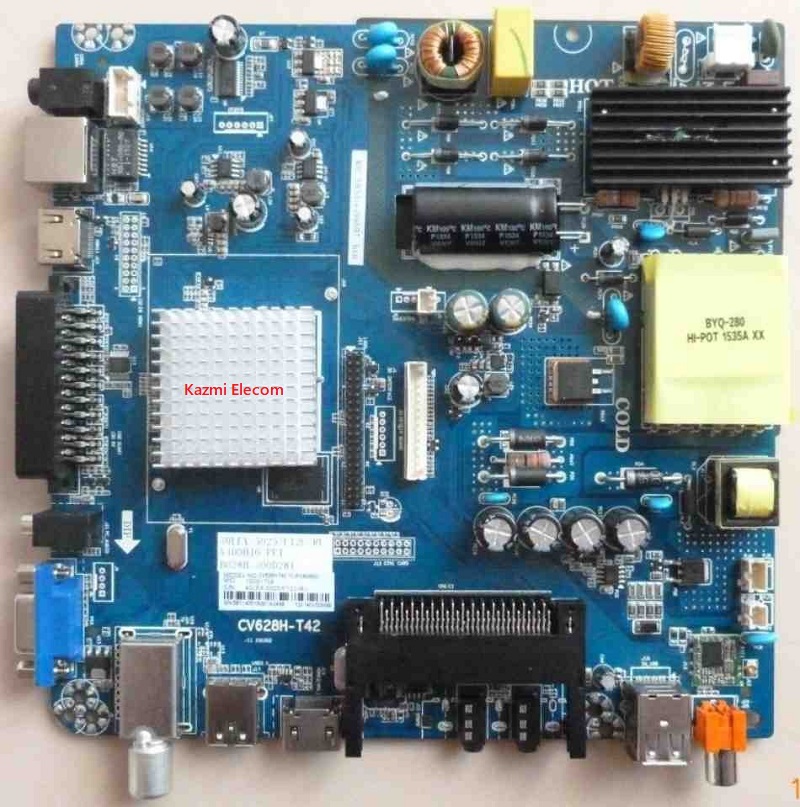

CV628H-T42 Smart TV Board

CV628H-T42 is a Full HD (1080P) three-in-one Smart Android LED TV Board that Can support a Digital Tuner. CV628H_T42 has digital tuners of DVB-T / T2 and DVB-C standards that provide reliable reception of analog and digital channels. It has also the availability of wired and wireless Internet access. It has a high-speed USB 3.0 port. CV628H-T42 has multiple HDMI and USB interface Inputs. HDMI interface is responsible for the optimal quality of the video content when interacting with various devices.

Download Here

The VGA connector allows you to use your TV as a monitor, and there are USB2.0 and USB3.0 ports for playing HD video, audio files, and photos from removable media and updating software. It can support 32-65-inch screen panels.

Cv628H-T42_Firmware

General Specifications:

Brand/Mark: Three-in-One Network Smart LED TV Board

Main Board: CV628H-T42

OS: Android 4.4

CPU: Dual Core

Back Light Ratings: 65v-90v 350mA  to 600mA

Ram: 512 Mb DDR

Rom: 4 Gb eMMC

Input Signal: DVB-T, DVB-T2, DVB-C

Inputs: AV, Component, VGA, HDMI x2, USB x3, Ethernet (RJ-45), Wi-Fi 802.11n, Miracast (optional)

Resolution: up to 1920×1080

Audio Output: 16 W (2×8 W)

Service Code:

Menu+1147

Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

How to Download:

Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here

How to Load Software:

  1. Transfer the required resolution file into the Empty FAT32 USB Disk
  2. Plugin the U-Disk into USB interface on Main Board
  3. Keep Pressing the Power/Standby button and Switch ON the Power
  4. Wait until the led light starts flashing, then release the power button
  5. Note: USB file must be the name of “CtvUpgrade.bin”

CV628H-T42 firmware for free download:

Kazmi-Elecom

S.NO.BOARD/DESCRIPTIONDOWNLOAD LINK
1CV628H-T42_1366x768_Panel_CHIMEI INNOLUX V320BJ6-Q01_USB.part1Download
CV628H-T42_1366x768_Panel_CHIMEI INNOLUX V320BJ6-Q01_USB.part2Download
CV628H-T42_1366x768_Panel_CHIMEI INNOLUX V320BJ6-Q01_USB.part3Download
CV628H-T42_1366x768_Panel_CHIMEI INNOLUX V320BJ6-Q01_USB.part4Download
CV628H-T42_1366x768_Panel_CHIMEI INNOLUX V320BJ6-Q01_USB.part5Download
2CV628H-T42_1920x1080_Panel_Samsung-LSC480HN08_USB.part1Download
CV628H-T42_1920x1080_Panel_Samsung-LSC480HN08_USB.part2Download
CV628H-T42_1920x1080_Panel_Samsung-LSC480HN08_USB.part3Download
CV628H-T42_1920x1080_Panel_Samsung-LSC480HN08_USB.part4Download
CV628H-T42_1920x1080_Panel_Samsung-LSC480HN08_USB.part5Download
3CV628H-T42_BBK_32LEX-5007_USB.part1Download
CV628H-T42_BBK_32LEX-5007_USB.part2Download
CV628H-T42_BBK_32LEX-5007_USB.part3Download
CV628H-T42_BBK_32LEX-5007_USB.part4Download
CV628H-T42_BBK_32LEX-5007_USB.part5Download
4CV628H-T42_BBK_32LEX-5035_USB.part1Download
CV628H-T42_BBK_32LEX-5035_USB.part2Download
CV628H-T42_BBK_32LEX-5035_USB.part3Download
CV628H-T42_BBK_32LEX-5035_USB.part4Download
CV628H-T42_BBK_32LEX-5035_USB.part5Download
5CV628H-T42_BBK_40LEX-5031_USB.part1Download
CV628H-T42_BBK_40LEX-5031_USB.part2Download
CV628H-T42_BBK_40LEX-5031_USB.part3Download
CV628H-T42_BBK_40LEX-5031_USB.part4Download
CV628H-T42_BBK_40LEX-5031_USB.part5Download
6CV628H-T42_BBK_42LEX-5026_USB.part1Download
CV628H-T42_BBK_42LEX-5026_USB.part2Download
CV628H-T42_BBK_42LEX-5026_USB.part3Download
CV628H-T42_BBK_42LEX-5026_USB.part4Download
CV628H-T42_BBK_42LEX-5026_USB.part5Download
7CV628H-T42_BBK_50LEX-5022_USB.part1Download
CV628H-T42_BBK_50LEX-5022_USB.part2Download
CV628H-T42_BBK_50LEX-5022_USB.part3Download
CV628H-T42_BBK_50LEX-5022_USB.part4Download
CV628H-T42_BBK_50LEX-5022_USB.part5Download
8CV628H-T42_BBK_55LEX-5022_USB.part1Download
CV628H-T42_BBK_55LEX-5022_USB.part2Download
CV628H-T42_BBK_55LEX-5022_USB.part3Download
CV628H-T42_BBK_55LEX-5022_USB.part4Download
CV628H-T42_BBK_55LEX-5022_USB.part5Download
9CV628H-T42_BBK_65LEX-5039_USB.part1Download
CV628H-T42_BBK_65LEX-5039_USB.part2Download
CV628H-T42_BBK_65LEX-5039_USB.part3Download
CV628H-T42_BBK_65LEX-5039_USB.part4Download
CV628H-T42_BBK_65LEX-5039_USB.part5Download
10CV628H-T42_BBK_40LEX-5025_W25Q16Download
11CV628H-T42_ERGO-LE32CT2500_W25Q16Download
12CV628H-T42_ELEKTA-ELED40-SMART_W25Q16Download
13CV628H-T42_1366x768_Venus_USB.part1Download
CV628H-T42_1366x768_Venus_USB.part2Download
CV628H-T42_1366x768_Venus_USB.part3Download
CV628H-T42_1366x768_Venus_USB.part4Download
CV628H-T42_1366x768_Venus_USB.part5Download
14CV628H-T42_1920x1080_Elenberg_USB.part1Download
CV628H-T42_1920x1080_Elenberg_USB.part2Download
CV628H-T42_1920x1080_Elenberg_USB.part3Download
CV628H-T42_1920x1080_Elenberg_USB.part4Download
CV628H-T42_1920x1080_Elenberg_USB.part5Download
15CV628H-T42_1366x768_Stream_Morocco.part1Download
CV628H-T42_1366x768_Stream_Morocco.part2Download
CV628H-T42_1366x768_Stream_Morocco.part3Download
CV628H-T42_1366x768_Stream_Morocco.part4Download
CV628H-T42_1366x768_Stream_Morocco.part5Download
16CV628H-T42_1366x768_AKAI AKTV3222.part1Download
CV628H-T42_1366x768_AKAI AKTV3222.part2Download
CV628H-T42_1366x768_AKAI AKTV3222.part3Download
CV628H-T42_1366x768_AKAI AKTV3222.part4Download
CV628H-T42_1366x768_AKAI AKTV3222.part5Download
17CV628h-T42_1366X768_METZ_EUROPE.part1Download
CV628h-T42_1366X768_METZ_EUROPE.part2Download
CV628h-T42_1366X768_METZ_EUROPE.part3Download
CV628h-T42_1366X768_METZ_EUROPE.part4Download
CV628h-T42_1366X768_METZ_EUROPE.part5Download
18CV628H-T42_1920x1080_ELEKTA_DUBAI.part1Download
CV628H-T42_1920x1080_ELEKTA_DUBAI.part2Download
CV628H-T42_1920x1080_ELEKTA_DUBAI.part3Download
CV628H-T42_1920x1080_ELEKTA_DUBAI.part4Download
CV628H-T42_1920x1080_ELEKTA_DUBAI.part5Download
19CV628H-T42_1920x1080_ERGO LE43CT2500AK.part1Download
CV628H-T42_1920x1080_ERGO LE43CT2500AK.part2Download
CV628H-T42_1920x1080_ERGO LE43CT2500AK.part3Download
CV628H-T42_1920x1080_ERGO LE43CT2500AK.part4Download
CV628H-T42_1920x1080_ERGO LE43CT2500AK.part5Download

For video tutorials, visit “Kazmi Elecom” my YouTube channel.
