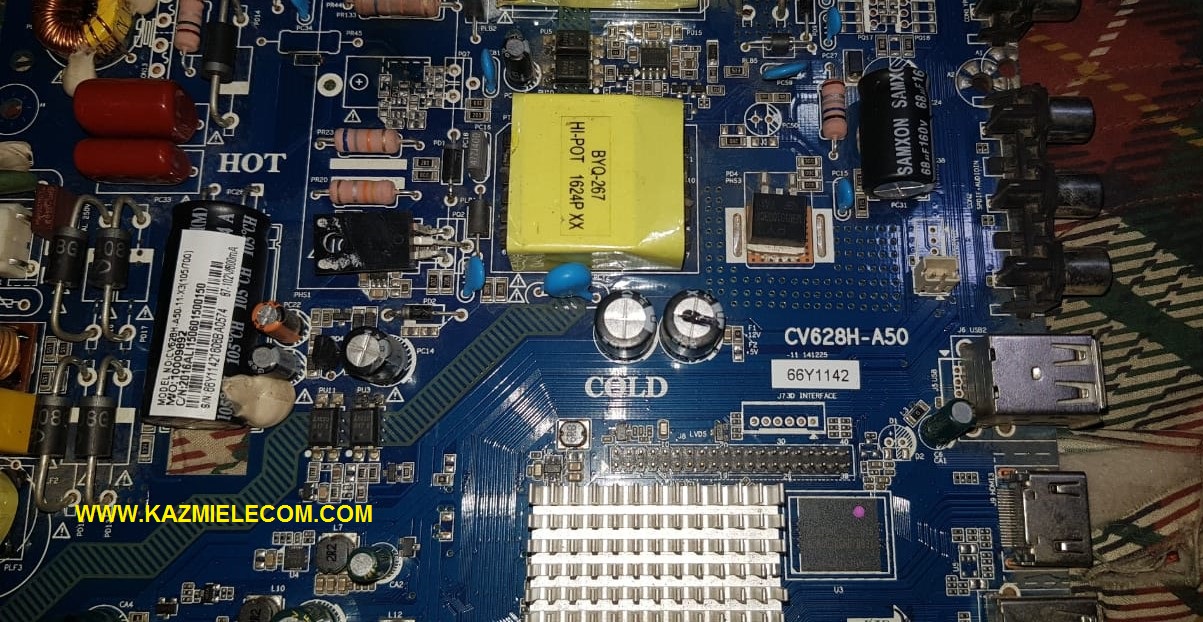

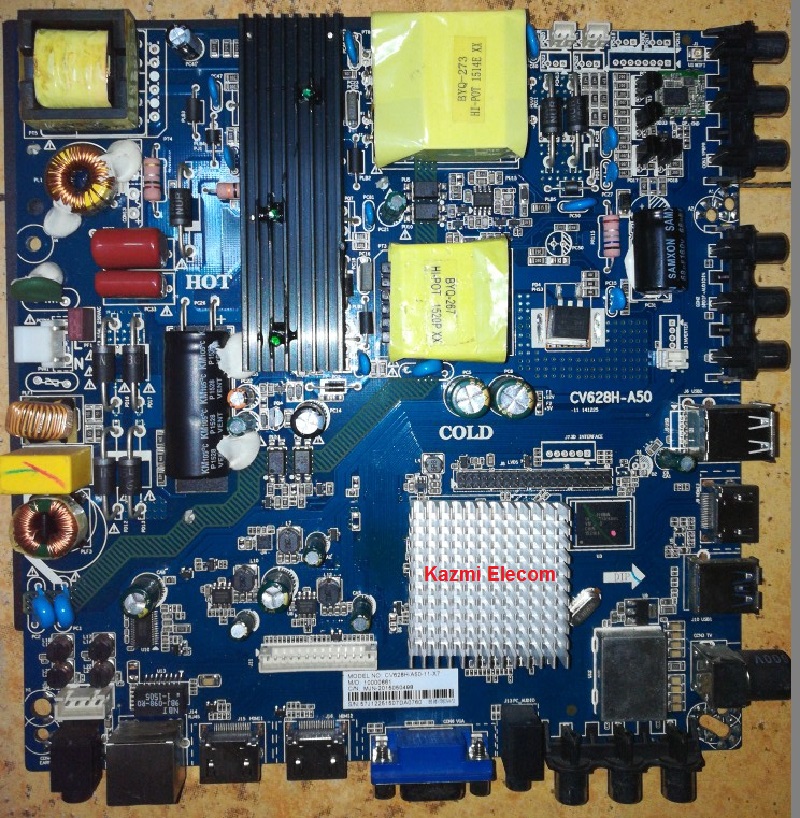

CV628H-A50 UHD 4K Smart Board
CV628H-A50 is a three-in-one 4K UHD smart LED TV Board with a supported resolution of 3840×2160. It Can support Digital Tuner. CV628H_A50 has digital tuners of DVB-T / T2 and DVB-C standards that provide reliable reception of analog and digital channels. It has also the availability of wired and wireless Internet access. It has a high-speed USB 3.0 port.
CV628H-A50 has multiple HDMI and USB interface Inputs. HDMI interface is responsible for the optimal quality of the video content when interacting with various devices. The VGA connector allows you to use your TV as a monitor, and there are USB2.0 and USB3.0 ports for playing HD video, audio files, and photos from removable media and updating software. It can support 32-65-inch screen panels.
General Specifications:
Brand/Mark: Culture View Three-in-One Network Smart UHD LED TV Board
Main Board: CV628H-A50
OS: Android 4.4
CPU: Dual Core
Back Light Ratings: 65v-90v 350mA to 600mA
Ram: 512 Mb DDR
Rom: 4 Gb eMMC
Input Signal: Analog and Digital DVB-T, DVB-T2, DVB-C
Inputs: AV, Component, VGA, HDMI x2, USB x3, Ethernet (RJ-45), Wi-Fi 802.11n, Miracast
Resolution: up to 3840×2160
Audio Output: 16 W (2×8 W)
Service Code:
Menu+1147
Note: The following firmware is a USB Bootable File. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
How to Install:
- Transfer the required resolution file into the Empty FAT32 USB Disk
- Plugin the U-Disk into USB interface on Main Board
- Keep Pressing the Power/Standby button and Switch ON the Power
- Wait until the red light starts flashing, then release the power button
- Note: USB file must be the name of “CtvUpgrade.bin”
CV628H-A50 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV628H-A50_1920x1080_Sony_USB.part1 | Download |
| CV628H-A50_1920x1080_Sony_USB.part2 | Download | |
| CV628H-A50_1920x1080_Sony_USB.part3 | Download | |
| CV628H-A50_1920x1080_Sony_USB.part4 | Download | |
| CV628H-A50_1920x1080_Sony_USB.part5 | Download | |
| 2 | CV628H-A50_3840x2160_Sony_USB.part1 | Download |
| CV628H-A50_3840x2160_Sony_USB.part2 | Download | |
| CV628H-A50_3840x2160_Sony_USB.part3 | Download | |
| CV628H-A50_3840x2160_Sony_USB.part4 | Download | |
| CV628H-A50_3840x2160_Sony_USB.part5 | Download | |
| 3 | CV628H-A50_1920x1080_Samsung_USB.part1 | Download |
| CV628H-A50_1920x1080_Samsung_USB.part2 | Download | |
| CV628H-A50_1920x1080_Samsung_USB.part3 | Download | |
| CV628H-A50_1920x1080_Samsung_USB.part4 | Download | |
| CV628H-A50_1920x1080_Samsung_USB.part5 | Download | |
| 4 | CV628H-A50_1920x1080_LC490DUY-SHP1_USB.part1 | Download |
| CV628H-A50_1920x1080_LC490DUY-SHP1_USB.part2 | Download | |
| CV628H-A50_1920x1080_LC490DUY-SHP1_USB.part3 | Download | |
| CV628H-A50_1920x1080_LC490DUY-SHP1_USB.part4 | Download | |
| CV628H-A50_1920x1080_LC490DUY-SHP1_USB.part5 | Download | |
| 5 | CV628H-A50_CMO216_SVN2823_Mboot2823_USB.part1 | Download |
| CV628H-A50_CMO216_SVN2823_Mboot2823_USB.part2 | Download | |
| CV628H-A50_CMO216_SVN2823_Mboot2823_USB.part3 | Download | |
| CV628H-A50_CMO216_SVN2823_Mboot2823_USB.part4 | Download | |
| CV628H-A50_CMO216_SVN2823_Mboot2823_USB.part5 | Download | |
| 6 | CV628H-A50_1920x1080_FHD_USB.part1 | Download |
| CV628H-A50_1920x1080_FHD_USB.part2 | Download | |
| CV628H-A50_1920x1080_FHD_USB.part3 | Download | |
| CV628H-A50_1920x1080_FHD_USB.part4 | Download | |
| CV628H-A50_1920x1080_FHD_USB.part5 | Download | |
| 7 | CV628H-A50_1920x1080_WELCOME_India.part1 | Download |
| CV628H-A50_1920x1080_WELCOME_India.part2 | Download | |
| CV628H-A50_1920x1080_WELCOME_India.part3 | Download | |
| CV628H-A50_1920x1080_WELCOME_India.part4 | Download | |
| CV628H-A50_1920x1080_WELCOME_India.part5 | Download |
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
Firmware Name:
Weiyue-Pakistan-20160330-3-2016ALI070401550200-628H-A50-FHD55-SONY-600MA-20160412-1303
weiyue-Pakistan-20160308-6-2016ZIQ050404500120-628H-A50-T500QVN02-0-600MA-Sony-20160419-1007
weiyue-20151223-14-2016ALI020102500160-628H-A50-inch60-600MA-SAMSUNG-201512292000
weiyue-Pakistan-20160220-3-2016ZIQ030301490200-628H-A50-LC490DUY-SHP1-600MA-SS-20160413-1119
SG_ANDROID_CV628H-A50_CMO216_SVN2823_Mboot2823_201507091014
salm sair gi kya hal ha ao ka sir plz help cv338h-t50 ki sab files ma earor ha is ka hela ha plz help im wait 4 ans
w.salam dear issue kia hy kis chez ka eeror hy apne yeh to bataya he nai. aksar winrar se unzip nai hoti to 7zip use kar len
Hello sir
Mary pass 52 inch screen hai software ka maslaa tha wo kar dia laiken jo software mai ny ke hai uss my picture ultee ah rahi hai…..
Sir mirror software chahea.
CV628h-a50.
1920×1080 fhd
service menu se seedha kar len
Aslamualikum sir,cv628H.A50 main baz parts mukhtalif MB main hain jo unzip nhe ho raheen .winrar aur 7zip dono main eeror aa rha hy .ab pta nhe sir keya waja ho sakti hy
Dear ap parts mention kar den. me check kar leta hon
sir number 1,3 k parts theek hain baqi sub main eeror ata hy
dobara upload kiey hen
Helo mere paas noble skiodo smart fhd 50 incn ka tv hai. Us par Cv628H-50 FHD LIKHA HAI. JO CHIPAK CHIPAK KAR CHALATA HAI. USKE LIA SOFTWER dijiye
Abhaar ke saath vinati karataa hi.
factory reset kar len cache clear ho jye gi kuch fast ho sakta hy otherwise no solution. board change karna pare ga
Thank you
Hi, Thank yo ufor your efforts, I am looking for CV628H-A50 SAMSUNG 55″. Nothing worked for me from above.
Thank you
Hi, your first firmware worked on my tv as that is for 55” sony. But I have samsung so remote control didn’t work. Then I tried samsung one, on that remote and functions worked fine but graphics are no there as it seems is for 60” tv.
So please can you provide me for samsung 55” and also my panel is 3d smart. And if possible try to make light without any boatloads so we can install whatever we need later as you know these tv are not capable of these stuff altogether.
I shall be grateful you man.
sorry not available in 3d
AoA.sir main nay 1920*1080 download kia hai par extrect main issue hai
download all parts then extract anyone
CV628H-A50_1920x1080_Samsung_USB.part5 file corrupt he
Noted
CV628H-A50\CV628H-A50_1920x1080_Samsung_USB\CV628H-A50_1920x1080_Samsung_USB.part5.rar: Unexpected end of archive
ye file CV628H-A50_1920x1080_Samsung_USB.part5 error he
pls. upload again
OK
