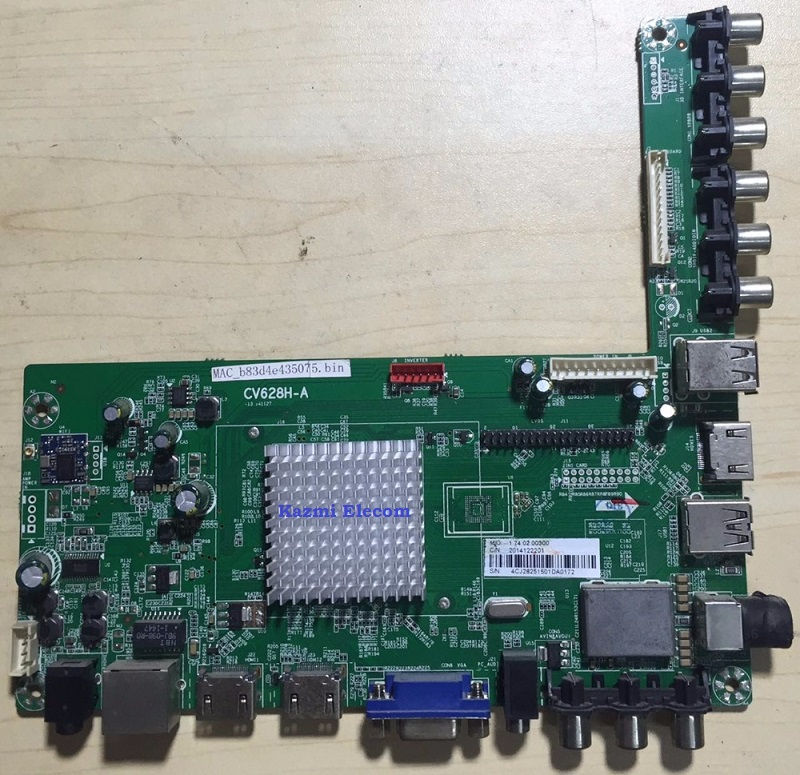

CV628H-A Firmware
CV628H-A is a 4K UHD Smart LED TV Board with a supported resolution of 3840×2160. It Can support Digital Tuner. CV628H_A has digital tuners of DVB-T / T2 and DVB-C standards provide reliable reception of analog and digital channels. It has also the availability of wired and wireless Internet access. It has a high-speed USB3.0 port.
CV628H-A has multiple HDMI and USB interface Inputs. HDMI interface is responsible for the optimal quality of the video content when interacting with various devices. The VGA connector allows you to use your TV as a monitor, and there are USB2.0 and USB3.0 ports for playing HD video, audio files, and photos from removable media and updating software. It can support 32-65 inch screen panels. CV628H-A is not three in one (Combo) board so, the external power supply module and inverter board will be required for a complete set.
General Specifications:
Brand/Mark: Culture View Network Smart UHD LED TV Board
Main Board: CV628H-A
OS: Android 4.4
CPU: Dual Core
Ram: 1 Gb DDR
Rom: 8 Gb eMMC
Input Signal: Analog and Digital DVB-T, DVB-T2, DVB-C
Inputs: AV, Component, VGA, HDMI x2, USB x3, Ethernet (RJ-45), Wi-Fi 802.11n, Miracast
Resolution: up to 3840×2160
Audio Output: 16 W (2×8 W)
Service Code:
Menu+1147
Note: The following given firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
How to Install:
- Transfer the required resolution file into the Empty FAT32 USB Disk
- Plugin the U-Disk into USB interface on Main Board
- Keep Pressing the Power/Standby button and Switch ON the Power
- Wait until the red light starts flashing, then release the power button
- Note: USB file must be the name of “CtvUpgrade.bin”
Here are below some CV628H-A firmware for free download:
| S.No. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV628H-A_1920x1080_LLC-DUBAI.part1 | Download |
| CV628H-A_1920x1080_LLC-DUBAI.part2 | Download | |
| CV628H-A_1920x1080_LLC-DUBAI.part3 | Download | |
| CV628H-A_1920x1080_LLC-DUBAI.part4 | Download | |
| CV628H-A_1920x1080_LLC-DUBAI.part5 | Download | |
| 2 | CV628H-A_3840x2160_AUOT430QVN01.0_Sony.part1 | Download |
| CV628H-A_3840x2160_AUOT430QVN01.0_Sony.part2 | Download | |
| CV628H-A_3840x2160_AUOT430QVN01.0_Sony.part3 | Download | |
| CV628H-A_3840x2160_AUOT430QVN01.0_Sony.part4 | Download | |
| CV628H-A_3840x2160_AUOT430QVN01.0_Sony.part5 | Download | |
| 3 | CV628H-A_3840x2160_HV550QU2_LLC-Lebanon.part1 | Download |
| CV628H-A_3840x2160_HV550QU2_LLC-Lebanon.part2 | Download | |
| CV628H-A_3840x2160_HV550QU2_LLC-Lebanon.part3 | Download | |
| CV628H-A_3840x2160_HV550QU2_LLC-Lebanon.part4 | Download | |
| CV628H-A_3840x2160_HV550QU2_LLC-Lebanon.part5 | Download | |
| 4 | CV628H-A_3840x2160_V500DK2-QS1_Lebanon.part1 | Download |
| CV628H-A_3840x2160_V500DK2-QS1_Lebanon.part2 | Download | |
| CV628H-A_3840x2160_V500DK2-QS1_Lebanon.part3 | Download | |
| CV628H-A_3840x2160_V500DK2-QS1_Lebanon.part4 | Download | |
| CV628H-A_3840x2160_V500DK2-QS1_Lebanon.part5 | Download | |
| 5 | CV628H-A_1920x1080_Unionaire.part1 | Download |
| CV628H-A_1920x1080_Unionaire.part2 | Download | |
| CV628H-A_1920x1080_Unionaire.part3 | Download | |
| CV628H-A_1920x1080_Unionaire.part4 | Download | |
| CV628H-A_1920x1080_Unionaire.part5 | Download | |
| 6 | CV628H-A_1366x768_Tiger Star.part1 | Download |
| CV628H-A_1366x768_Tiger Star.part2 | Download | |
| CV628H-A_1366x768_Tiger Star.part3 | Download | |
| CV628H-A_1366x768_Tiger Star.part4 | Download | |
| CV628H-A_1366x768_Tiger Star.part5 | Download | |
| 7 | CV628H-A_UnionAir 50UN-SM628_Firmware.part1 | Download |
| CV628H-A_UnionAir 50UN-SM628_Firmware.part2 | Download | |
| CV628H-A_UnionAir 50UN-SM628_Firmware.part3 | Download | |
| CV628H-A_UnionAir 50UN-SM628_Firmware.part4 | Download | |
| CV628H-A_UnionAir 50UN-SM628_Firmware.part5 | Download | |
| 8 | CV628H-A_1920x1080_Starsat_LE-5048_Smart.part1 | Download |
| CV628H-A_1920x1080_Starsat_LE-5048_Smart.part2 | Download | |
| CV628H-A_1920x1080_Starsat_LE-5048_Smart.part3 | Download | |
| CV628H-A_1920x1080_Starsat_LE-5048_Smart.part4 | Download | |
| CV628H-A_1920x1080_Starsat_LE-5048_Smart.part5 | Download | |
| 9 | CV628H-A_1920x1080_Starsat-65_Smart.part1 | Download |
| CV628H-A_1920x1080_Starsat-65_Smart.part2 | Download | |
| CV628H-A_1920x1080_Starsat-65_Smart.part3 | Download | |
| CV628H-A_1920x1080_Starsat-65_Smart.part4 | Download | |
| CV628H-A_1920x1080_Starsat-65_Smart.part5 | Download | |
| 10 | CV628H-A_3840x2160_Starsat_LE-5018_Smart.part1 | Download |
| CV628H-A_3840x2160_Starsat_LE-5018_Smart.part2 | Download | |
| CV628H-A_3840x2160_Starsat_LE-5018_Smart.part3 | Download | |
| CV628H-A_3840x2160_Starsat_LE-5018_Smart.part4 | Download | |
| CV628H-A_3840x2160_Starsat_LE-5018_Smart.part5 | Download | |
| 11 | CV628H-A_3840x2160_Starsat_LE-5019_Smart.part1 | Download |
| CV628H-A_3840x2160_Starsat_LE-5019_Smart.part2 | Download | |
| CV628H-A_3840x2160_Starsat_LE-5019_Smart.part3 | Download | |
| CV628H-A_3840x2160_Starsat_LE-5019_Smart.part4 | Download | |
| CV628H-A_3840x2160_Starsat_LE-5019_Smart.part5 | Download | |
| 12 | CV628H-A_1920x1080_512M_4G_Mitashi.part1 | Download |
| CV628H-A_1920x1080_512M_4G_Mitashi.part2 | Download | |
| CV628H-A_1920x1080_512M_4G_Mitashi.part3 | Download | |
| CV628H-A_1920x1080_512M_4G_Mitashi.part4 | Download | |
| CV628H-A_1920x1080_512M_4G_Mitashi.part5 | Download | |
| 13 | CV628H-A_1920x1080_Samsung_Pakistan.part1 | Download |
| CV628H-A_1920x1080_Samsung_Pakistan.part2 | Download | |
| CV628H-A_1920x1080_Samsung_Pakistan.part3 | Download | |
| CV628H-A_1920x1080_Samsung_Pakistan.part4 | Download | |
| CV628H-A_1920x1080_Samsung_Pakistan.part5 | Download |
Firmware Name:
CV628H_A_1920x1080_LLC-DUBAI\Panel – T500HVN08.2\CV628H-A-T1507-46-T500HVN08.2-LLC-DUBAI_加IP BOX
weiyue-20151121-1-2015SBC021101433000-628H-A13-T430QVN01.0-V001-SS-201512011539
CV628H_A_3840x2160_HV550QU2_LLC-Lebanon\Panel – HV550QU2\CV628H-A-T1507-170-HV550QU2-305-LLC-Lebanon_加IP BOX
CV628H_A_3840x2160_V500DK2-QS1_Lebanon\Panel – V500DK2-QS1\CV628H-A-T1507-169-V500DK2_QS1-LLC-Lebanon_加IP BOX
cv628h-a need emcc pin out
salam kazim bhai .. updae start hoty he error ajata
eurostar smart led
board cv628h-A
modle T1603-515
kindly help..
zaid from saudia
change usb disk
The android motherboard cv628-A operates using OS4.4 can it be upgraded to 9.0 android operating system.
No
PLEASE EMMC PINOUT FOR CV628H-A
https://www.kazmielecom.tech/2019/12/31/led-tv-emmc-pinout.html
Please what version of the CV628H-A can I install on my bluegate 55″ smart tv model; LE-5519. Android version; 4.4.2.
System version; CAIXUN-CV628H_A-LF1V001.
Would appreciate if you could assist. Thanks
what is the current status of TV?
Also tv has lost audio completely. What can I do?
change software
Once again, many thanks for your swift response.
Please, kindly recommend a software I can change to that will be compatible with my Bluegate 55″ model- LE5519
Android- 4.4.2, system version – CAIXON-CV628H-A-LF1V001. I’d be most glad if I could find the software on the website also.
Regards.
No need to change software. Its android version is obsolete. if you want latest android version than change mainboard
Many thanks for your prompt response. If I understand your question sir, the current status is CV628H_A-LF1V001. The tv is working but very laggy when using any internet based app or browser.
reset to factory default
I have reset to factory default severally but the problem still persists. Takes long and sometimes impossible to play any video content from the internet. Cannot even load and play youtube content.
install youtube beta app
https://www.kazmielecom.tech/smart-android-apps/
