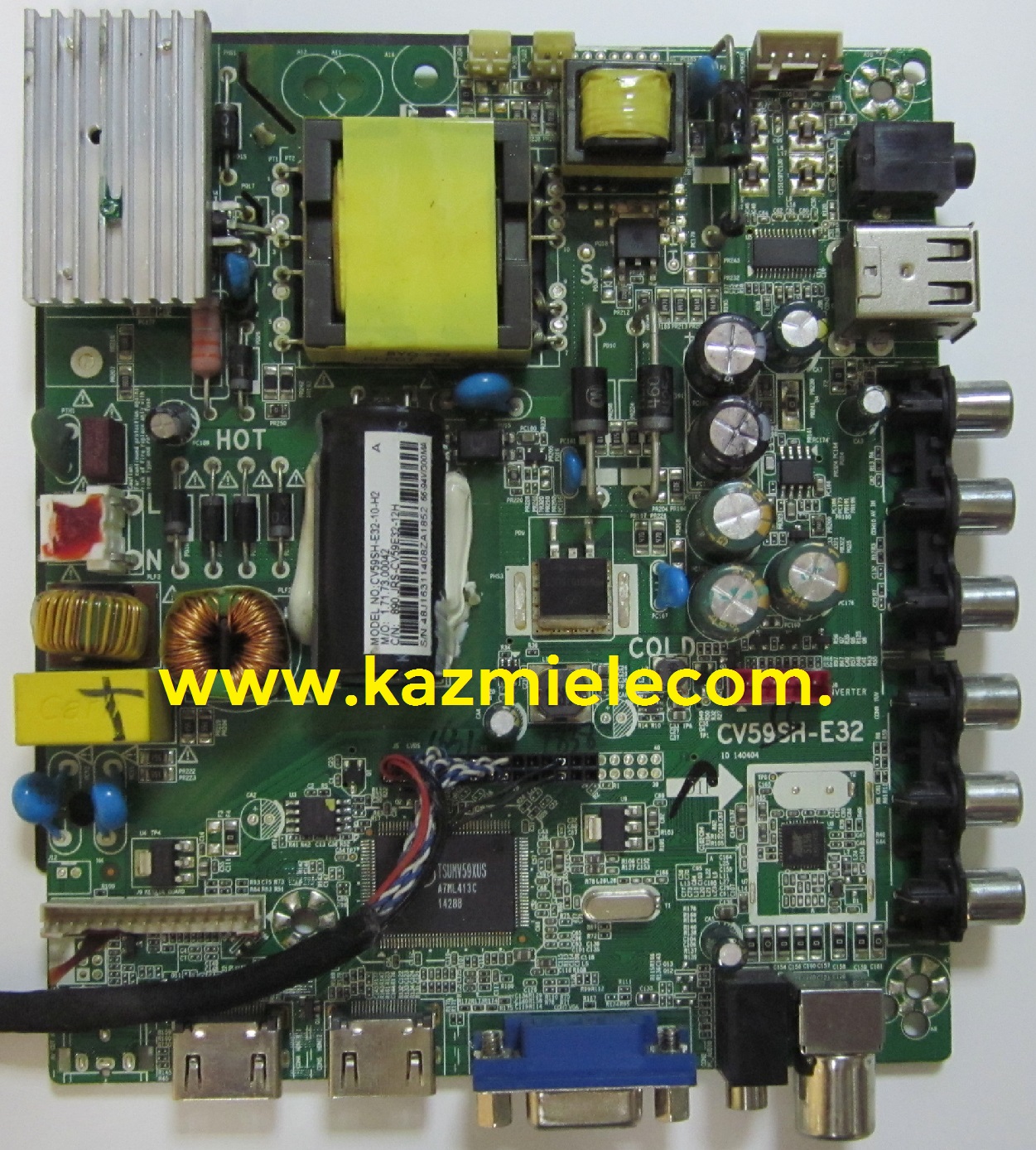

CV59SH-E32 LED TV Board
CV59SH-E32 is a simple ATV Drive Board designed for LCD/LED TVs. This Board is suitable for the Asia Pacific and the Middle East markets. This is a Combo Board and the main power module, LED Backlight Inverter Circuit is builtin into a single PCB of the motherboard. Android platform is also mounted. This has all the features and connectivity interface as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Headphone jack. CV59SH-E32 software files are given for the technician’s support.
General Specifications:
Brand/Mark: Universal HD Three in One Board
Model: CV59SH-E32
Main Chip: TSUMV59XUS
Product: LED TV
LED Backlight: 55~94V 300mA to 600mA
Flash IC: 4Mb
Screen supported: 32-46 inch
Resolution: Up to 1920×1080
Panel Voltage: 12V
Power Input: 220V AC
Service Code:
Menu+1147
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
CV59SH-E32 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV59SH-E32_1366x768_CAMPOMATIC_DUMP | Download |
| 2 | CV59SH-E32_1366x768_DEXP_DUMP | Download |
| 3 | CV59SH-E32_1366x768_HDTV_DUMP | Download |
| 4 | CV59SH-E32_1366x768_IKON_DUMP | Download |
| 5 | CV59SH-E32_1366x768_INTEX_DUMP | Download |
| 6 | CV59SH-E32_1366x768_KORYO_DUMP | Download |
| 7 | CV59SH-E32_1366x768_MICROMAX_DUMP | Download |
| 8 | CV59SH-E32_1366x768_NORDSTAR_DUMP | Download |
| 9 | CV59SH-E32_1366X768_RUBIN_DUMP | Download |
| 10 | CV59SH-E32_1366x768_SAMSUNG_DUMP | Download |
| 11 | CV59SH-E32_1366x768_SAMSUNG-300mA_USB | Download |
| 12 | CV59SH-E32_1366x768_SONY_DUMP | Download |
| 13 | CV59SH-E32_1366x768_T-SERIES_DUMP | Download |
| 14 | CV59SH-E32_1366x768_UNIONTECH_DUMP | Download |
| 15 | CV59SH-E32_1366x768_WORLDTECH_DUMP | Download |
| 16 | CV59SH-E32_1920x1080_AL-FARIS_DUMP | Download |
| 17 | CV59SH-E32_1920x1080_CHANGHONG RUBA-600mA_USB | Download |
| 18 | CV59SH-E32_1920x1080_FUJI_DUMP | Download |
| 19 | CV59SH-E32_1920x1080_MITASHI-600mA_USB | Download |
| 20 | CV59SH-E32_1920x1080_SAMSUNG_DUMP | Download |
| 21 | CV59SH-E32_1920x1080_SAMSUNG-540mA_USB | Download |
| 22 | CV59SH-E32_1920x1080_SONY_DUMP | Download |
| 23 | CV59SH-E32_1920x1080_SONY-540mA_USB | Download |
| 24 | CV59SH-E32_1920x1080_UNIONTECH_DUMP | Download |
