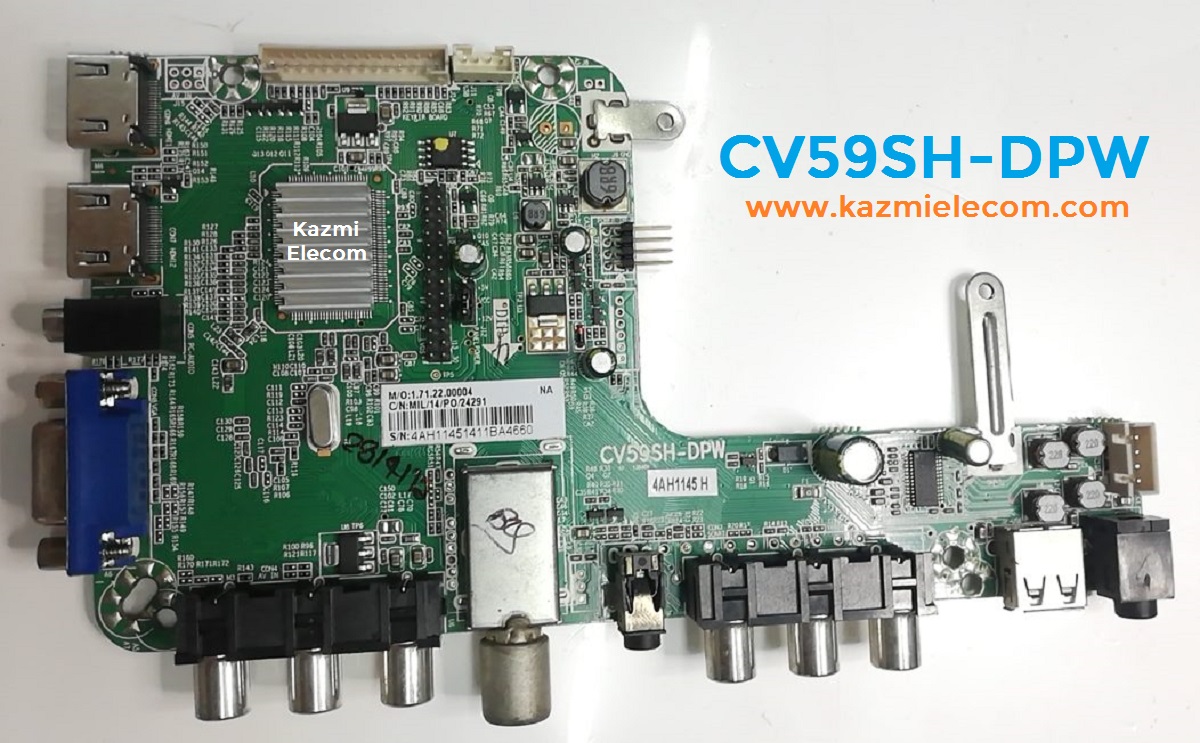

CV59SH-DPW LED TV Board
CV59SH-DPW is a simple ATV Drive Board designed for LCD/LED TVs. This Board is suitable for the Asia Pacific and the Middle East markets. This is not a Combo Board the main power module and LED Backlight Inverter module is required separately while the TV Tuner and Android Chip Circuit are placed into this PCB of the motherboard. This has all the features and connectivity interface as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Headphone jack. CV59SH-DPW software files are given for the technician’s support.
General Specifications:
Brand/Mark: Universal FHD Board with Android Platform
Model: CV59SH-DPW
Main Chip: TSUMV59XUS-Z1
Product: LED TV
LED Backlight: NA
Flash IC: 4Mb
Screen supported: 32-65 inch
Resolution: Up to 1920×1080
Panel Voltage: 12V
Power Input: 220V AC
Service Code:
Menu+1147
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
CV59SH-DPW firmware for free download:
| S.NO. | BOARD/DESCRIPTION | D.LINK.1 | D.LINK.2 |
|---|---|---|---|
| 1 | CV59SH-DPW_1366x768_MICROMAX_DUMP | Download | Download |
| 2 | CV59SH-DPW_1920x1080_MICROMAX_USB | Download | Download |
| 3 | CV59SH-DPW_1920x1080_SAMSUNG_DUMP | Download | Download |
| 4 | CV59SH-DPW_1920x1080_SUOJIA_DUMP | Download | Download |
