CV59SH-CSM39 Software Free Download

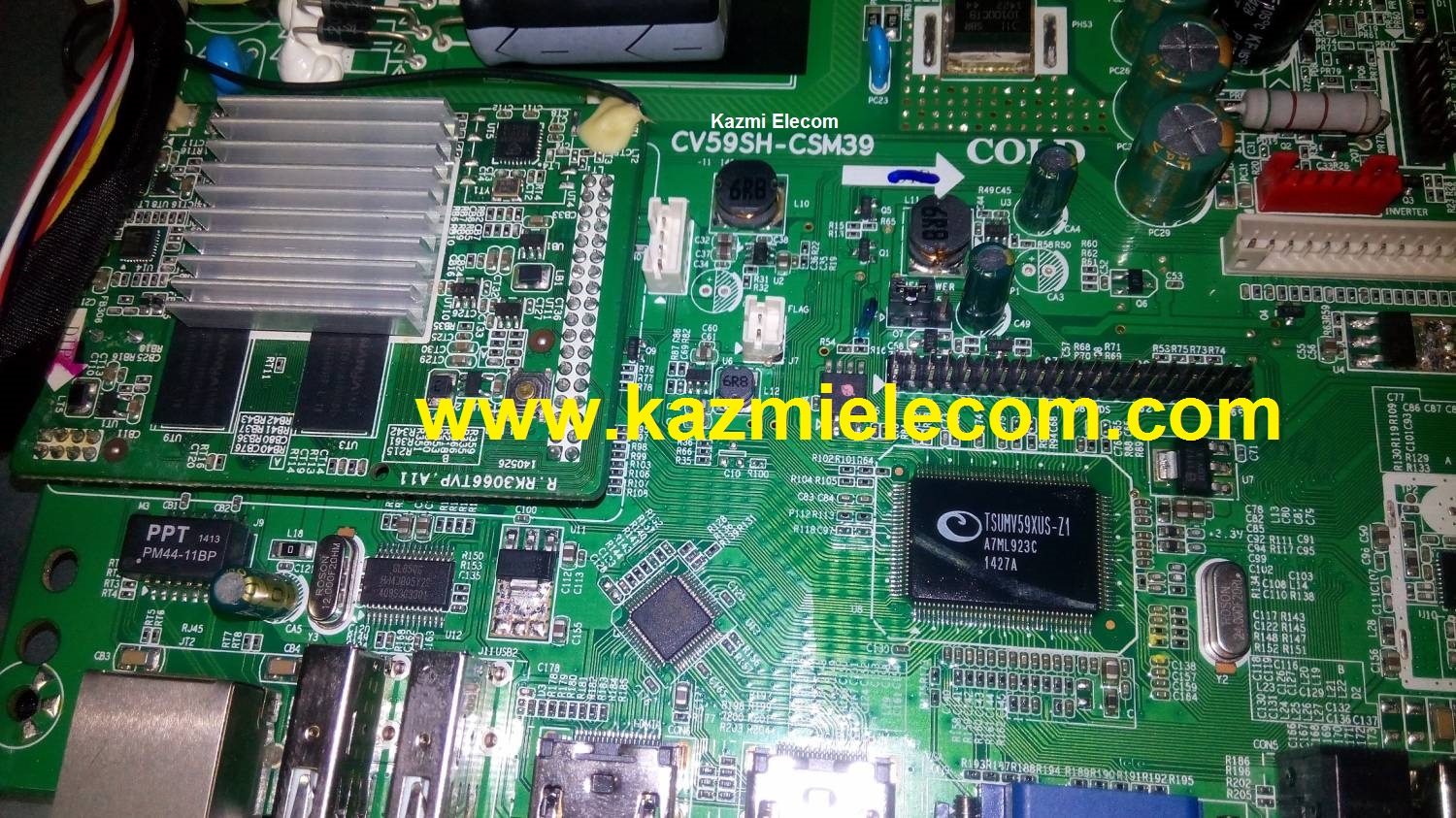

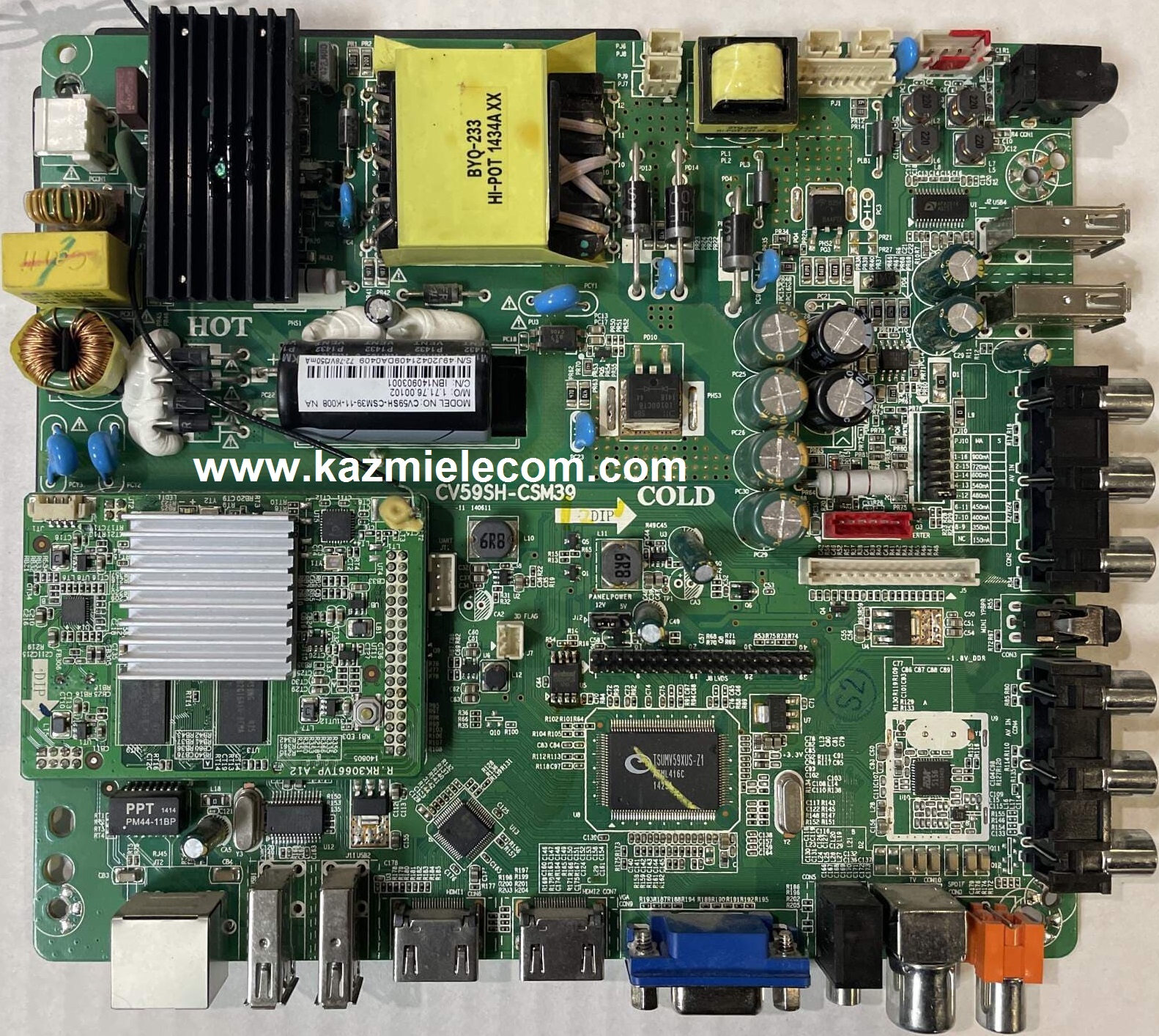

CV59SH-CSM39 LED TV Board

CV59SH-CSM39 is a simple ATV Drive Board designed for LCD/LED TVs. This Board is suitable for the Asia Pacific and the Middle East markets. This is a Combo Board and the main power module, LED Backlight Inverter Circuit is builtin into a single PCB of the motherboard. Android platform is also mounted. This has all the features and connectivity interface as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Headphone jack. CV59SH-CSM39 software files are given for the technician’s support.

General Specifications:

Brand/Mark: Universal HD Three in One Board

Model: CV59SH- CSM39

Main Chip: TSUMV59XUS-Z1

Product: LED TV

LED Backlight: 72-78v 350mA

Flash IC: 4Mb

Screen supported: 26-46 inch

Resolution: Up to 1920×1080

Panel Voltage: 12V

Power Input: 220V AC

Service Code:

Menu+1147

Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here

CV59SH-CSM39 firmware for free download:
