CV59L-K23 Software Free Download

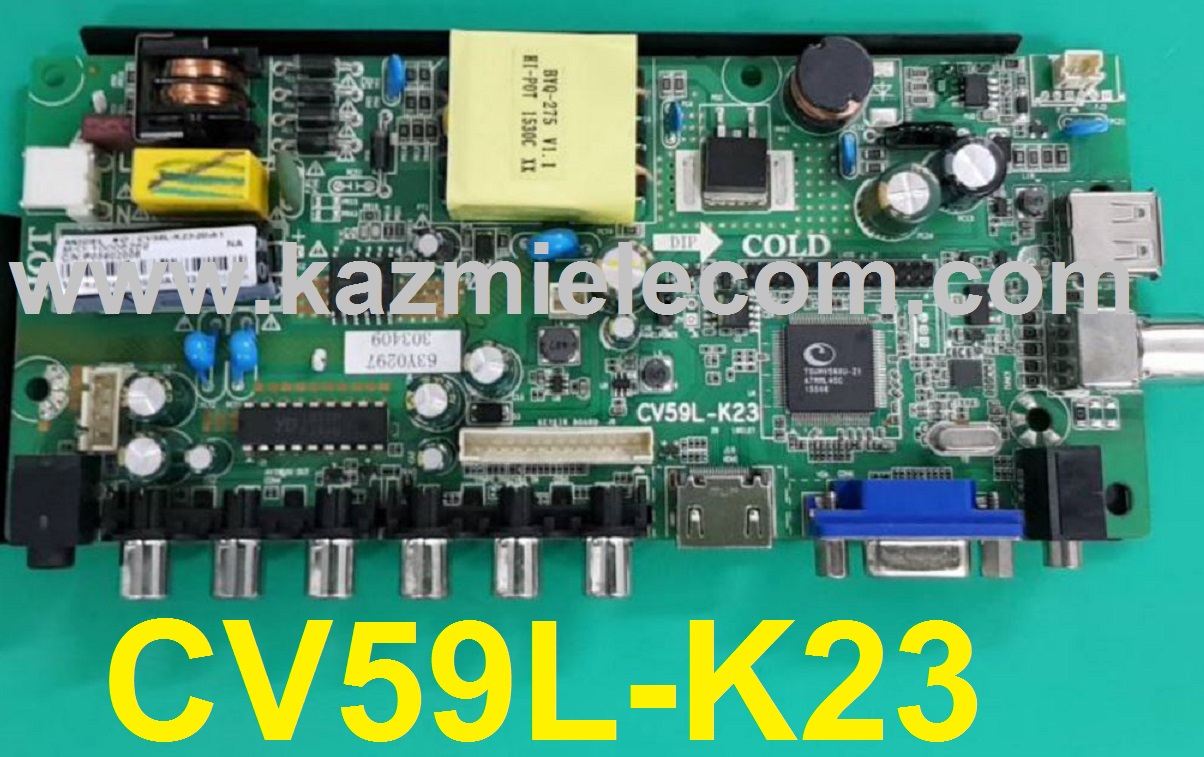

CV59L-K23 LED TV Board

CV59L-K23 is a simple ATV Driver Motherboard designed for LCD/LED TVs. CV59L_K23 board is suitable for the Asia Pacific and the Middle East markets.CV59L.K23 is a Combo Board. The main power module and LED Backlight Inverter Circuit module and ATV Card are builtin into this motherboard. CV59L K23 has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.CV59L-K23 firmware files are given below for the technician’s support.

General Specifications:

Brand/Mark: Universal Board

Model: CV59L_K23

Main Chip: TSUMV59XU/TSUMV59XU-Z1

Product: LED TV

LED Backlight: 18~34v/430mA

Flash IC: 4Mb

Sound Chip: 1517P

Tuner IC: 5158

Screen supported: 18.5-39 inch

Resolution: Up to 1920×1080

Panel Voltage: 5V, 12V

Power Input: 220V AC

Service Code:

Source/Input+2580

Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.

How to Download Firmware Files:

Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

CV59L-K23 firmware for free download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	CV59L-K23_1366x768_FLYBALL	Download
2	CV59L-K23_1366x768_SAST-CHINESE	Download
3	CV59L-K23_1920x1080_GOSONIC	Download
4	CV59L-K23_1920x1080_SATURN	Download
5	CV59L-K23_1366x768_ELENBERG	Download
6	CV59L-K23_1920x1080_ELENBERG	Download
