CV56XH-U32 Firmware Free Download

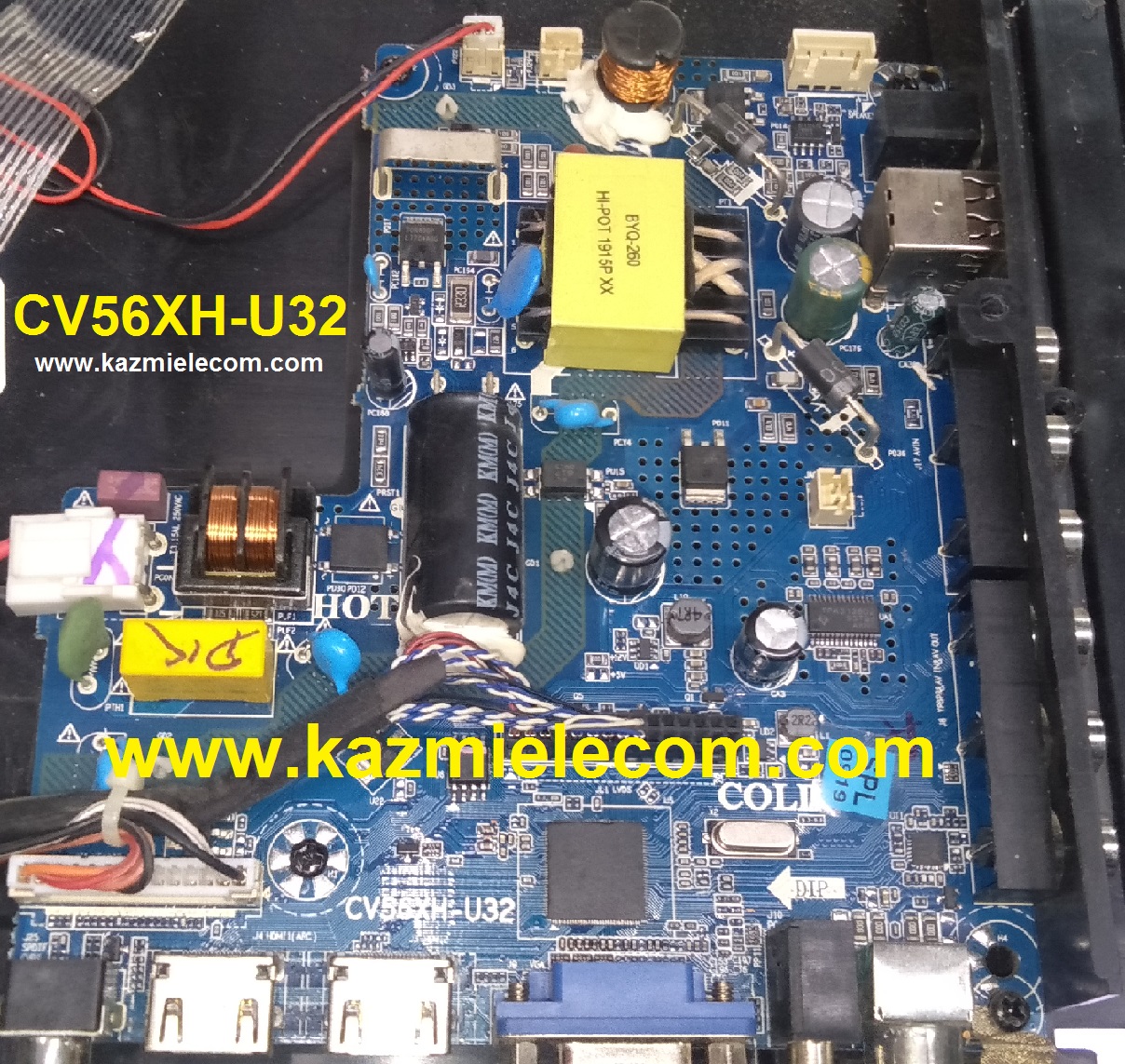

CV56XH-U32 LED TV Board

CV56XH-U32 is a simple ATV Drive Board designed for LCD/LED TVs. This Board is suitable for the Asia Pacific and the Middle East markets. This Combo Board has the integration of the main power module, LED Backlight Inverter Circuit, and ATV Card Also in a single piece of a motherboard. This has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Headphone jack. CV56XH-U32 is compatible with all panel screens of backlight current 480mA.

Cv56Xh-U32

CV56XH board is available in the market with different model names. Some of them are given here below:

  • CV56X H-U32
  • CV56X H-U42
  • CV56X H-U50

General Specifications:

Brand/Mark: Universal HD Three in One Board

Model: CV56XH-U32

Main Chip: TSUMV53RUUL-Z1

Product: LED TV

LED Backlight Capacity: 480mA

LED Backlight: 54-61.2v 35w

Flash IC: 4Mb

Screen supported: 32 inch

Resolution: Up to 1920×1080

Panel Voltage: 12V

Power Input: 220V AC

Tuner: 5156/5158

Mirror Option: Optional

Service Code:

Input 208

Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here

Here are below some CV56XH-U32 firmware for free download:

Kazmi-Elecom

S.NO.BOARD/DESCRIPTIONDOWNLOAD LINK
1CV56XH-U32_1366x768_LG_USBDownload
2CV56XH-U32_1366x768_M90_USBDownload
3CV56XH-U32_1366x768_Samsung_USBDownload
4CV56XH-U32_1366x768_Sony_USBDownload
5CV56XH-U32_1920x1080_480mA_USBDownload
6CV56XH-U32_1920x1080_LG_USBDownload
7CV56XH-U32_1920x1080_M90_USBDownload
8CV56XH-U32_1920x1080_Samsung_USBDownload
9CV56XH-U32_1920x1080_Sony_USBDownload
