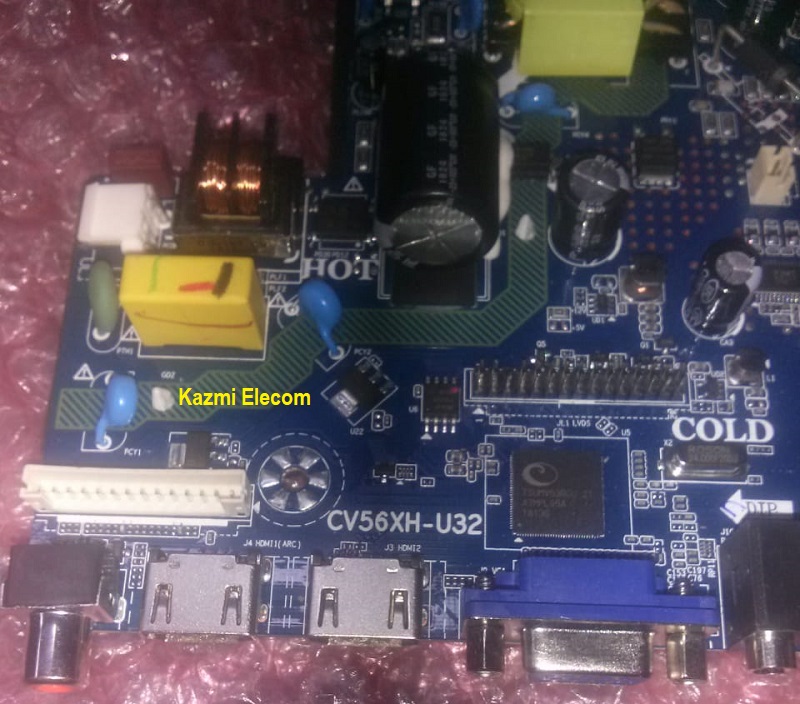

CV56XH-LED TV Main Board
CV56XH is a simple ATV Drive Board designed for LCD/LED TVs. This Board is suitable for the Asia Pacific and the Middle East markets. This is Combo Board has the integration of the main power module, LED Backlight Inverter Circuit, and ATV Card Also in a single piece of a motherboard.
This has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Headphone jack.
CV56X H is available in the market with different model names. Some of them are given here below:
- CV56X H-U32
- CV56X H-U42

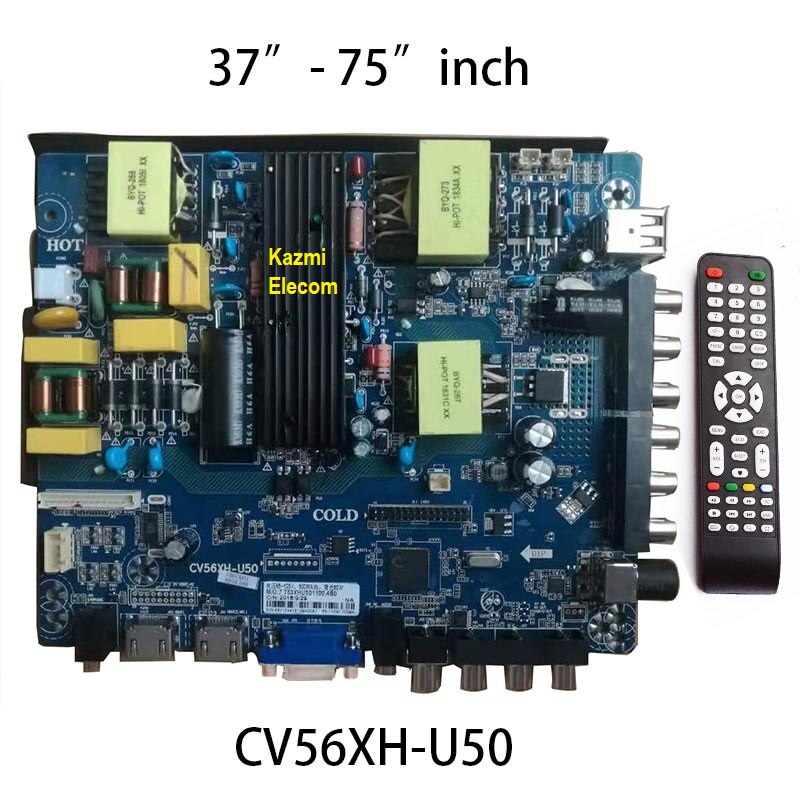

- CV56X H-U50
General Specifications:
Brand/Mark: Universal HD Three in One Board
Model: CV56X H-U32, CV56X H-U42, CV56X H-U50
Main Chip: TSUMV53RUUL-Z1
Product: LED TV
LED Backlight: 35w to 75w
Flash IC: 4Mb
Screen supported: 26-75 inch
Resolution: Up to 1920×1080
Panel Voltage: 12V
Power Input: 220V AC
Service Code:
Input 208
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
CV56XH firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV56XH-U32_USB_Software.part1 | Download |
| CV56XH-U32_USB_Software.part2 | Download | |
| 2 | CV56XH-U42_1366x768_USB | Download |
| CV56XH-U42_1920x1080_USB | Download | |
| 3 | CV56XH-U32_1366x768_LG_USB | Download |
| 4 | CV56XH-U32_1366x768_Samsung_USB | Download |
| 5 | CV56XH-U32_1366x768_Sony_USB | Download |
| 6 | CV56XH-U32_1920x1080_LG_USB | Download |
| 7 | CV56XH-U32_1920x1080_Samsung_USB | Download |
| 8 | CV56XH-U32_1920x1080_Sony_USB | Download |
| 9 | CV56XH-U32_1366x768_M90_USB | Download |
| 10 | CV56XH-U32_1920x1080_M90_USB | Download |
| 11 | CV56XH-U42_1366x768_JOYSON_DUMP | Download |
| 12 | CV56XH-U42_1920x1080_KRIDOR_DUMP | Download |
| 13 | CV56XH-U42_1920x1080_SMART_DUMP | Download |
| 14 | CV56XH-U42_1920x1080_TORNADO_DUMP | Download |
| 15 | CV56XH-U42_1920x1080_AMOI_DUMP | Download |
| 16 | CV56XH-U42_1920x1080_WESTWAY_DUMP | Download |
| 17 | CV56XH-U32_1366x768_HYUNDAI_DUMP | Download |
| 18 | CV56XH-U32_1366x768_IRBIS_DUMP | Download |
| 19 | CV56XH-U32_1366x768_KAON_DUMP | Download |
| 20 | CV56XH-U32_1366x768_KODAK_DUMP | Download |
| 21 | CV56XH-U32_1366x768_SAMSUNG_DUMP | Download |
| 22 | CV56XH-U32_1366x768_SUNTEK_DUMP | Download |
| 23 | CV56XH-U32_1366x768_TEXLAVISION_DUMP | Download |
| 24 | CV56XH-U32_1366x768_THOMSON_DUMP | Download |
software not downloading
cv56xh-u32 please
i replace the links
asalam o laikum bhai jan mere pas same board ka tv he CV56XH-U32 new liya he 2 din phele bs hdmi lagata hu to picture a rahi he per awaz nai thunder bolt type c se laga ker koi hal btaye
AV pe check kren wohan bhe same issue hy to board replace karen
Assalam o alikom Sir g kase hin app Sir ma ne sab Softwer keya hin per service menu nahe arahe hin kya masla hosakta hin app ki jo Softwer hin sab keye phir be nahe arhe plz. Input 208 prss keya phir be nahe araha hin
w.salam check here and try
https://www.kazmielecom.tech/2019/04/08/all-lcd-led-service-menu-code.html
Salaam sir g.cv56xh u32 back laight volt 72 kyse hon gy new card lgaya hy plz rhnomai kr den
video tutorial dekh len youtube pe
AOA KESY HEIN BHAI c56x-u32 IS PAY SAMSUNG KA REMOTE KEST SET HO GA
w.salam dear isme samsung wala software load karna pare ga
Cv56xh-u42 regulation software 1920×1080
which one is cv56xh-u50?
not available
cv56xh.u32 ,first chor k or koi b software download nahi ho raha last me error ata hai.or first walay ko remote nahi lagta koi
sir koi batay mujhe ismay softwear kysay hoga shukriya
servcie code input 208 inactive
https://www.kazmielecom.tech/2019/04/08/all-lcd-led-service-menu-code.html
sir ab ju nae card aa rhe hein U42 wale wo ye software pick ni kr rhe
Good
sir maine cv56xh-u32 Part 1 and part 2 dono download kiye or extract karke pandriv me dal ke TV me dal raha hu firbhi software nahi dal raha
https://www.kazmielecom.tech/how-to-load-firmware/
CV56XH-A50
