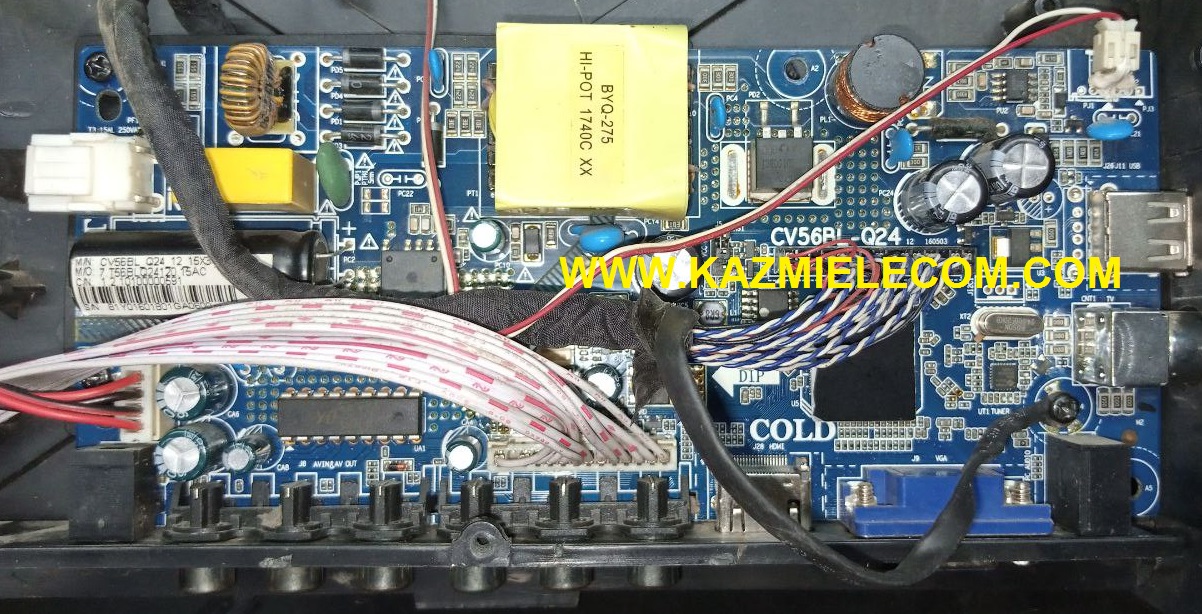

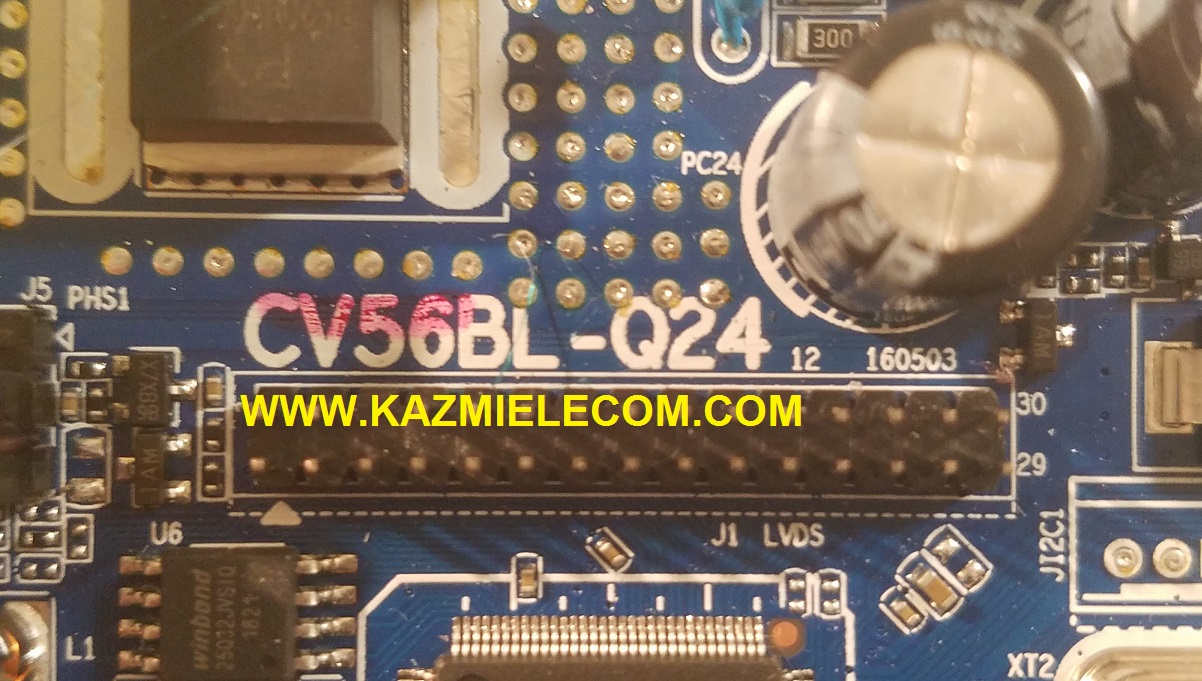

CV56BL-Q24 LED TV Board
CV56BL-Q24 is a simple ATV Universal Driver Motherboard designed for LCD/LED TVs. This Board is suitable for the Asia Pacific and the Middle East markets. CV56BL-Q24 is a combo board that is suitable for many LCD or LED panel screens. CV56BL_Q24 has a built-in power module and LED Backlight driver module with ATV RF Tuner. This has all the features as per the latest requirements and connectivity ports like HDMI input, USB interface, PC input, Component Input, TV, and Headphone jack.
General Specifications:
Brand/Mark: Universal Jumper Board
Model: CV56BL- Q24
Main Chip: TSUMV56RUU-Z1
Product: LED TV
LED Backlight: 300 mA
Flash IC: 4Mb
Sound IC: 1517P
Screen supported: 15-60 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: AC220
Service Code:
Source/Input+2580
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Here are below some CV56BL-Q24 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV56BL-Q24_1366X768_EAIRTEC_DUMP | Download |
| 2 | CV56BL-Q24_1366X768_GITEX_DUMP | Download |
| 3 | CV56BL-Q24_1366X768_PANWOODS_DUMP | Download |
| 4 | CV56BL-Q24_1920X1080_AKAI_DUMP | Download |
| 5 | CV56BL-Q24_1920X1080_GITEX_DUMP | Download |
| 6 | CV56BL-Q24_1920X1080_NAUTICAL_DUMP | Download |
Cv56bl-q24 1600×900
is board me nai mile gi. small jumper board use karen
1600×900
