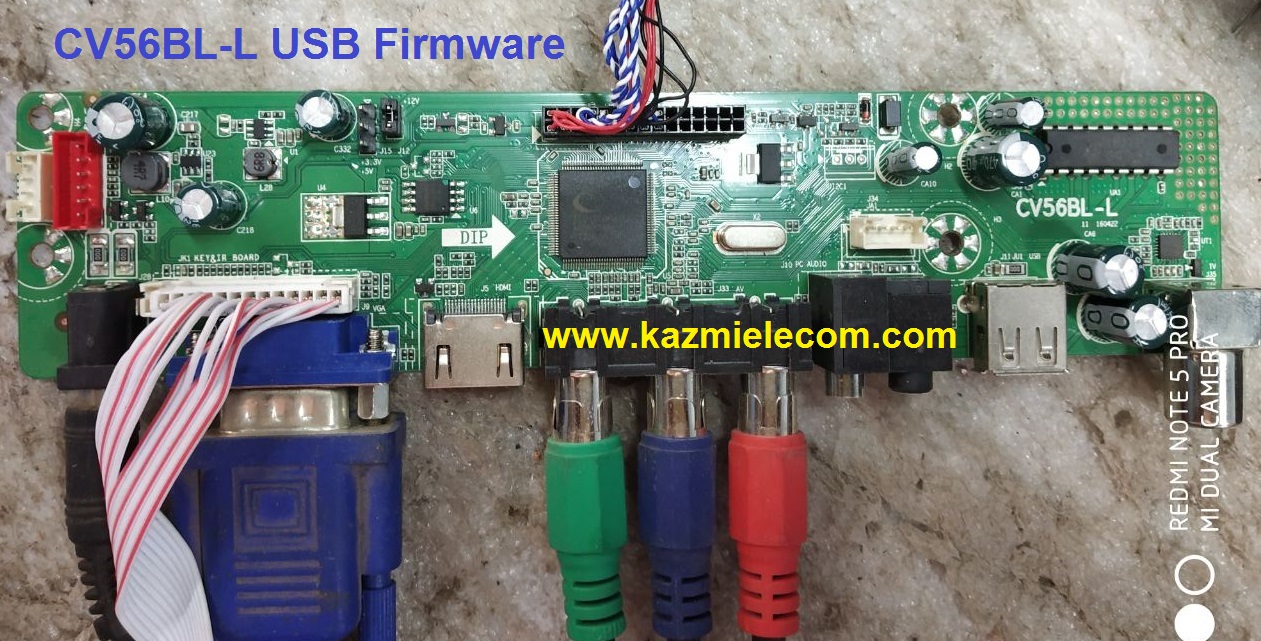

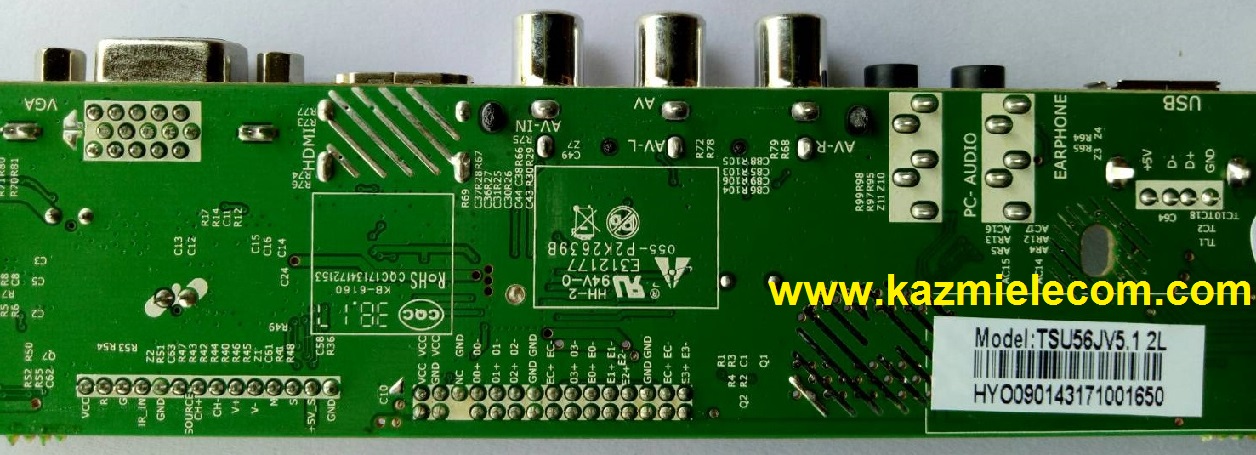

CV56BL-L Universal LCD/LED TV Board
CV56BL-L is a simple ATV Universal Driver Motherboard designed for LCD/LED TVs. This Board is suitable for the Asia Pacific and the Middle East markets. CV56BL-L is a non-combo jumper board that is suitable for many LCD or LED panel screens. CV56BL_L required a separate power module AC or DC and LED Backlight driver module to complete the TV setup. This has all the features as per the latest requirements and connectivity ports like HDMI input, USB interface, PC input, Component Input, TV, and Headphone jack.
General Specifications:
Brand/Mark: Universal Jumper Board
Model: CV56BL- L
Main Chip: TSUMV56RUU-Z1
Product: LED TV
LED Backlight: NA
Flash IC: 4Mb
Sound IC: 1517P
Screen supported: 15-60 inch
Resolution: Up to 1920×1080
Panel Voltage: 3V, 5V, 12V
Power Input: DC 12V
Service Code:
Source/Input+2580
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Here are below some CV56BL-L firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | CV56BL-L_All Resolution | Download |
| 2 | CV56BL-L_1024X600_Firmware_USB | Download |
| 3 | CV56BL-L_1024X768_Firmware_USB | Download |
| 4 | CV56BL-L_1280X720_Firmware_USB | Download |
| 5 | CV56BL-L_1280X768_Firmware_USB | Download |
| 6 | CV56BL-L_1280X800_Firmware_USB | Download |
| 7 | CV56BL-L_1280X1024_Firmware_USB | Download |
| 8 | CV56BL-L_1366X768_Firmware_USB | Download |
| 9 | CV56BL-L_1400X1050_Firmware_USB | Download |
| 10 | CV56BL-L_1440X900_Firmware_USB | Download |
| 11 | CV56BL-L_1600X900_Firmware_USB | Download |
| 12 | CV56BL-L_1600X1200_Firmware_USB | Download |
| 13 | CV56BL-L_1680X1050_Firmware_USB | Download |
| 14 | CV56BL-L_1920X1080_Firmware_USB | Download |
| 15 | CV56BL-L_1920X1200_Firmware_USB | Download |
| 16 | CV56BL-L_1280X1024_Sony_Dump | Download |
